RED DIGITAL
REDVOLT BP
REDVOLT BP
REDVOLT BP
REDVOLT BP
REDVOLT BP
REDVOLT BP

REDVOLT BP

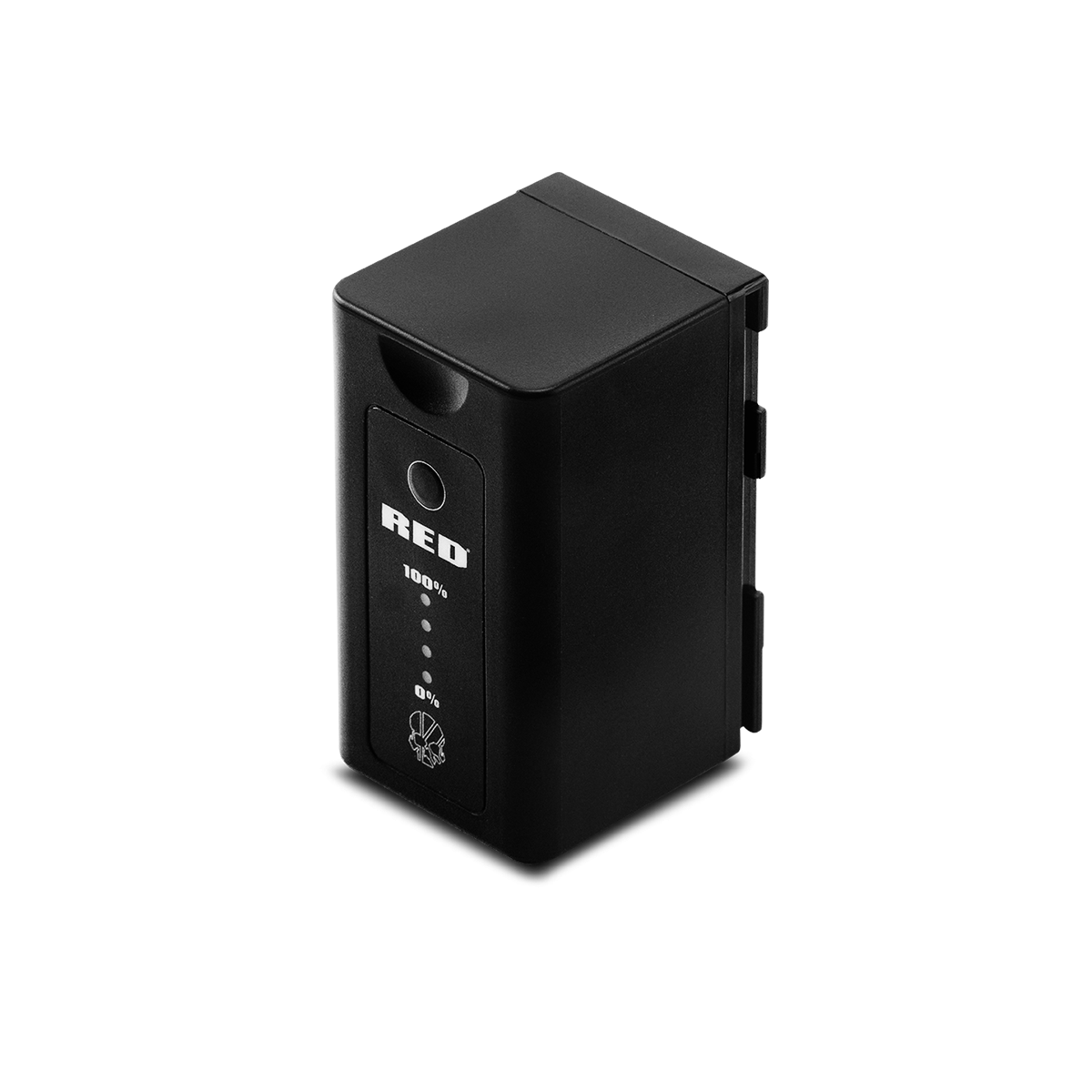

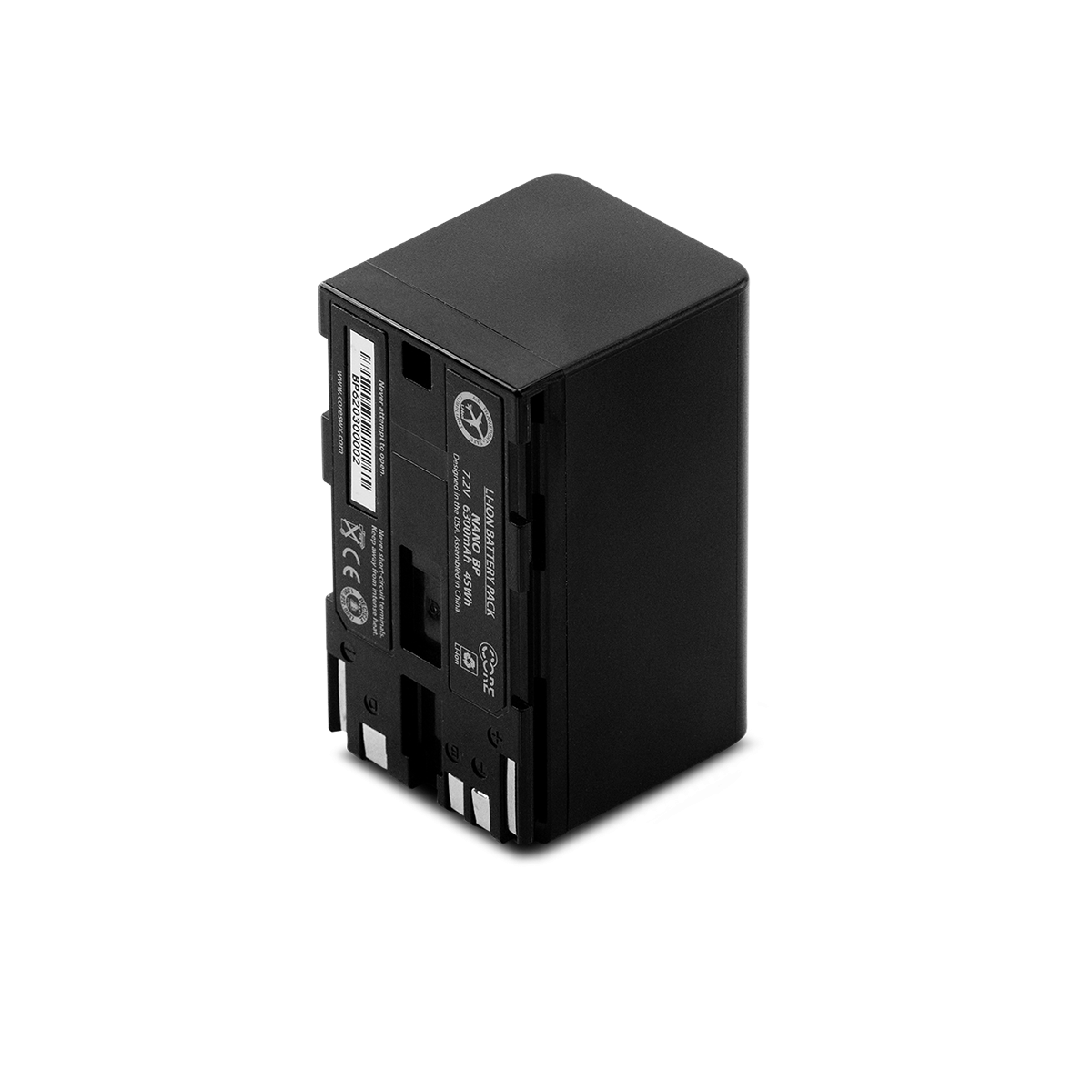

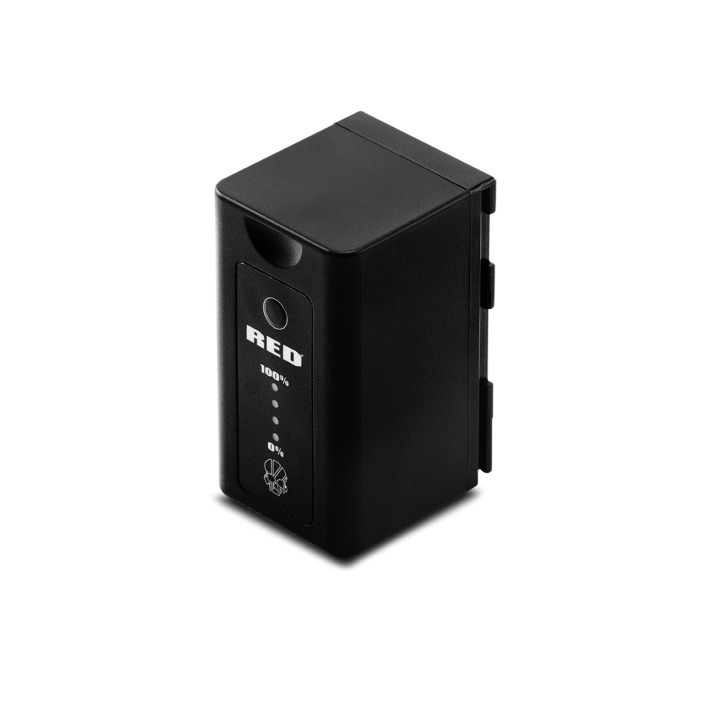

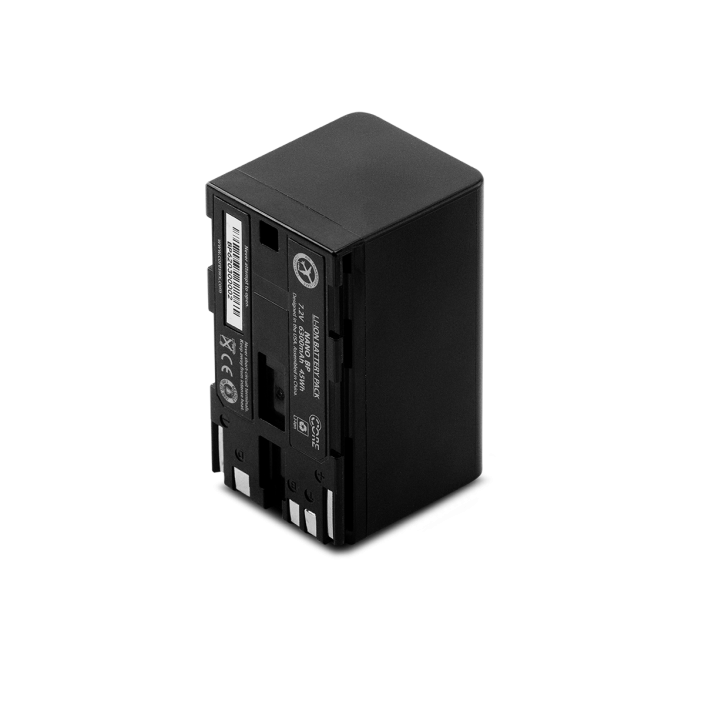

REDVOLT® BP’s provide longer run times (6300mAh) in a familiar compact form factor for your RED KOMODO®.​

Read moreShow less
USD 170.00
IN STOCK
Qty
Enquire Now
Wishlist2
Share
Description

Batteries fully communicate with the KOMODO, allowing for charging from the camera* and provides time remaining information.​

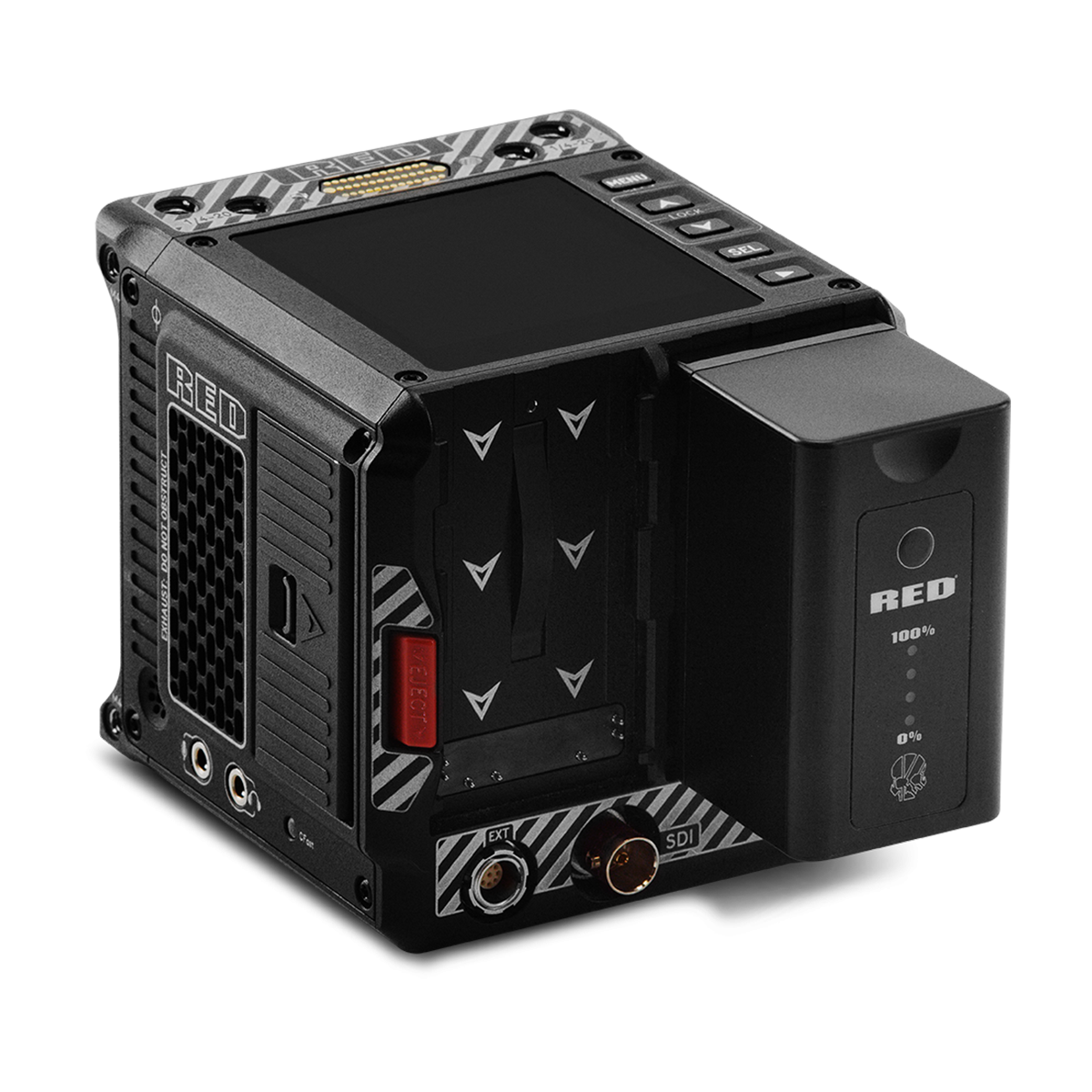

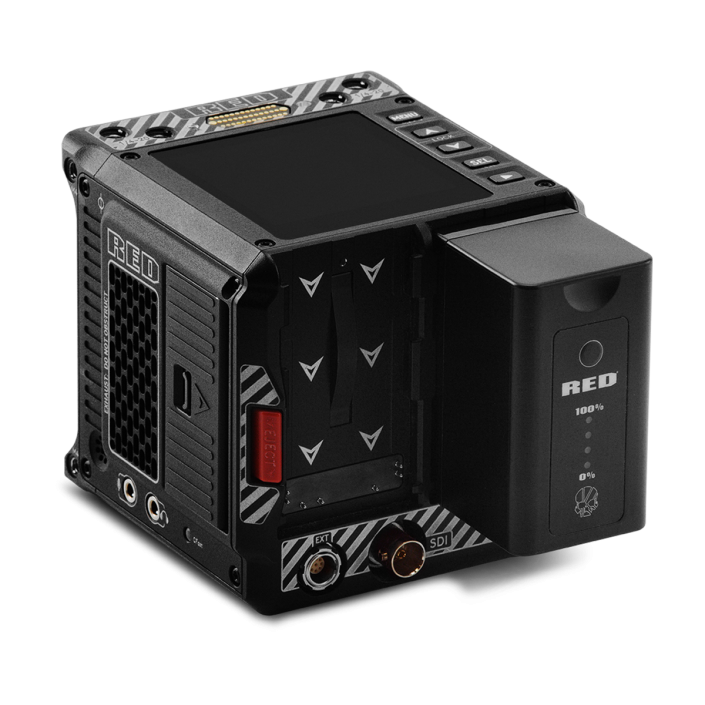

REDVOLT BP batteries can be attached directly to one or both BP slots on the rear of the KOMODO & can be hot-swapped.​

NOTE: REDVOLT® BP was designed in partnership with CORESWX, for issues or troubleshooting, please visit https://www.coreswx.com/support

REDVOLT® BP is not compatible with DSMC®, DSMC2® or RED RANGER® camera systems.



*While turned off & plugged in via the DC-IN​​



            Read moreShow less

















Specifications









        740-0052

















 DIMENSIONS


Depth: 1.71 in. (43.5mm)

Height: 2.78 in. (70.5 mm)

Width: 1.52 in. (38.7 mm)






WEIGHT


Approximately 0.48 lbs (219 g)






BATTERY COMPATIBILITY


6300mAh / 45Wh






BATTERY TYPE


Rechargeable Lithium-Ion Battery






VOLTAGE


7.2 V






CHARGING TEMPERATURE


0°C~40°C (32°F~104°F)






OPERATING TEMPERATURE


10°C~45°C (50°F~113°F )






STORAGE TEMPERATURE


20°C~50°C (68°F~122°F)






CHARGER COMPATIBILITY


KOMODO Camera, Standard BP Chargers
