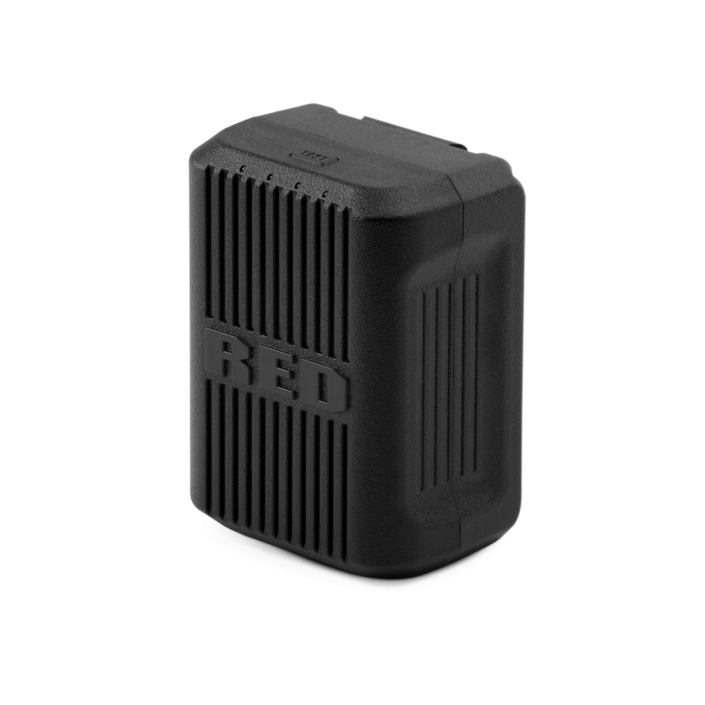

REDVOLT NANO-V

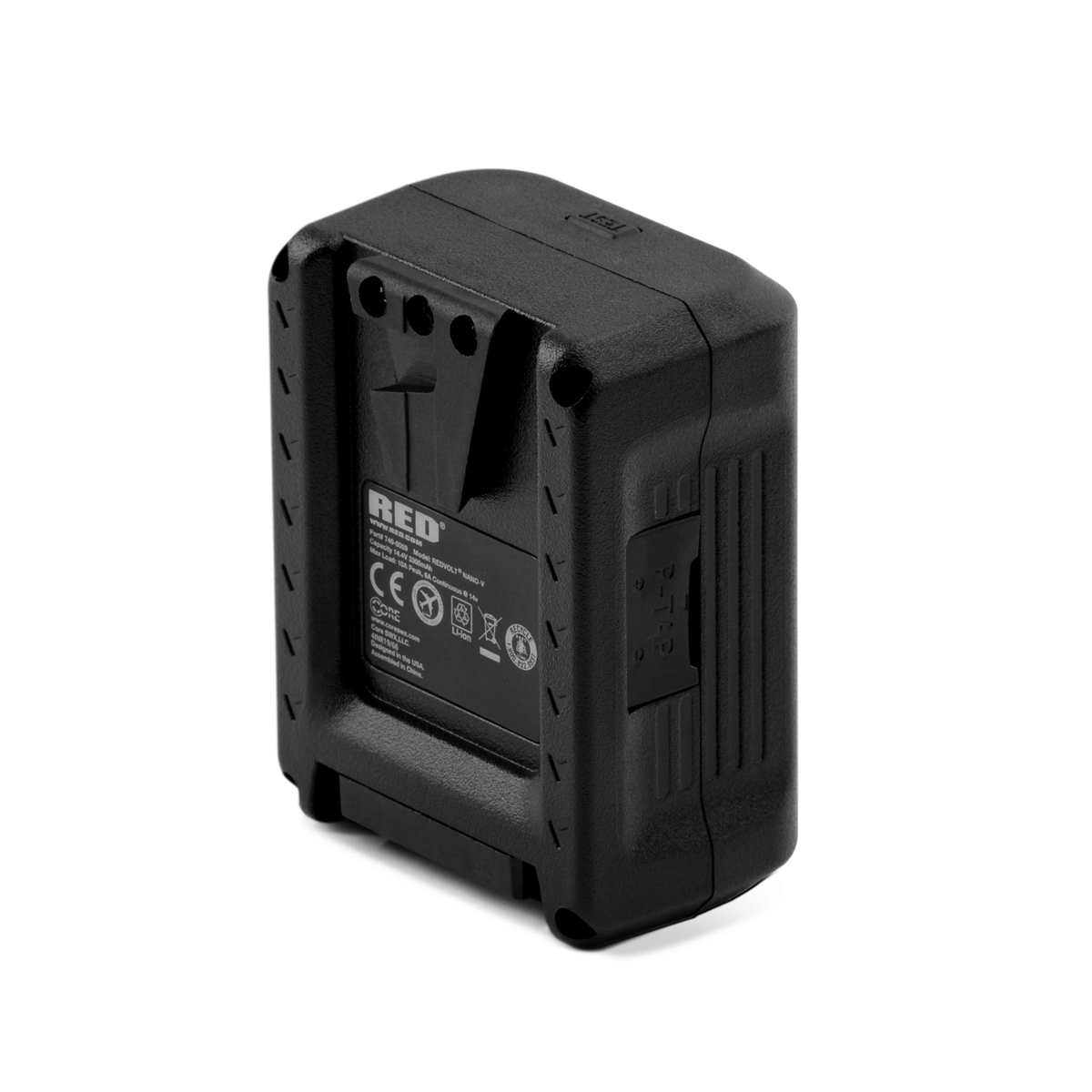

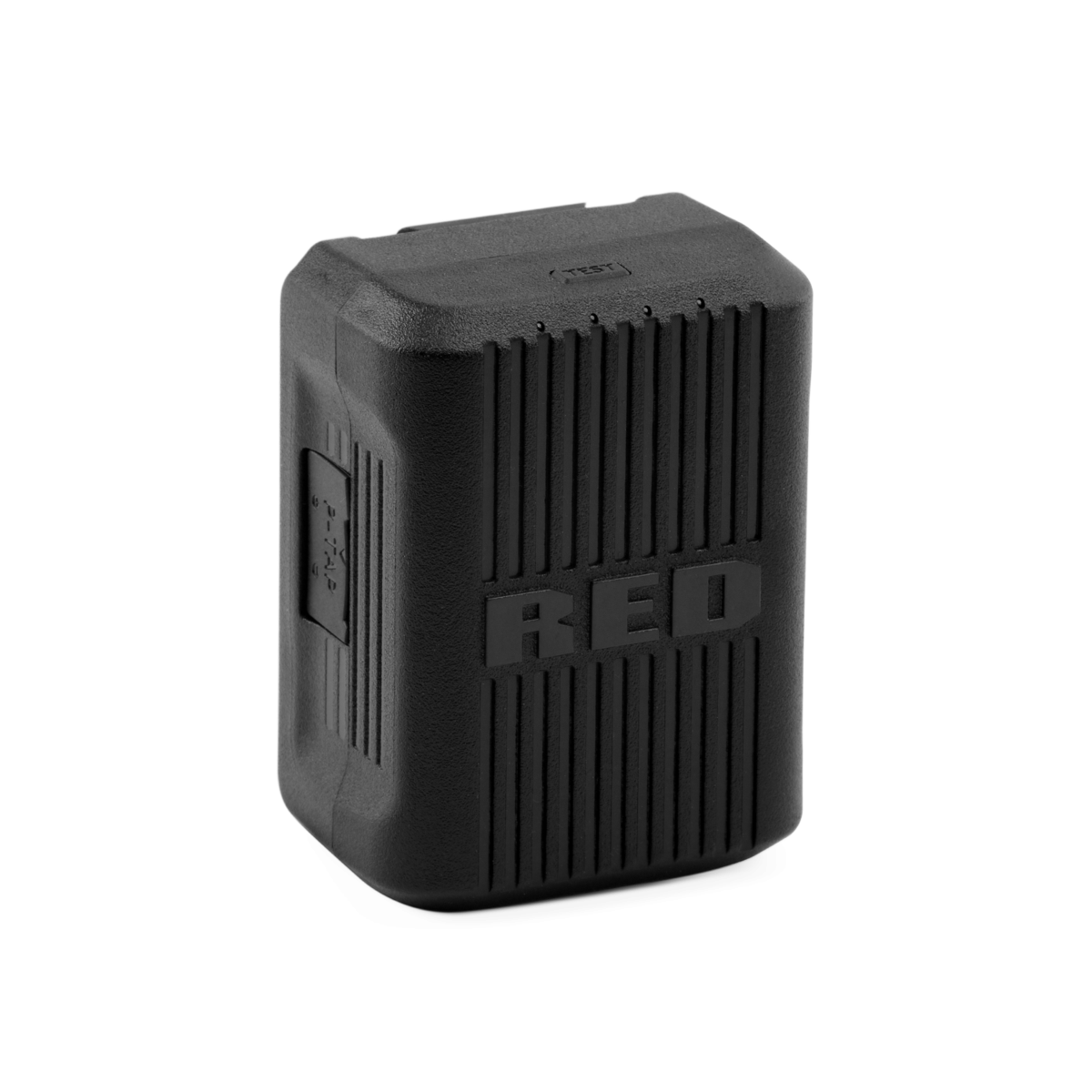

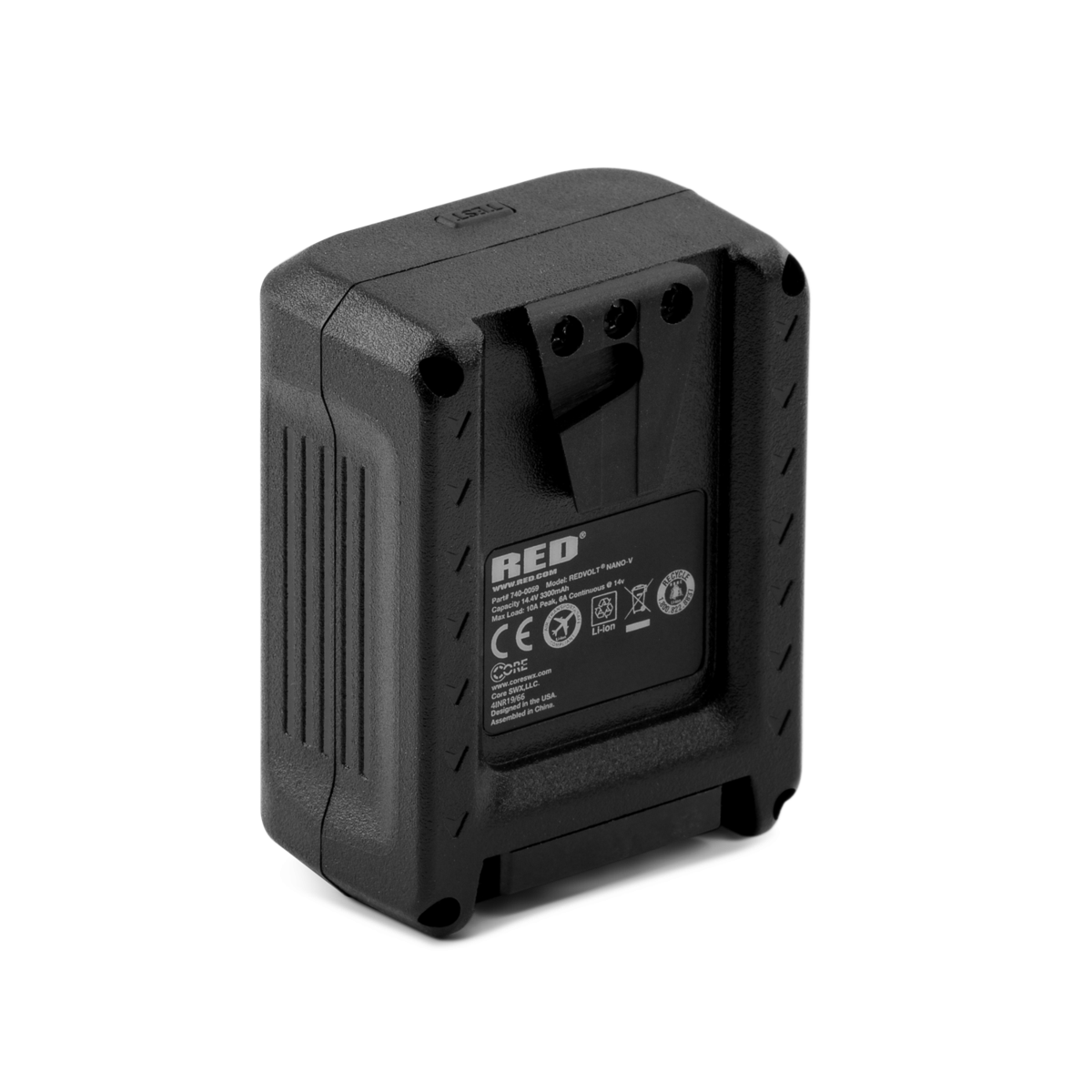

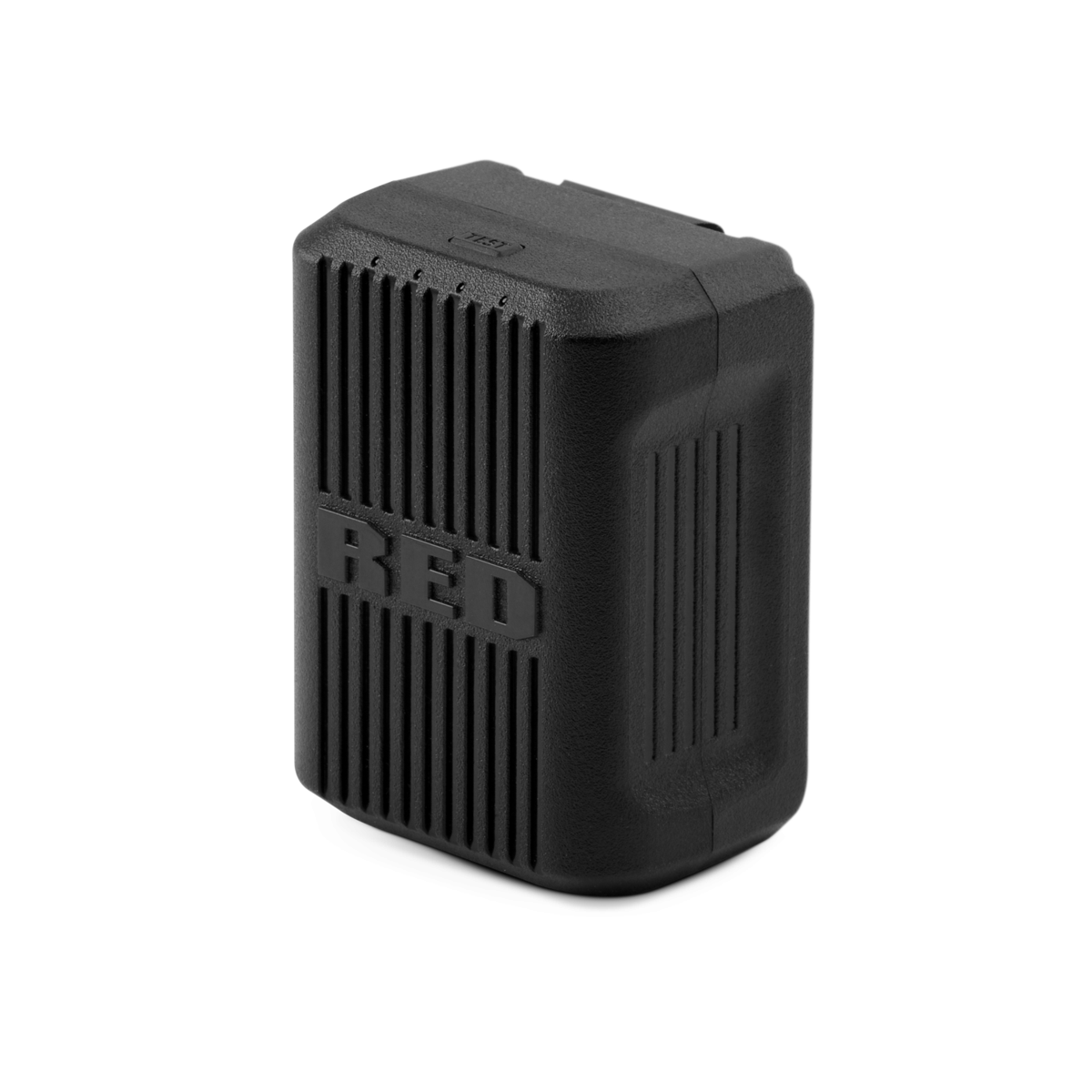

The REDVOLT® NANO-V battery is a small, lightweight power solution for the KOMODO-X™.

Read moreShow less
USD 275.00
ORDERS PLACED TODAY ARE EXPECTED TO SHIP IN 2 WEEKS. FOR URGENT ORDERS DO EMAIL info@av8.com.sg
Qty
Enquire Now
Wishlist0
Description

Weighing in at only 0.63lbs (288g), it is ideal for gimbals, drones, and other setups where form factor and weight matter. The batteries dimensions (66 mm x 88 mm x 44 mm) ensure the camera retains completely flat surfaces on the top and sides, allowing users to attach various combinations of cages and plates, without issue.

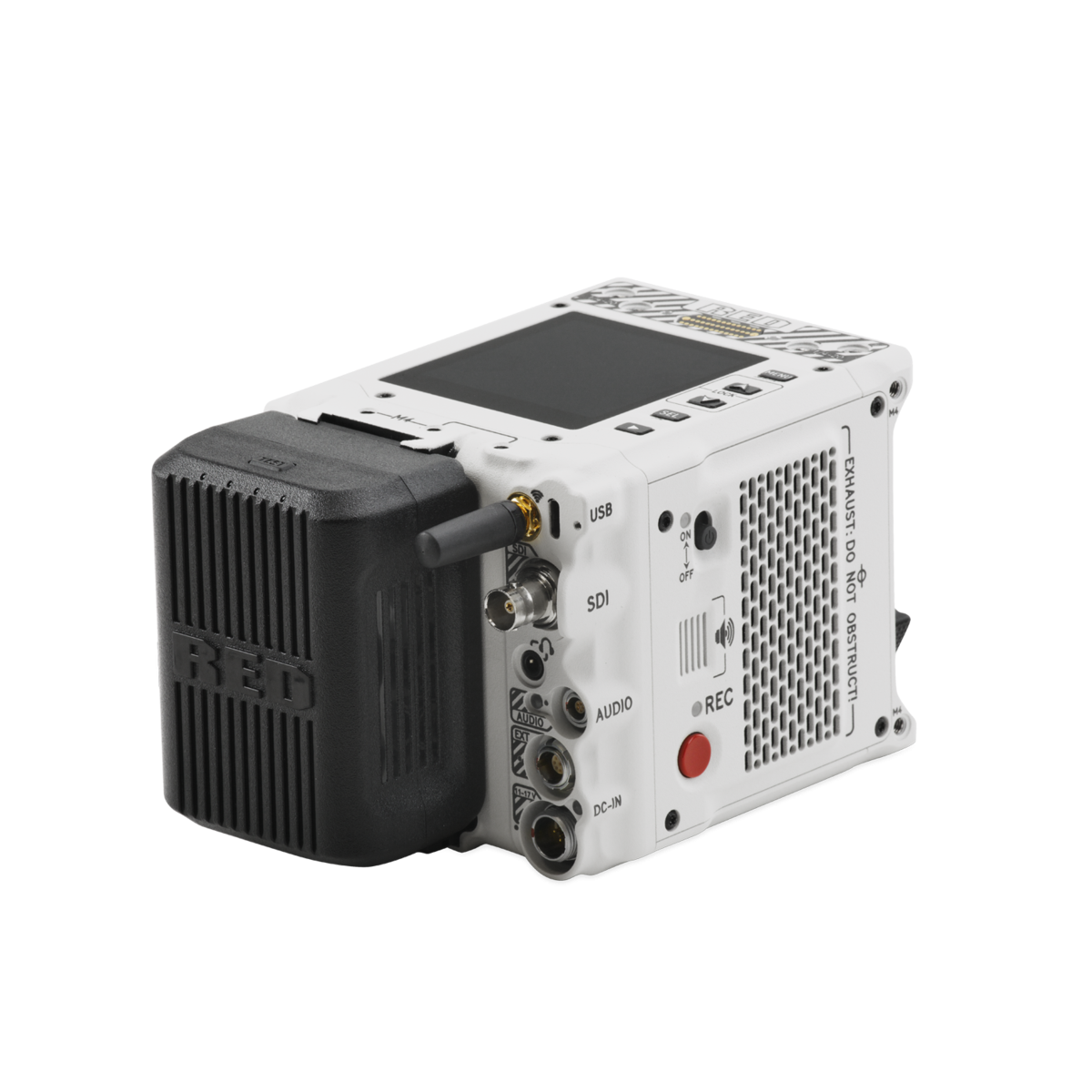

Featuring a 49 Wh capacity and with a maximum output current of 6 amps, the battery can power the KOMODO-X and DSMC3™ RED® Touch 7.0” LCD when you want to shoot in as light a configuration as possible.

REDVOLT NANO-V was designed in partnership with Core SWX and is compatible with most cameras/modules that accept V-Lock batteries. For issues or troubleshooting, please visit https://coreswx.supportsystem.com.

NOTE: Currently not shipping to Brazil, China, India, Japan, Mexico, Saudi Arabia, Singapore, South Africa, Thailand and UAE.

CAMERA COMPATIBILITY

DSMC**, DSMC2**, RANGER**, KOMODO*, KOMODO-X, V-RAPTOR**, V-RAPTOR XL**

*With correct battery adapter or battery plate.

**Physically compatible with correct battery adapter or battery plate, but 6A max draw could limit camera and accessory usage.

Read moreShow less
Specifications
740-0059
DIMENSIONS
Height: 2.60 in. (66.0 mm) Width: 3.46 in. (88.0 mm) Depth: 1.73 in. (44.0 mm)
WEIGHT
Approximately .63 lbs (288g)
BATTERY TYPE
Rechargeable Lithium-Ion Battery 3300mAh / 49Wh
VOLTAGE
14.4 VDC
CHARGING TEMPERATURE
0℃~40℃ (32°F~104°F)
OPERATING TEMPERATURE
10℃~45℃ (50°F~113°F)
STORAGE TEMPERATURE
20℃~50℃ (68°F~122°F)
CHARGER COMPATIBILITY
RED Compact Dual V-Lock Charger
