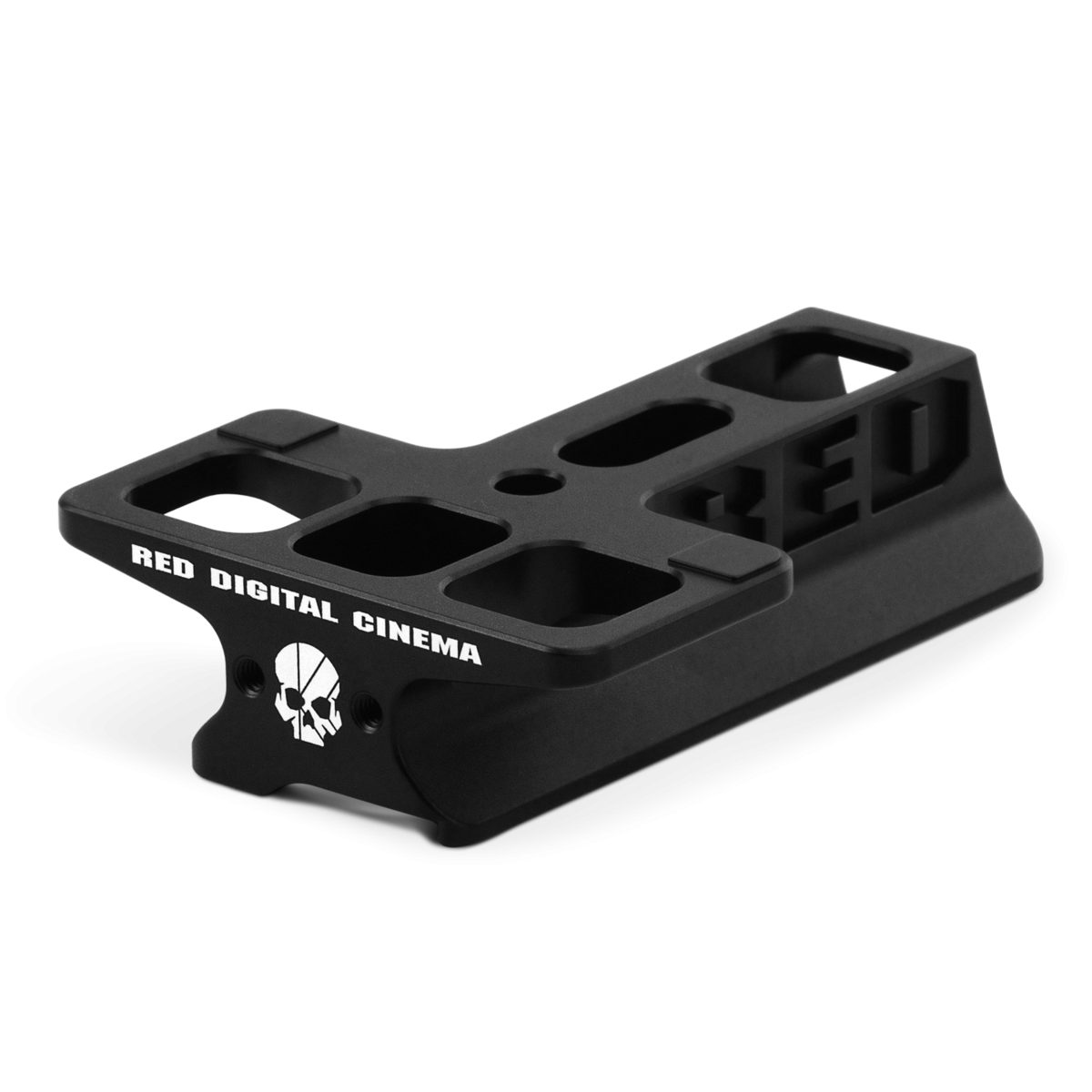

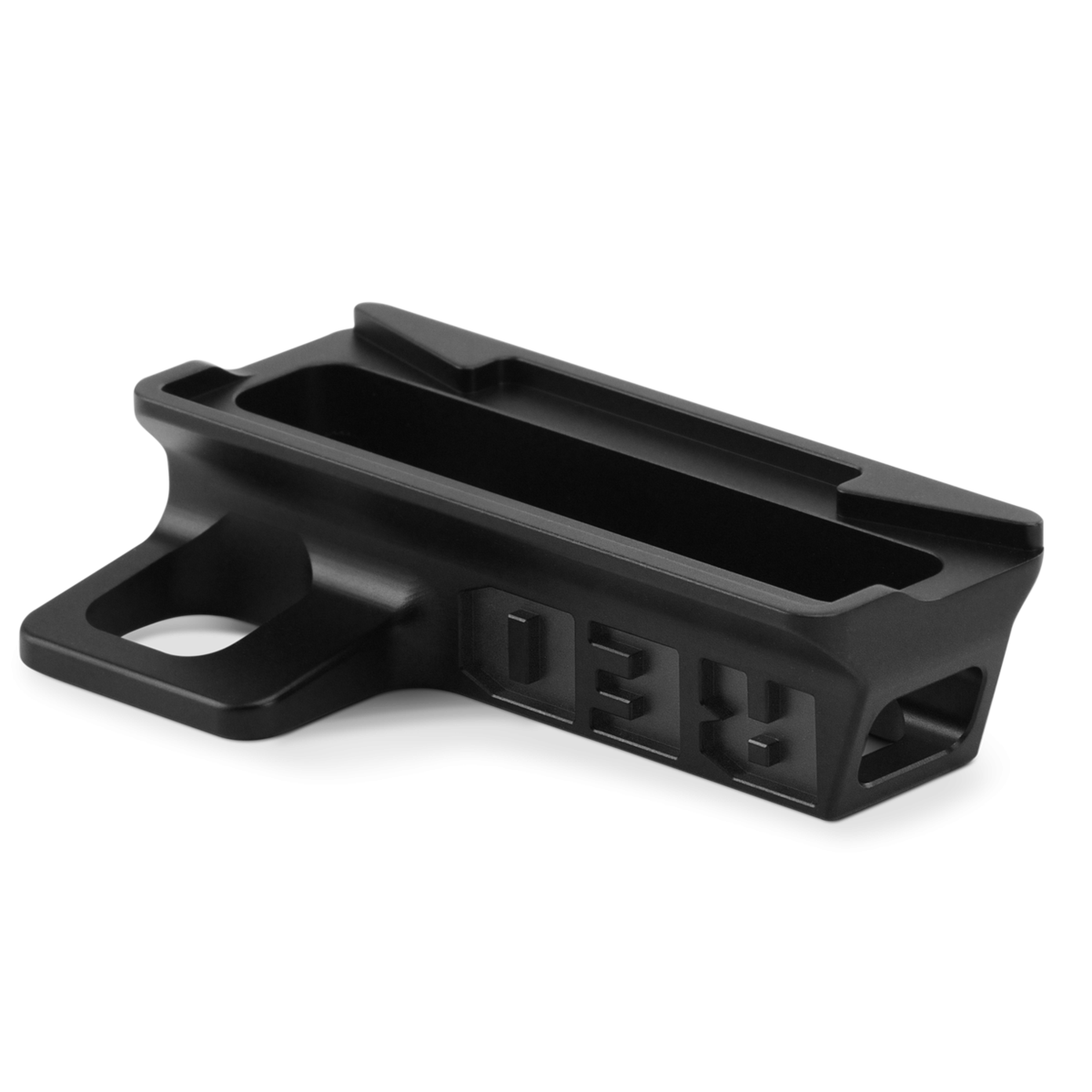

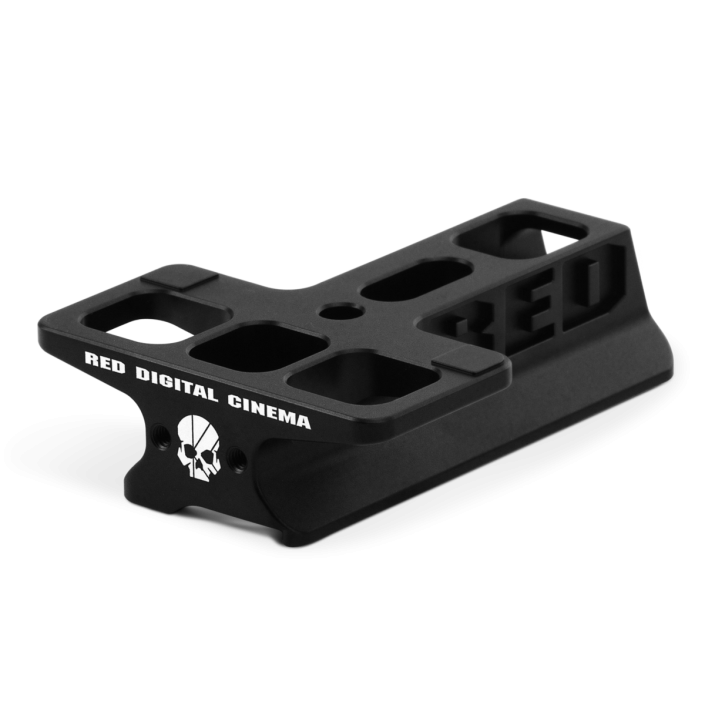

KOMODO RISER PLATE

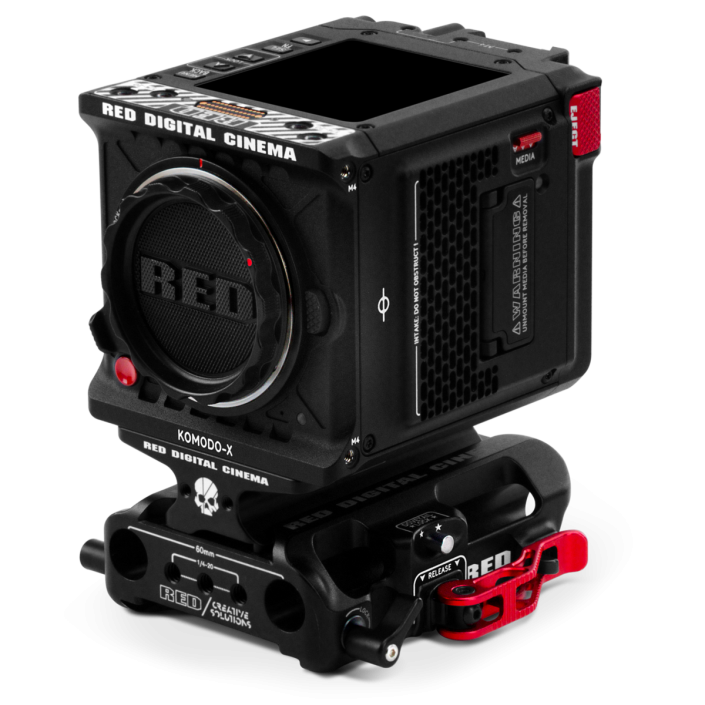

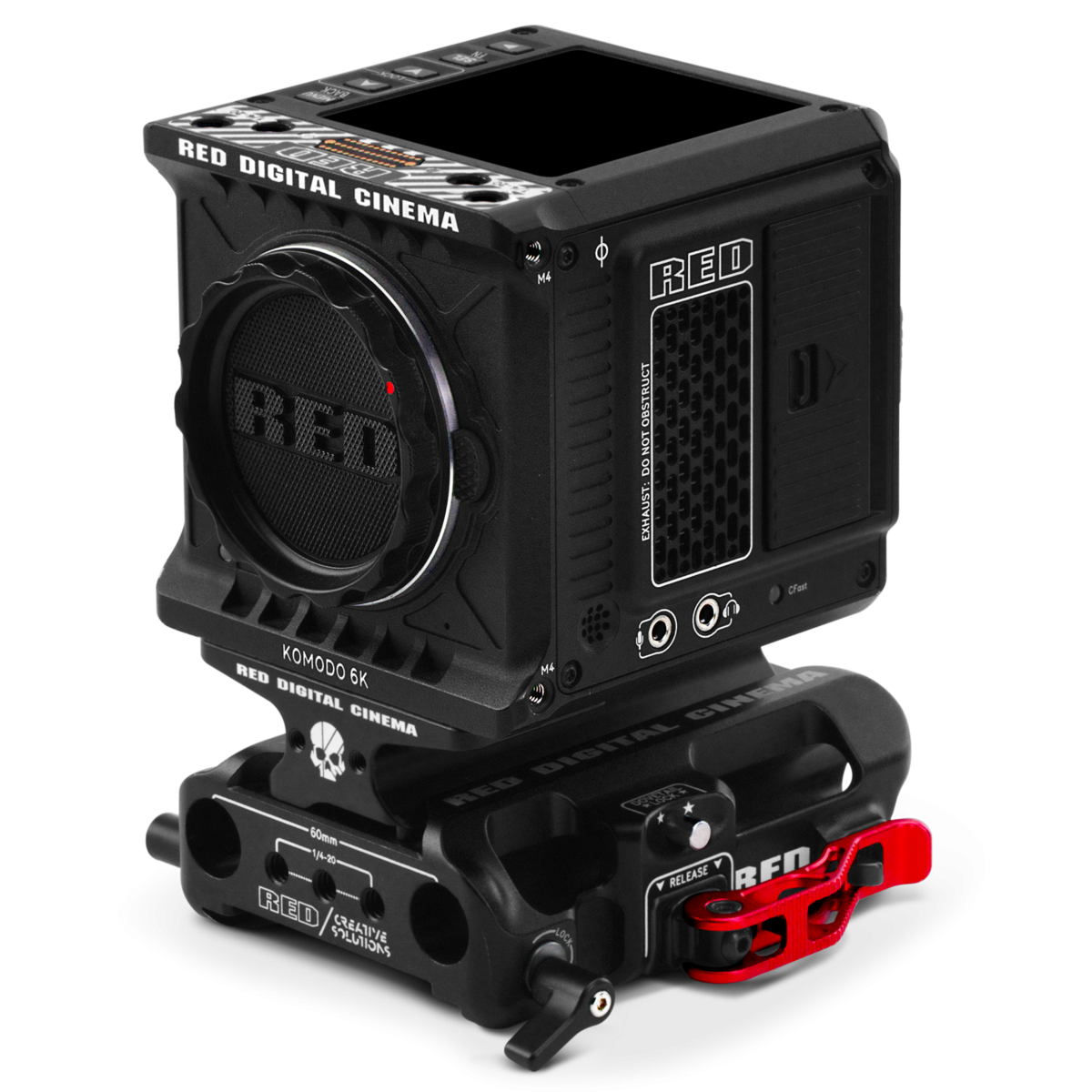

The KOMODO® Riser Plate is compatible with the KOMODO® and the KOMODO-X™ and is designed to be used in conjunction with the V-RAPTOR® Quick Release Platform Pack. The Riser Plate gets the camera to the correct optical height for 15 mm LWS accessories, such as matte boxes, lens support, and wireless follow focus systems. This provides a compact lightweight shooting configuration for KOMODO and KOMODO-X users. The system features an Arca Swiss Style mount plate, secure safety lock system.

Read moreShow less
USD 129.00
IN STOCK
Qty
Enquire Now
Wishlist0
Description

NOTES:

The KOMODO Riser plate is RRS Dovetail Standard (38 mm).

V-RAPTOR Quick Release Platform Pack sold separately.

Read moreShow less
Specifications
790-0733
DIMENSIONS
Depth: .92 in (23.40 mm)​
Height: 3.94 in (100.00 mm)​
Width: 2.98 in (75.60 mm)​
WEIGHT
Approximately 0.20 lbs (107.00 g)​​​​
MATERIAL
Aluminum
BRAIN MOUNTING
1/4-20 and 3/8;-16 Bolts
OPERATING TEMPERATURE
0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE
–20°C to 50°C (–4°F to 122°F)
