KOMODO 6K

KOMODO® 6K is the latest breakthrough product in RED's long line of innovative image capture technology. The newest entrant into the RED lineup is a compact and highly powerful cinema camera. It features RED’s cinema grade image quality, color science and sensor technology into a portable form factor so users can take it anywhere and adapt it to any shooting scenario. ​

Read moreShow less
USD 4,995.00
CHOOSE YOUR PACKAGE
  • CAMERA BRAIN
  • KOMODO 6K STARTER PACK
  • KOMODO 6K PRODUCTION PACK
IN STOCK
Qty
Enquire Now
Wishlist1
Description

The new sensor in KOMODO is a 6K S35 global shutter sensor that breaks new technical ground by eliminating the need to sacrifice dynamic range and meets the RED standard of unmatched imagery without any creative or technical compromises. KOMODO also features a built-in Canon RF mount allowing users the flexibility to use numerous different lens adapters, such as Canon EF, PL and Leica M mount. KOMODO also has a DC IN power port and can also be powered using two Canon BP style batteries.


In-Camera Language Support: English, Simplified Chinese, Japanese, German, Spanish, French​​


NOTE: The KOMODO 6K has an adaptable RF lens mount. KOMODO requires a lens mount adapter, i.e. RF to EF, RF to PL, in order to shoot.​ Canon Mount Adapter EF-EOS R included with camera.

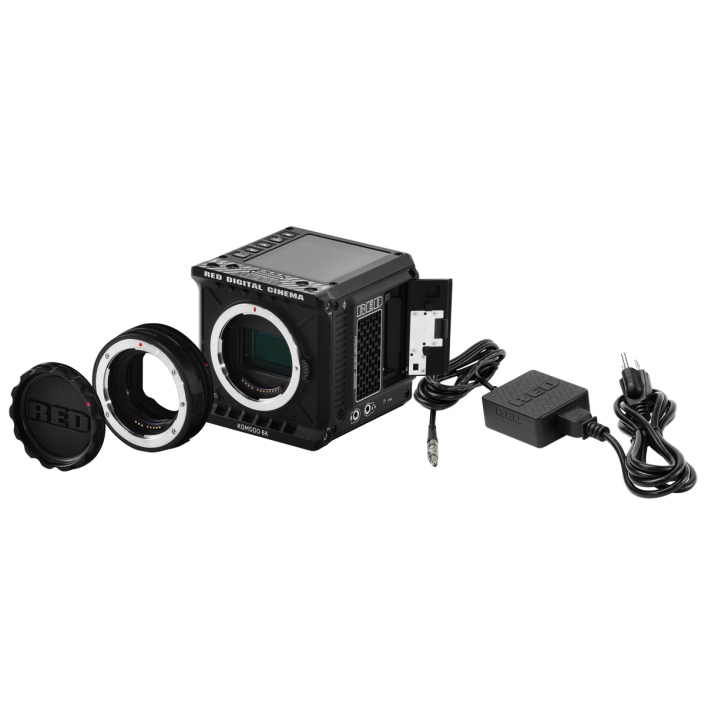

Included:

  • KOMODO 6K Body​
  • AC Power Adaptor 45W​
  • Mini World Travel Adaptor Kit​
  • RED Logo Sticker​
  • KOMODO Information Card (incl. registration and support info)​
  • Box with plastic / foam (standard minimalist markings)​
  • Canon Mount Adapter EF-EOS R
  • 1 Year Standard Warranty

STARTER PACK

This pre-bundled setup is perfect for content creators and run-and-gun operators. Including KOMODO® 6K with the Wing Grip and RF to EF Adapter with ND Filter. Also included is media and media reader, as well as Timecode CableIt includes:

  • 1x KOMODO® 6K Camera System
  • 1x Canon® Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter
  • 2x KOMODO® Wing Grip
  • 1x RED® PRO CFast 512GB
  • 1x RED® CFast 2.0 Card Reader
  • 1x RED® EXT-to-Timecode Cable 3'
  • 2x REDVOLT® BP
  • 1-Year Standard Warranty

PRODUCTION PACK

Get all of the production-level accessories needed for professional and studio work, including Expander Module and Outrigger Handle. As with the KOMODO® Starter Pack, KOMODO 6K Production Pack comes with the Wing Grip and RF to EF Adapter with ND Filter, media and media reader, and Ptap-to-Power Cable. It includes:

  • 1x KOMODO® 6K Camera System
  • 1x Canon RF to EF Adapter w/ Variable ND Filter
  • 1x Canon Drop-In Clear Filter
  • 1x KOMODO® Outrigger Handle​
  • 1x KOMODO® Wing Grip
  • 1x KOMODO® Expander Module
  • 1x RED® PRO CFast 512GB
  • 1x RED® CFast 2.0 Card Reader
  • 1x RED® PTap-to-Power Cable 6'
  • 2x REDVOLT® BP
  • 1-Year Standard Warranty
Read moreShow less
Specifications
710-0333
SENSOR TYPE
KOMODO™ 19.9 MP Super 35mm Global Shutter CMOS
EFFECTIVE PIXELS
6144 x 3240
SENSOR SIZE
27.03 mm x 14.26 mm (Diagonal: 30.56mm)
DYNAMIC RANGE
16+ Stops
MOUNT TYPE
Accepts Canon RF Mount Based Lenses and Adapters
RF mount
Supports Canon EF with full electronic communication via compatible Canon RF Mount Adapters
MAX DATA RATES
Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards [1]
REDCODE® RAW MAX FRAME RATES
40 fps at 6K 17:9 (6144 x 3240)
48 fps at 5K 17:9 (5120 x 2700)
50 fps at 6K 2.4:1 (6144 x 2592)
60 fps at 4K 17:9 (4096 x 2160)
120 fps at 2K 17:9 (2048 x 1080)
PLAYBACK FRAME RATES (PROJECT TIME BASE)
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
BEST AVAILABLE REDCODE® SETTINGS
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps
REDCODE® RAW ACQUISITION FORMATS2
2K 17:9 (2048 x 1080)
4K 17:9 (4096 x 2160) and 16:9
5K 17:9 (5120 x 2700)
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
APPLE PRORES
2K (2048 × 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps
4K (4096 × 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps
CONSTRUCTION
Aluminum Alloy
WEIGHT
2.10 lbs (without body cap and Cfast card)
BATTERY TYPE
Two slots for BP-9XX series batteries
DC POWER INPUT
+7 to +17 V DC via the integrated 2-pin DC-IN port
OPERATING TEMPERATURE
0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE
–20°C to 50°C (–4°F to 122°F)
STORAGE HUMIDITY
0% to 85% non-condensing
COLOR MANAGEMENT
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs
AUDIO
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
REMOTE CONTROL
Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed
MONITOR OUTPUTS
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS

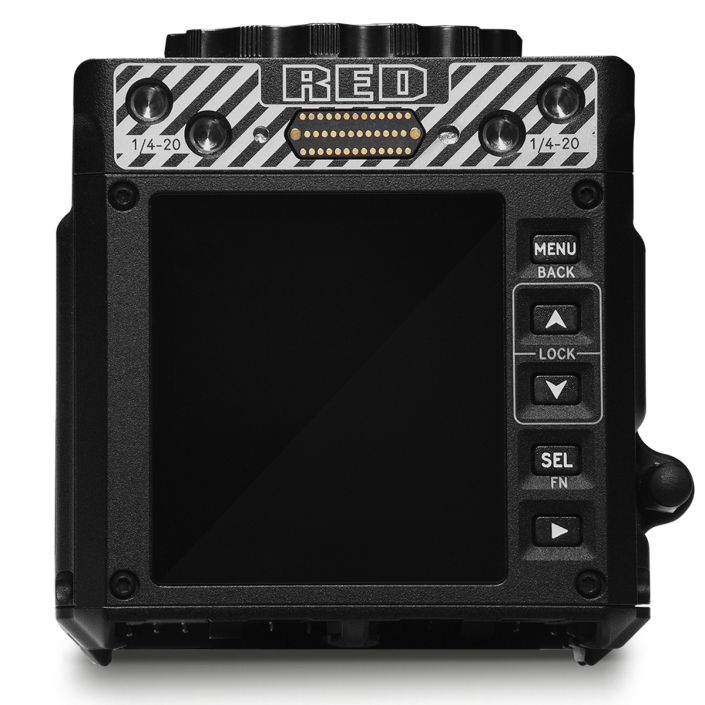

Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control
Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing
RED CONTROL
Access full camera controls and live preview from iOS or Android devices.
Available from the Apple App Store and Google Play Store (coming soon).
RED Control works wirelessly or wired via the KOMODO Link Adaptor (sold separately).
