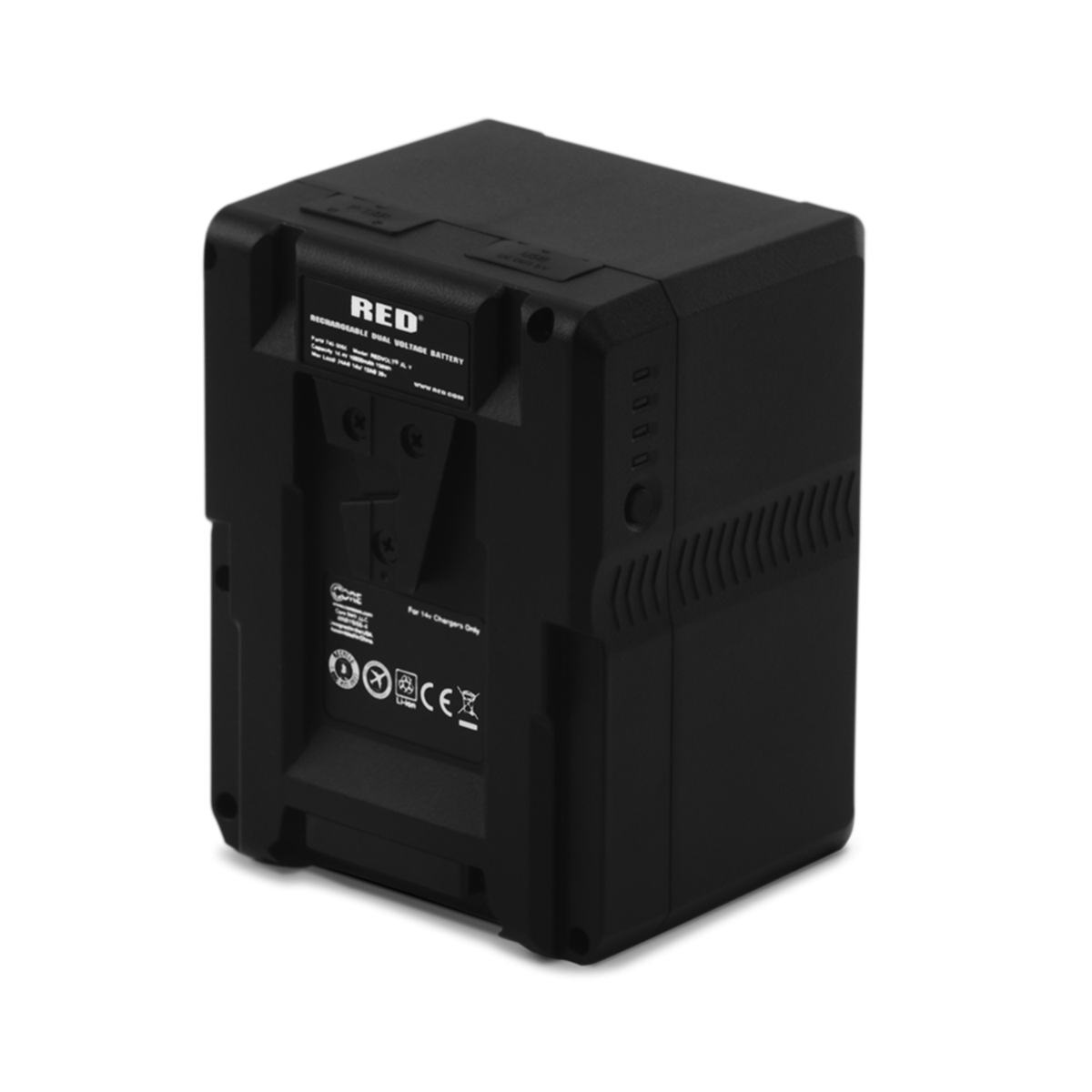

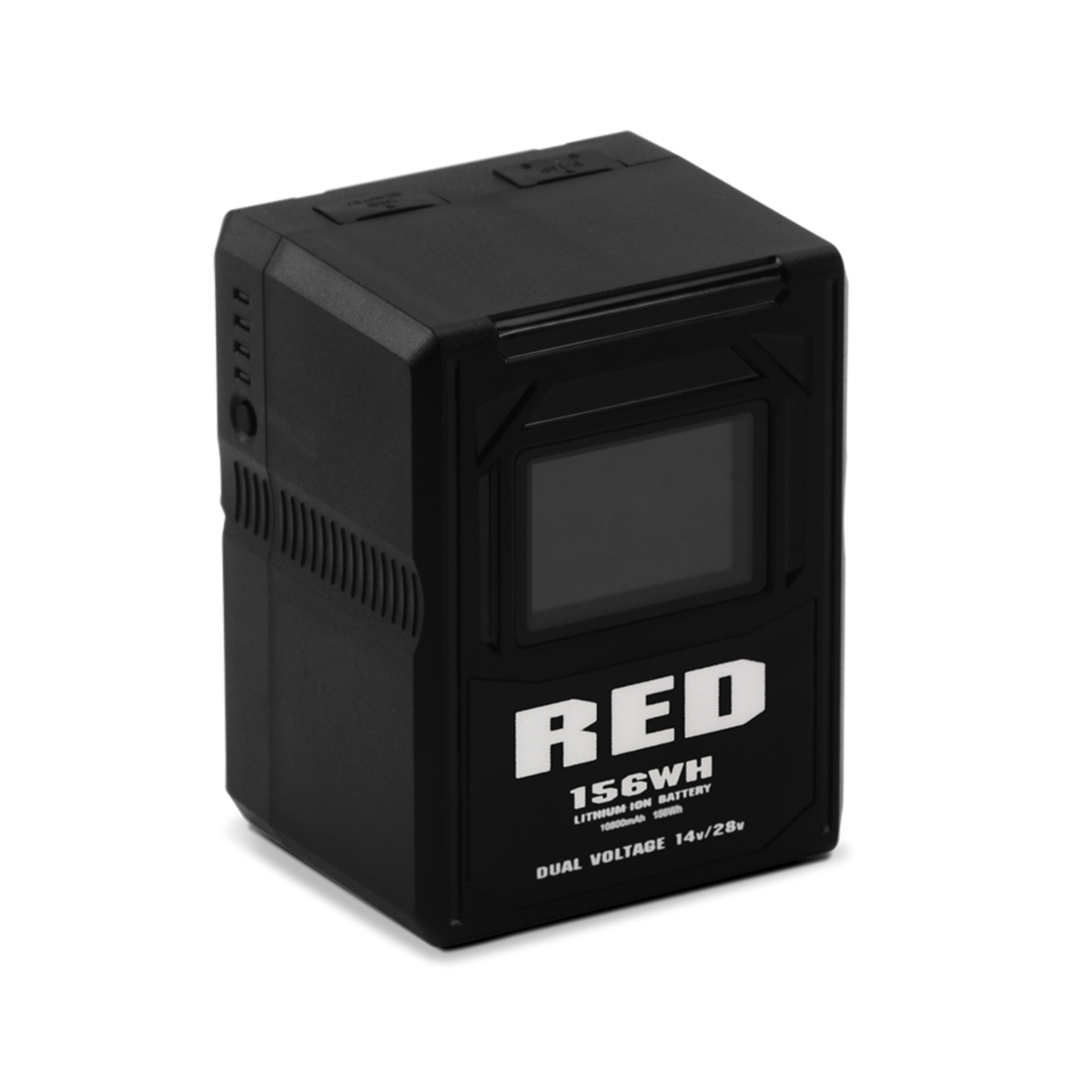

The REDVOLT® XL is a Native Dual Voltage™ battery that can support both high voltage cameras such as the V-RAPTOR™ XL, and 14 V cameras such as the V-RAPTOR™.
This battery provides 156 Wh capacity, camera-aware automatic output switching between 14 V or 28 V, and it is capable of delivering up to 400 watts of power.
Utilizing a Core SWX Helix V-Lock style mount, this battery can detect when it is mounted to a V-RAPTOR XL, and it immediately switches output to 28 volts at 12 amps by dynamically switching the pack's circuit from a parallel to series cellular arrangement with no power regulation or up-conversion. When placed on a V-RAPTOR™, or any other 14 V camera, the battery provides 14 volts at 24 amps output through the parallel cellular design.
NOTES:
The REDVOLT XL must be charged with a 14 V charger.
REDVOLT XL was designed in partnership with Core SWX and is compatible with most cameras/modules that accept V-Lock and Gold Mount batteries.
COMPATABILITY: The REDVOLT X is compatible with DSMC®, DSMC2®, RED RANGER® and KOMODO® camera systems with a compatible V-Lock and/or Gold Mount module or adapter.
