RED PRO I/O MODULE

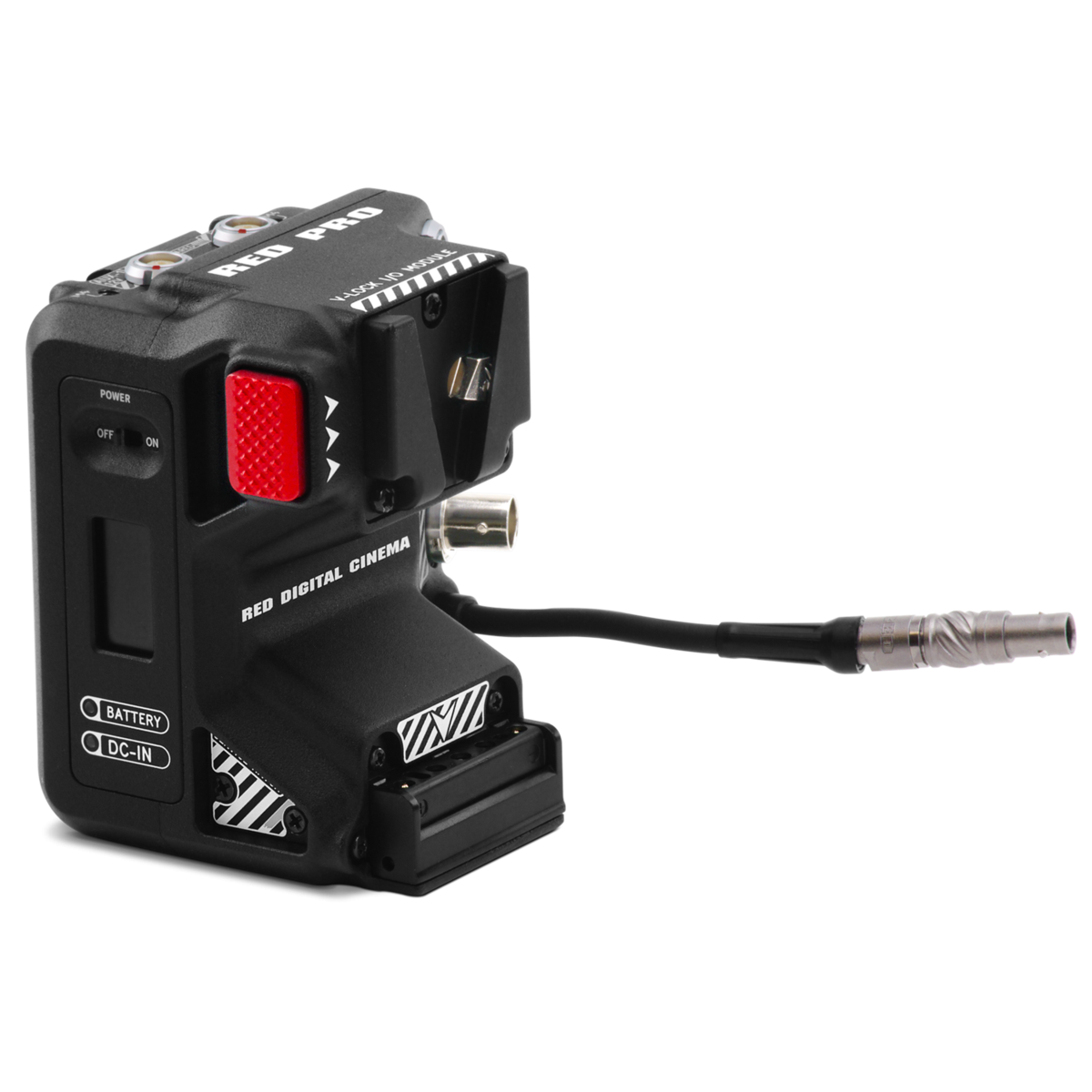

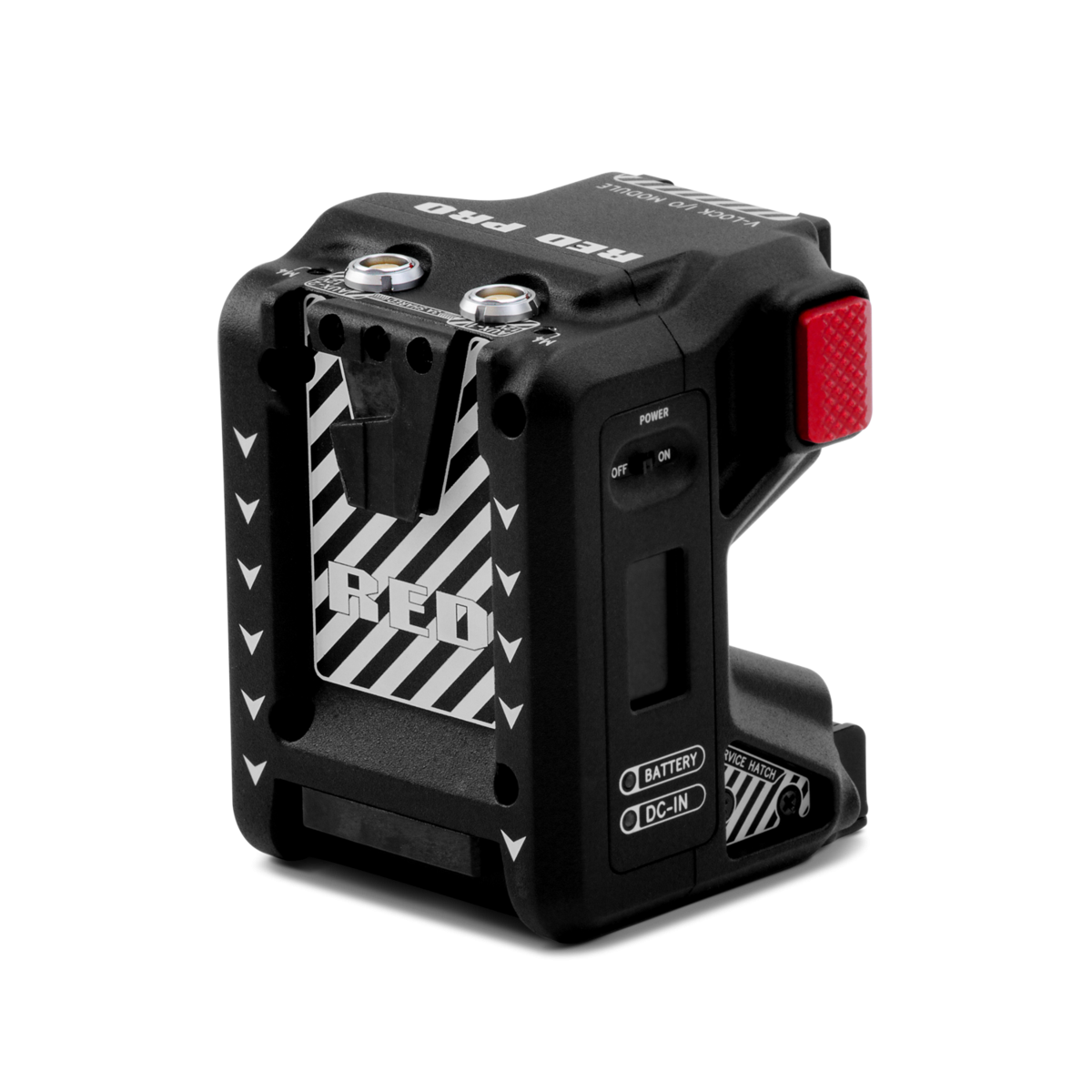

The RED® Pro I/O Module offers a variety of input/ output connections, and it also includes an industry standard V-Lock or Gold Mount to power your KOMODO-X™ with higher capacity batteries.

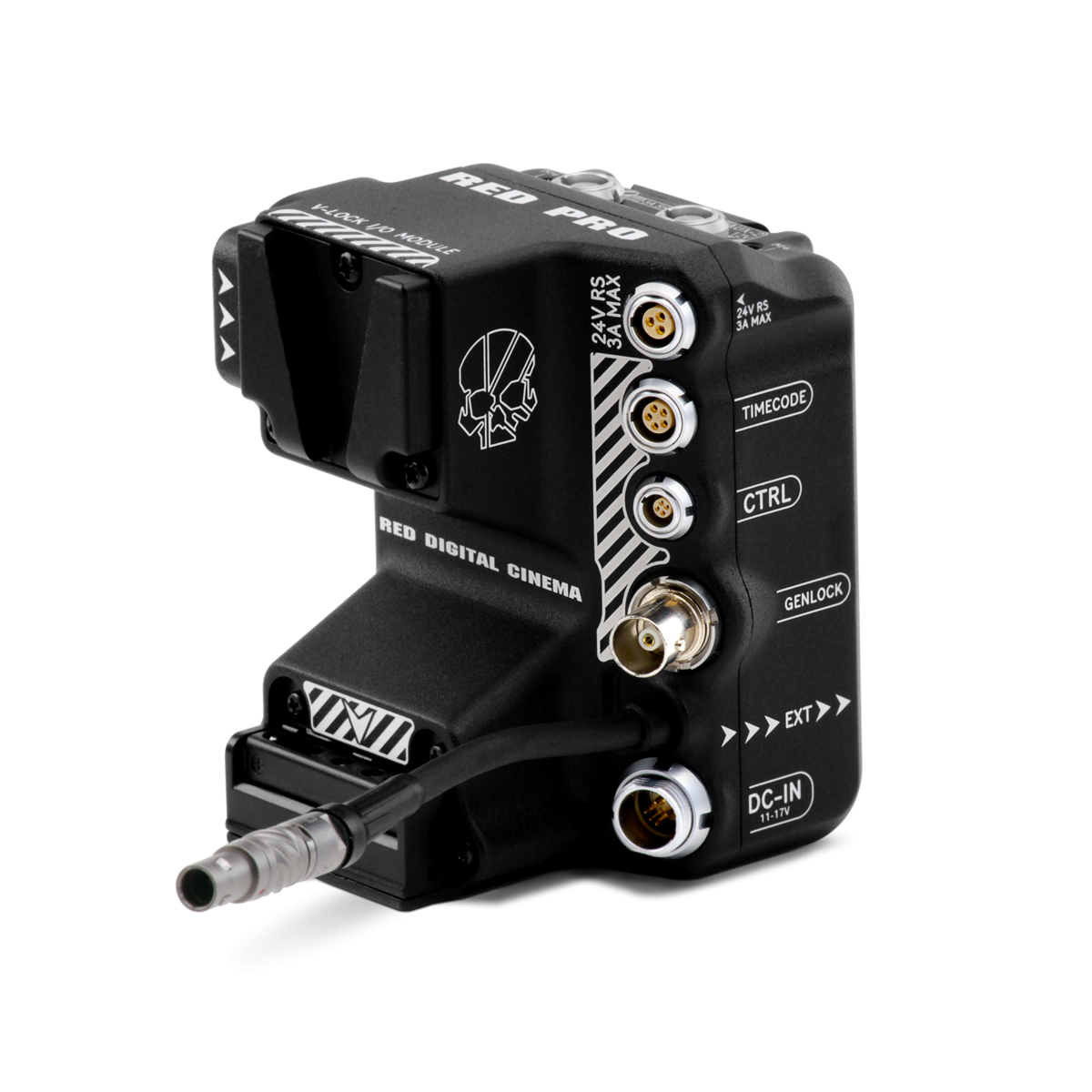

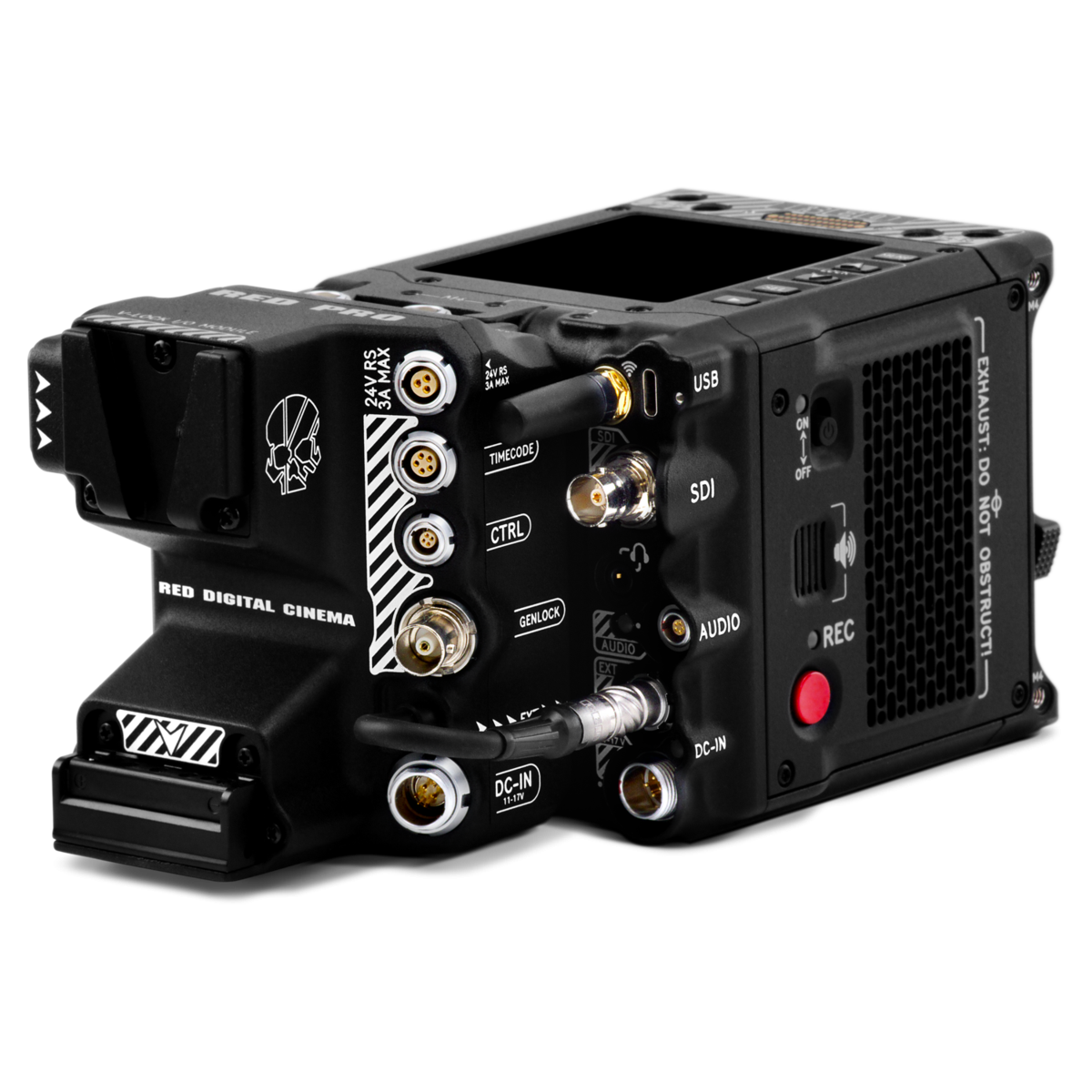

This module mounts directly to the KOMODO-X’s rear Micro V-Lock plate and 9-Pin EXT Port, and it offers connections for the following:
- DC Power Input (DC-IN)
- Genlock (BNC)
- CTRL (4-Pin)
- Timecode (5-pin)
- 1x 3-Pin 24-volt (regulated) Fischer R/S port (3A max)

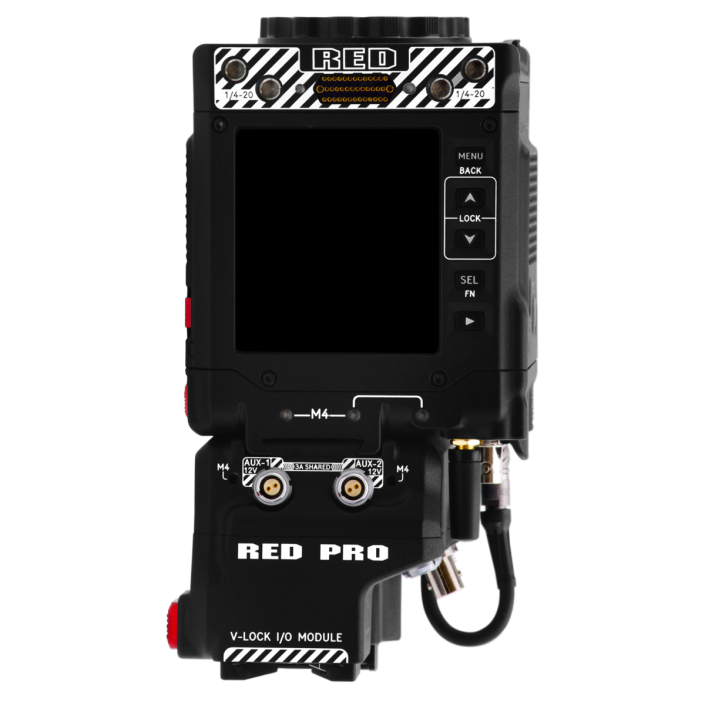

- 2x 2-Pin 12-volt (unregulated) AUX ports (3A combined max)
The module also includes an operator-side screen which displays key power voltage and battery percentage information (with compatible batteries) along with a power switch to cut power to the module when you want to leave a battery on the module for long durations.
NOTES:
The RED Pro I/O Module is only compatible with KOMODO-X™.
It is recommended to use 12A Batteries such a the REDVOLT® MICRO-V or REDVOLT® XL-V when using all AUX outputs simultaneously.
When used with REDVOLT® NANO-V the AUX power outputs will be disabled.
