RED DIGITAL
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE
KOMODO EXPANDER MODULE

KOMODO EXPANDER MODULE

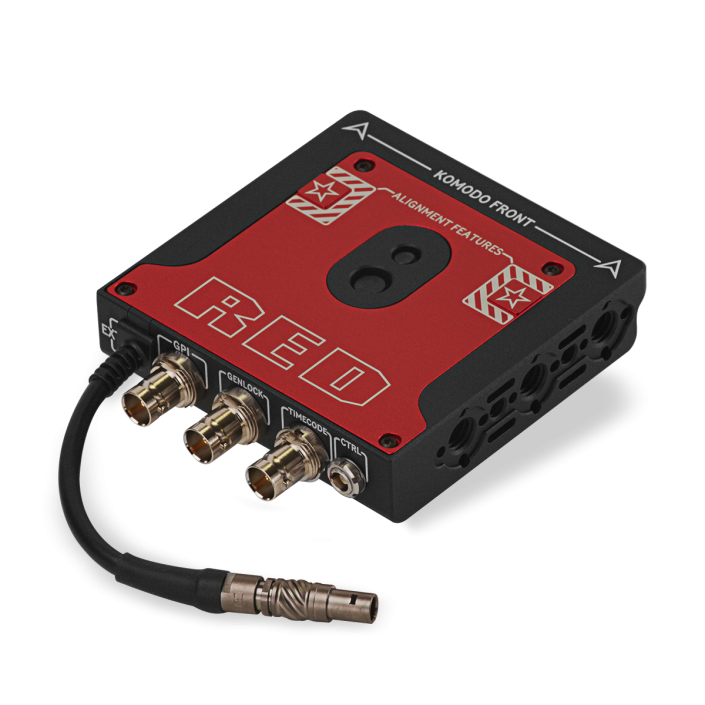

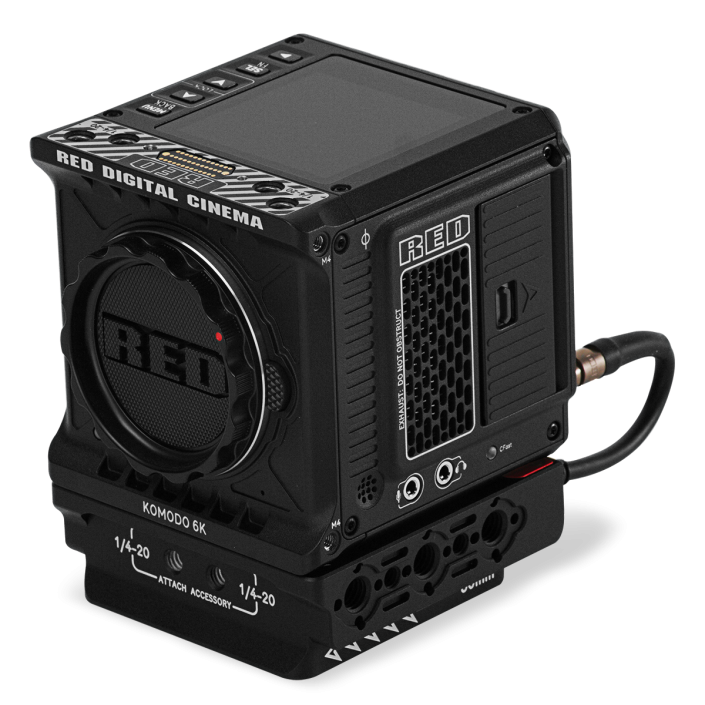

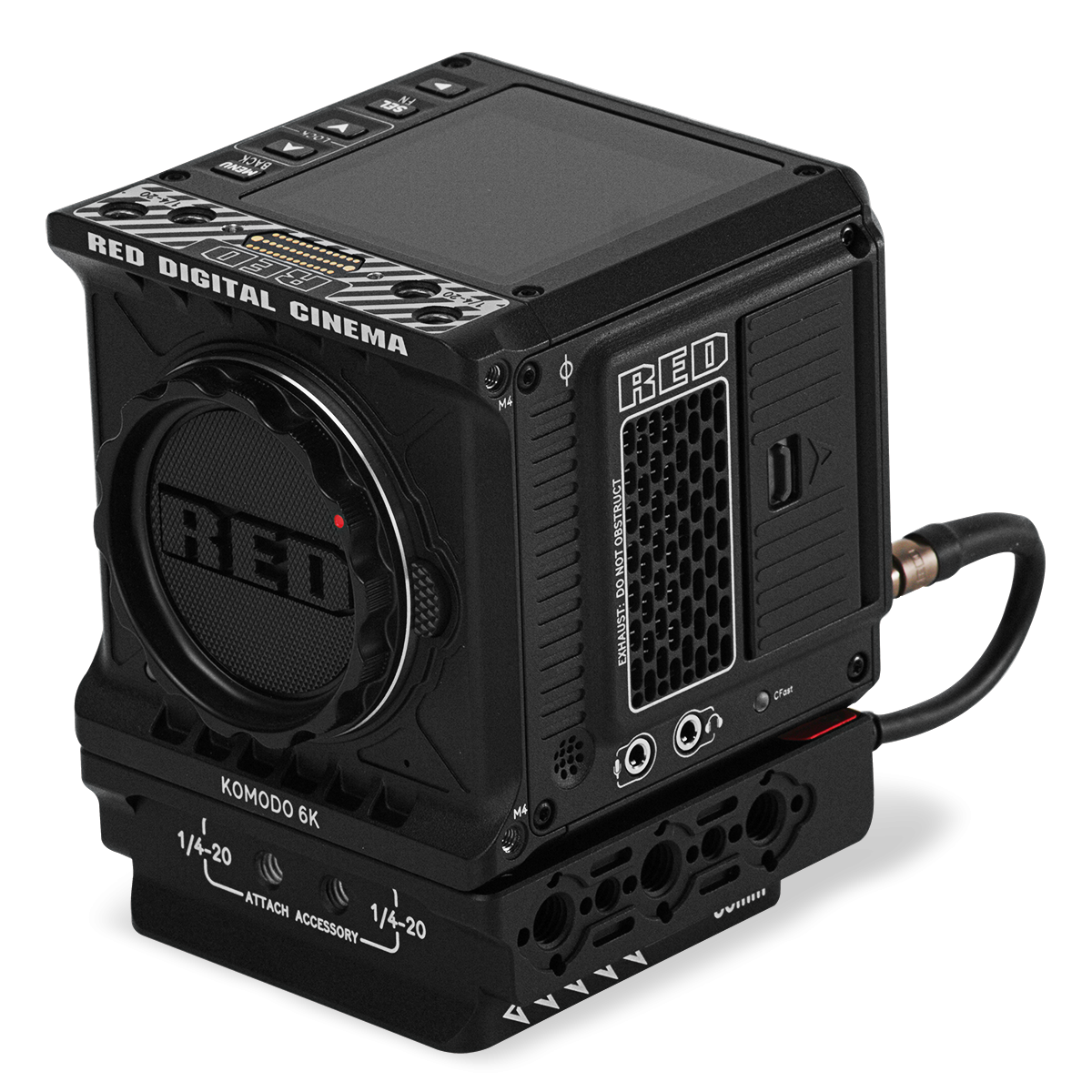

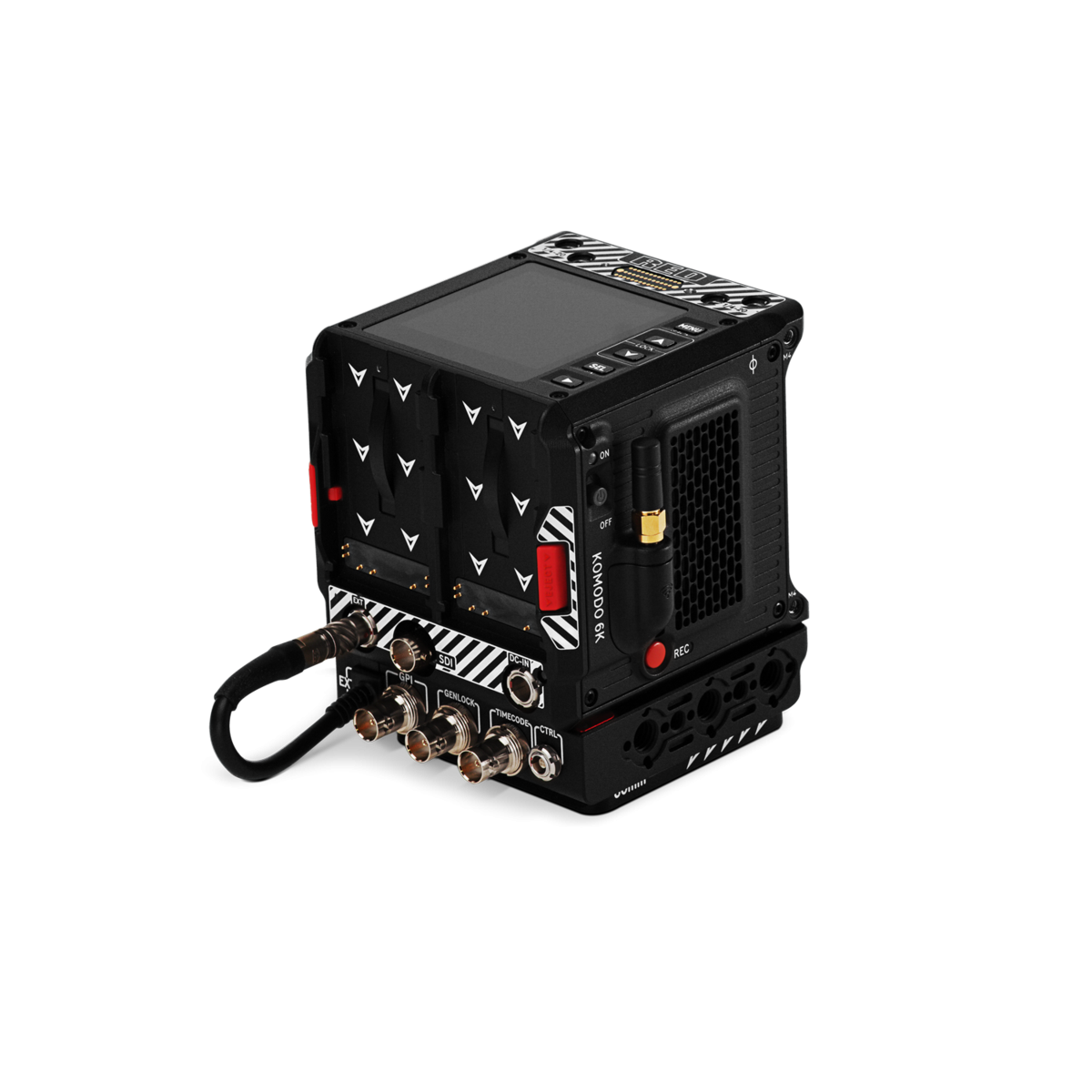

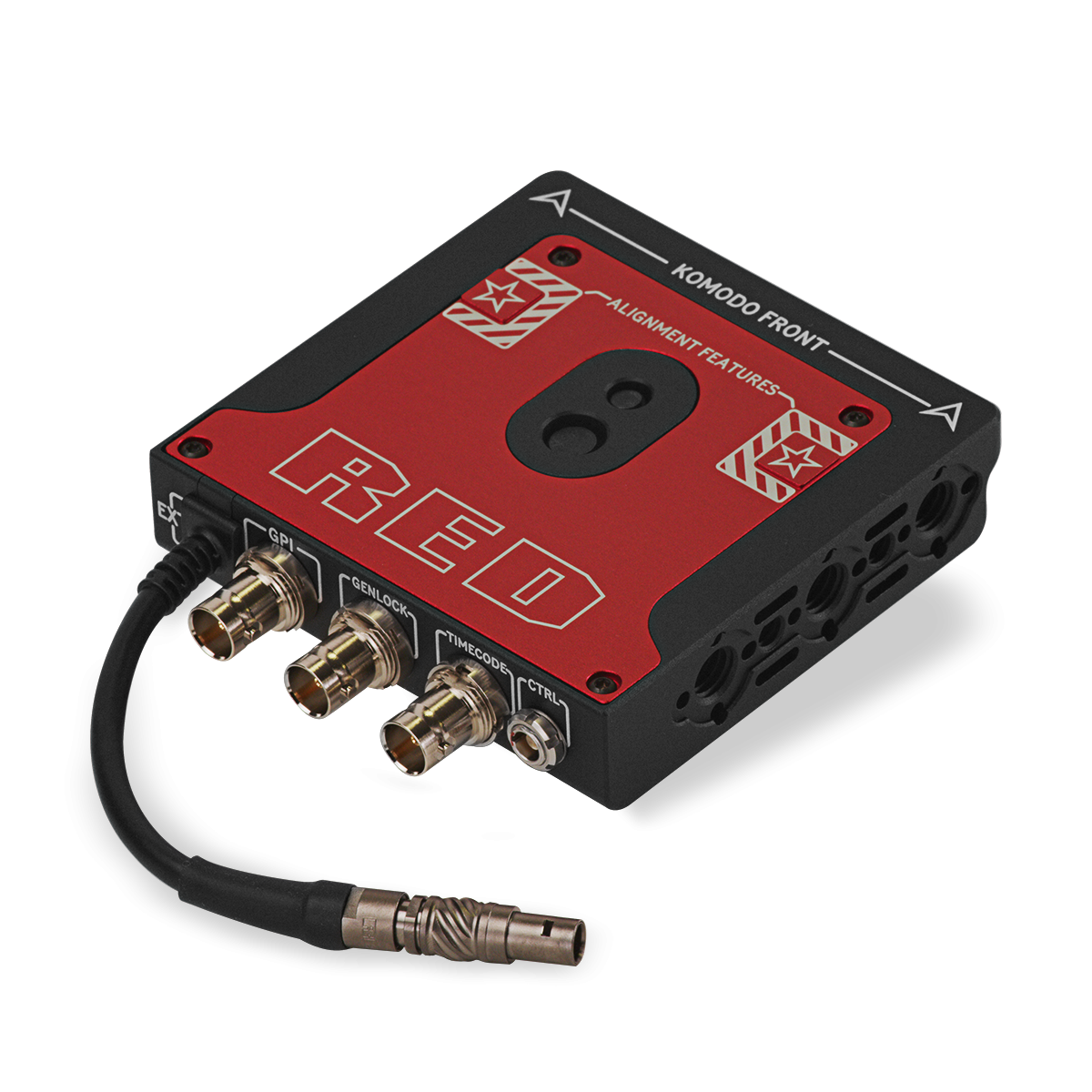

The KOMODO® Expander Module is designed to support professional shooting configurations. With options for video and communication connections, including Genlock (BNC), GPI (BNC), Timecode in (BNC) and CTRL (4-pin). The KOMODO Expander Module creates the flexibility to support a vast array of options when it comes to how users will rig their KOMODO.

Read moreShow less
USD 595.00
IN STOCK
Qty
Enquire Now
Wishlist0
Share
Description

Constructed from lightweight and durable aluminum alloy, the module provides a reliable option for multiple rigging solutions with multiple ¼-20 and 3/8-16 mounting points and ARRI-style locating holes along with an integrated quick-release plate.​

Read moreShow less
Specifications
720-0058
DIMENSIONS
Depth: 4.25 in (108 mm)​
Height: 1.25 in (32 mm)​
Width: 3.75 in (95 mm)​
WEIGHT
Approximately 0.9 lbs (408 g)​​
MATERIAL
Aluminum​
MOUNTING TO KOMODO​
1x ¼-20 and 1x 3/8-16 captive mounting screw
CONNECTION TO KOMODO​
9-pin EXTENSION port​​

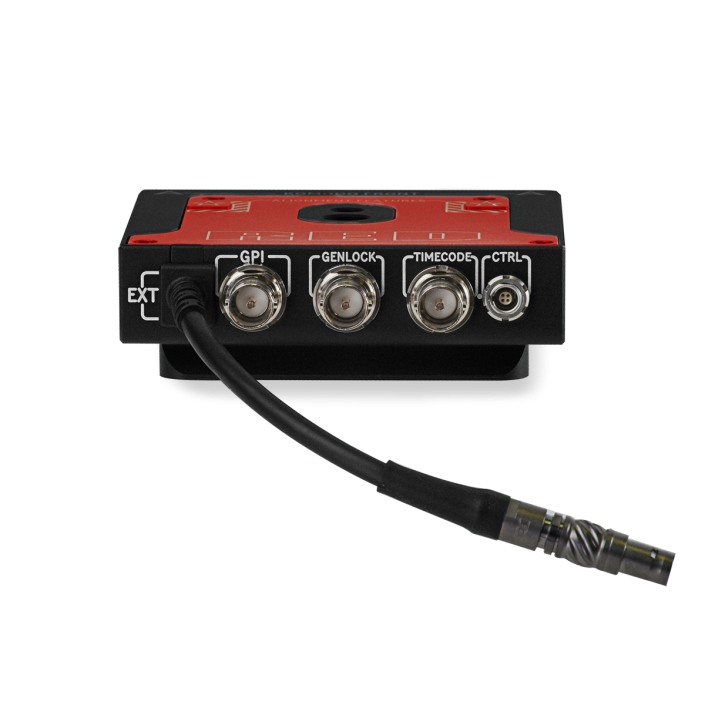

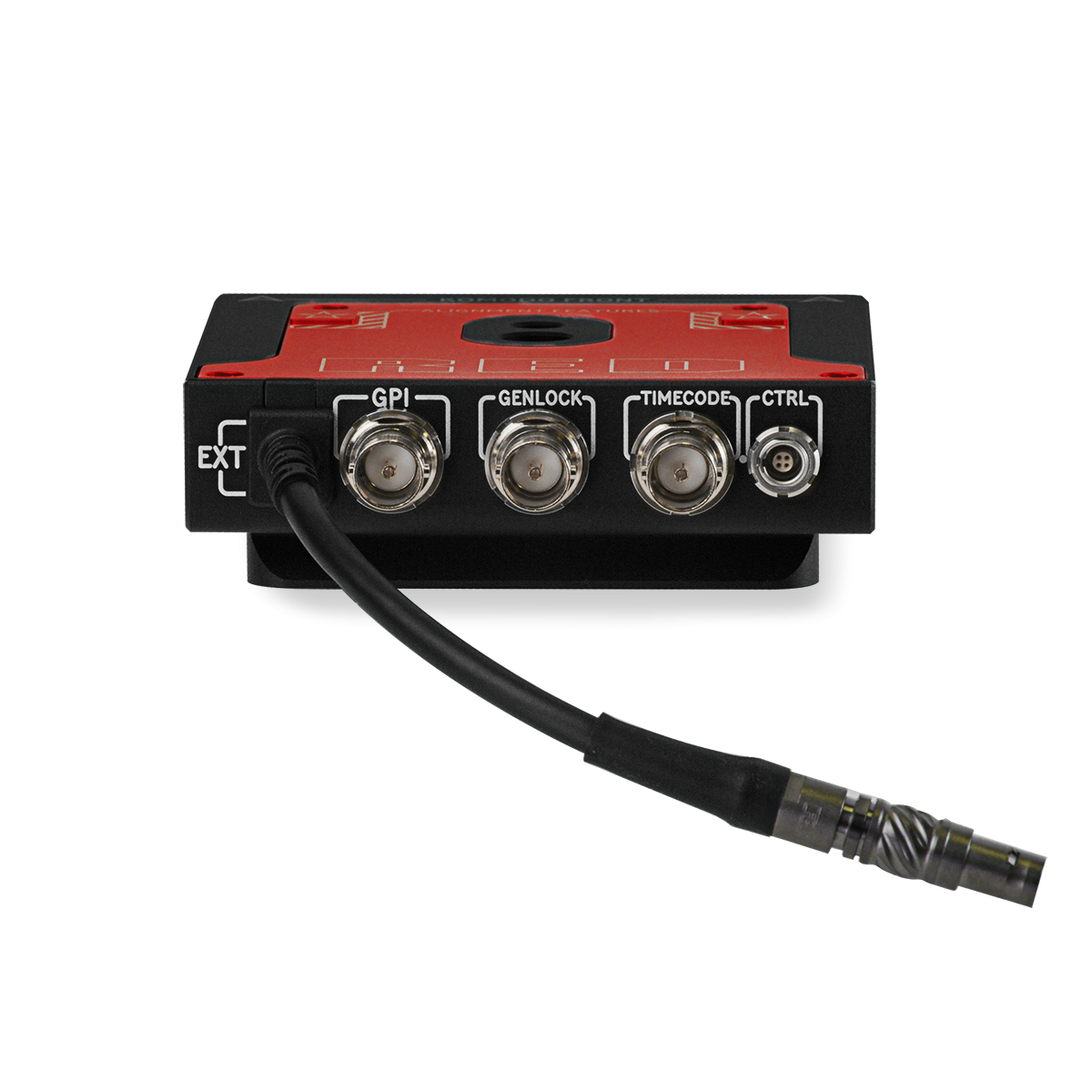

CONNECTORS
CTRL (Tally OUT /RS-232 Rx and Tx) (4-Pin 00)​
GPI (BNC)​
Genlock (BNC)
Timecode In (BNC)​

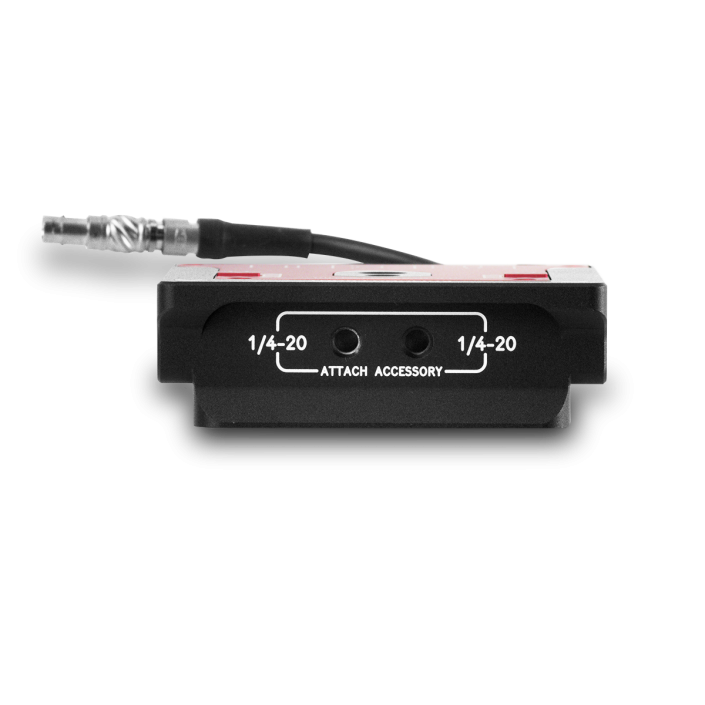

ARM MOUNTING​
6x ¼-20 and 8x 3/8-16 mounting holes with​
INTEGRATED QUICK RELEASE PLATE​​
Compatible with the GDU 80mm Touch N Go​
OPERATING TEMPERATURE
0°C to 40°C (32°F to 104°F)​​
STORAGE TEMPERATURE
–20°C to 50°C (–4°F to 122°F)​​
OPERATING HUMIDITY
0% to 85%, non-condensing​
STORAGE HUMIDITY
0% to 85%, non-condensing​
