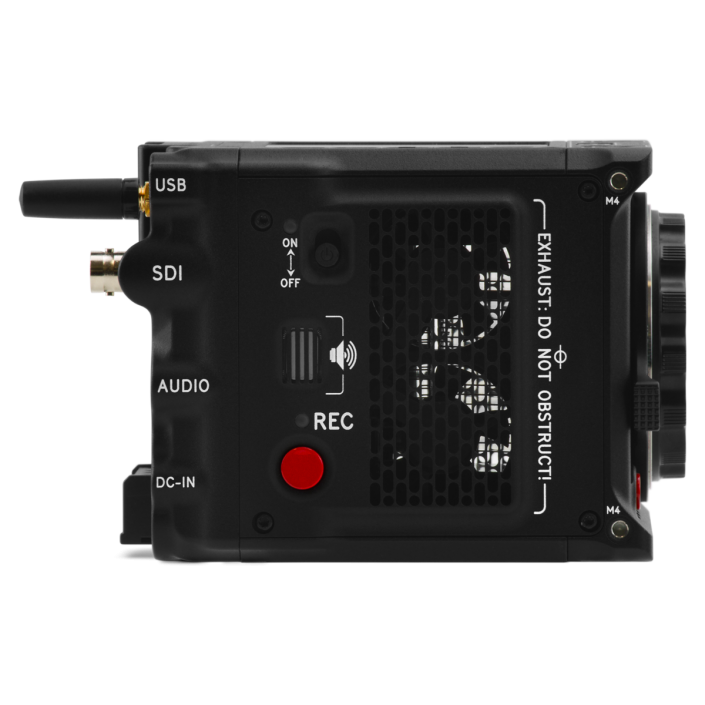

KOMODO-X™
KOMODO-X™ is the next evolution in the KOMODO family, multiplying the frame rates, dynamic range, and usability of the original KOMODO to break new grounds.
NEXT GENERATION KOMODO® SENSOR
KOMODO-X features the same sized 6K S35 Global Shutter sensor as the KOMODO, but with a ground up redesign and key architecture improvements.
Improved detail and color in shadows, paired with double the frame rates at 6K 80P and 4K 120P makes KOMODO-X an even more powerful tool for creatives.
ENHANCED BODY AND I/O

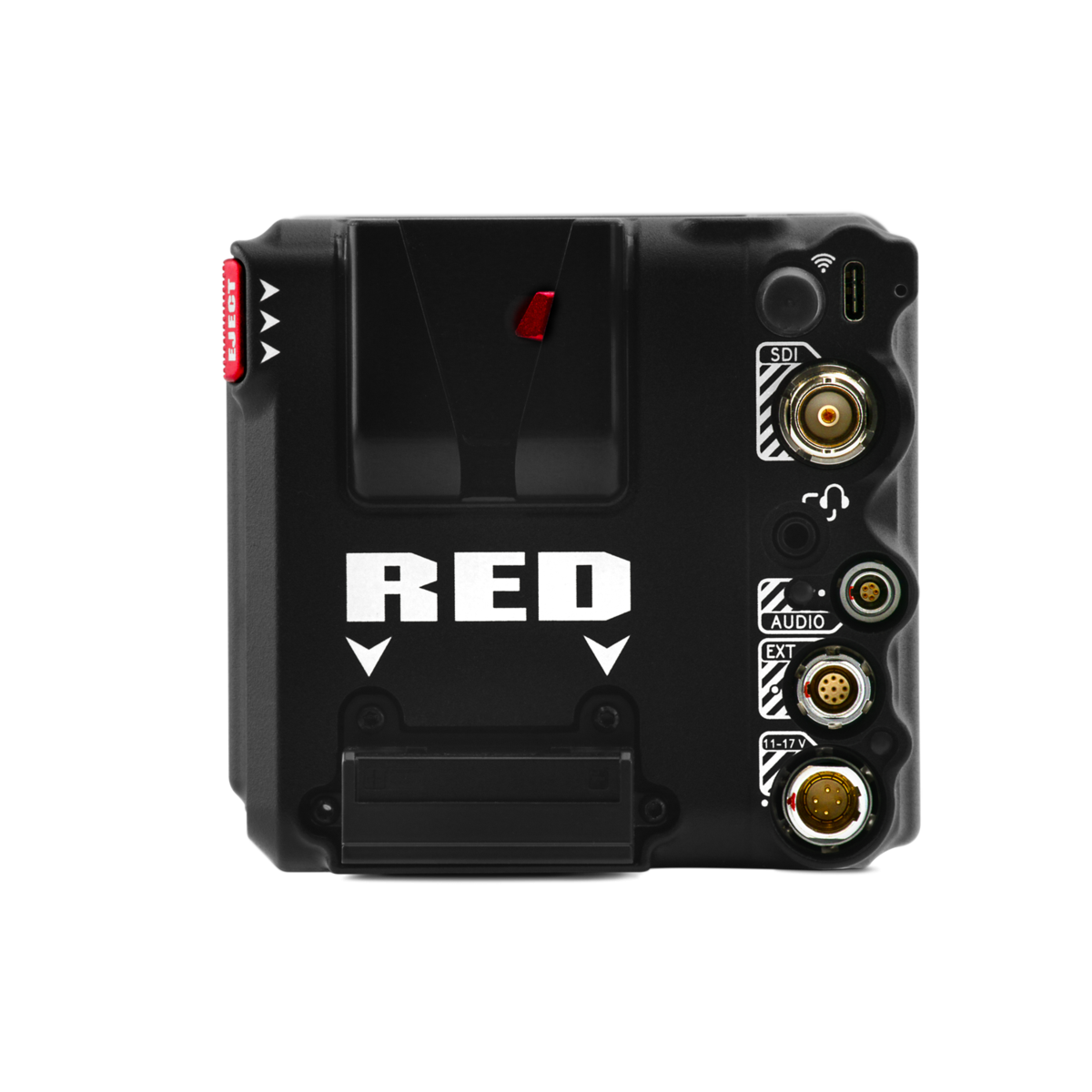

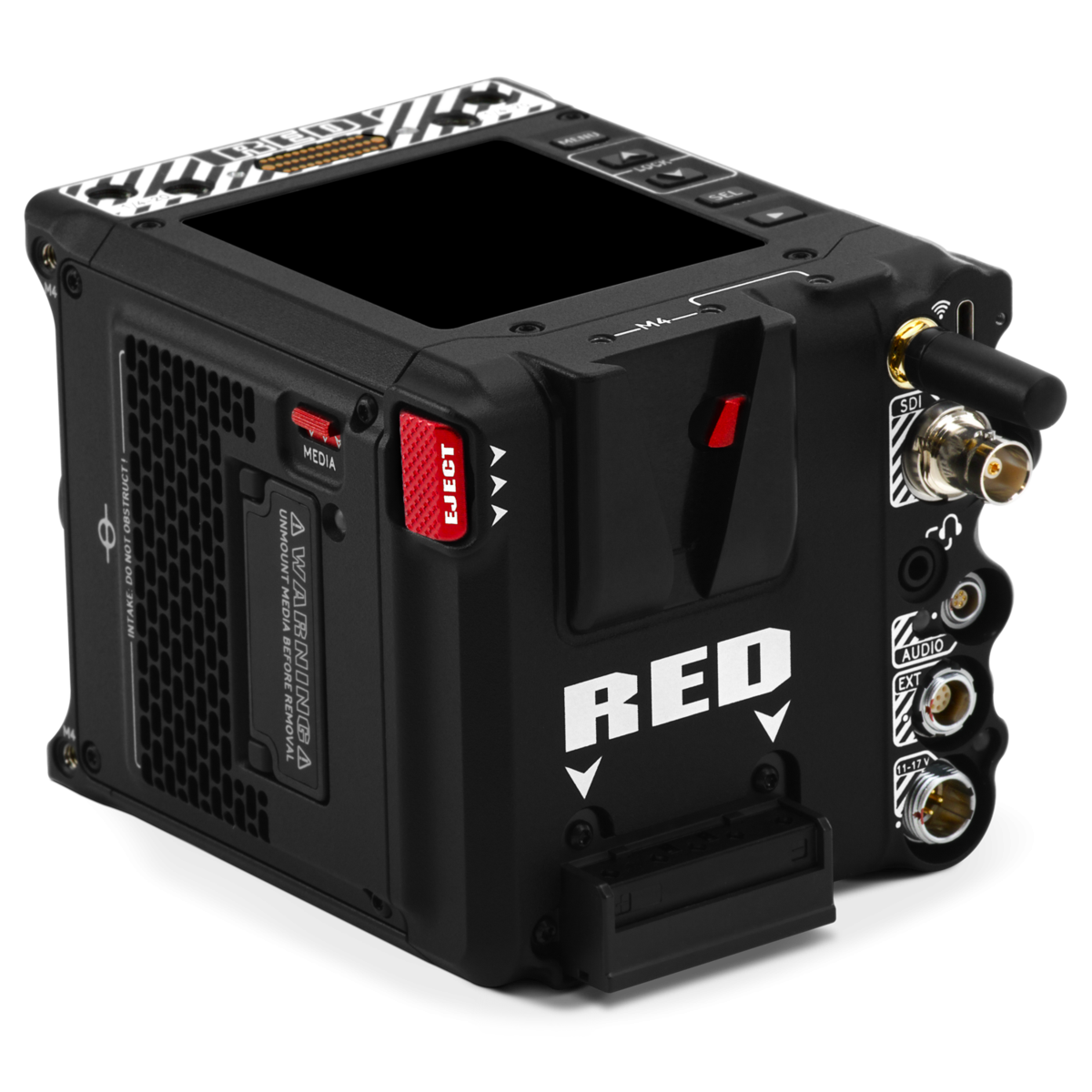

With key improvements for professional workflows, the KOMODO-X now shares many features with the DSMC3™ line while still maintaining the impressively small KOMODO form factor. An integrated micro V-Lock allows for direct attachment of professional micro V-Lock batteries without the need for adapters and is also compatible with the upcoming RED Pro I/O Module to provide auxiliary power and compatibility with full sized V-Lock and Gold Mount batteries.

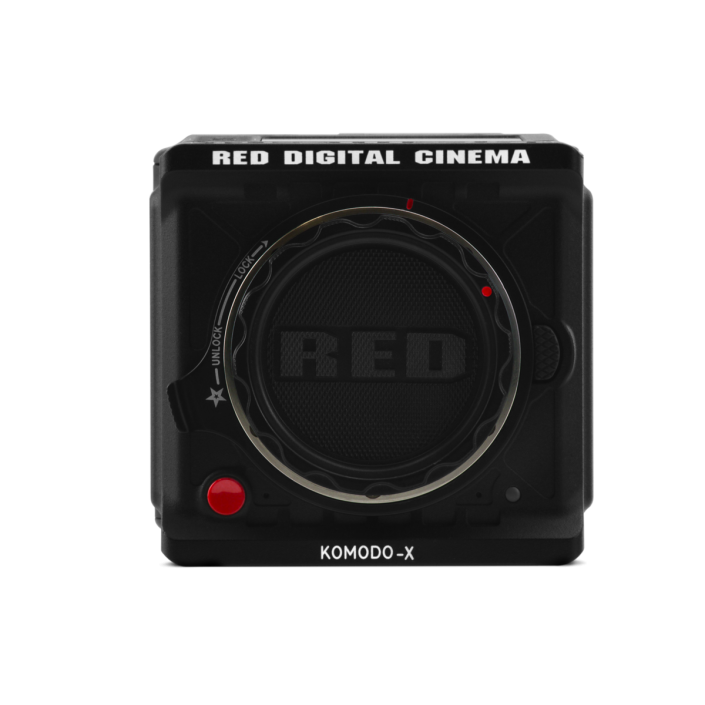

A reinforced RF lens mount with locking mechanism maintains the flexibility of toolless switching between multiple lens mount types, while providing the stability and rigidity professionals need. KOMODO-X is also fully compatible with /i PL lenses using the RED® RF to PL Adapter.

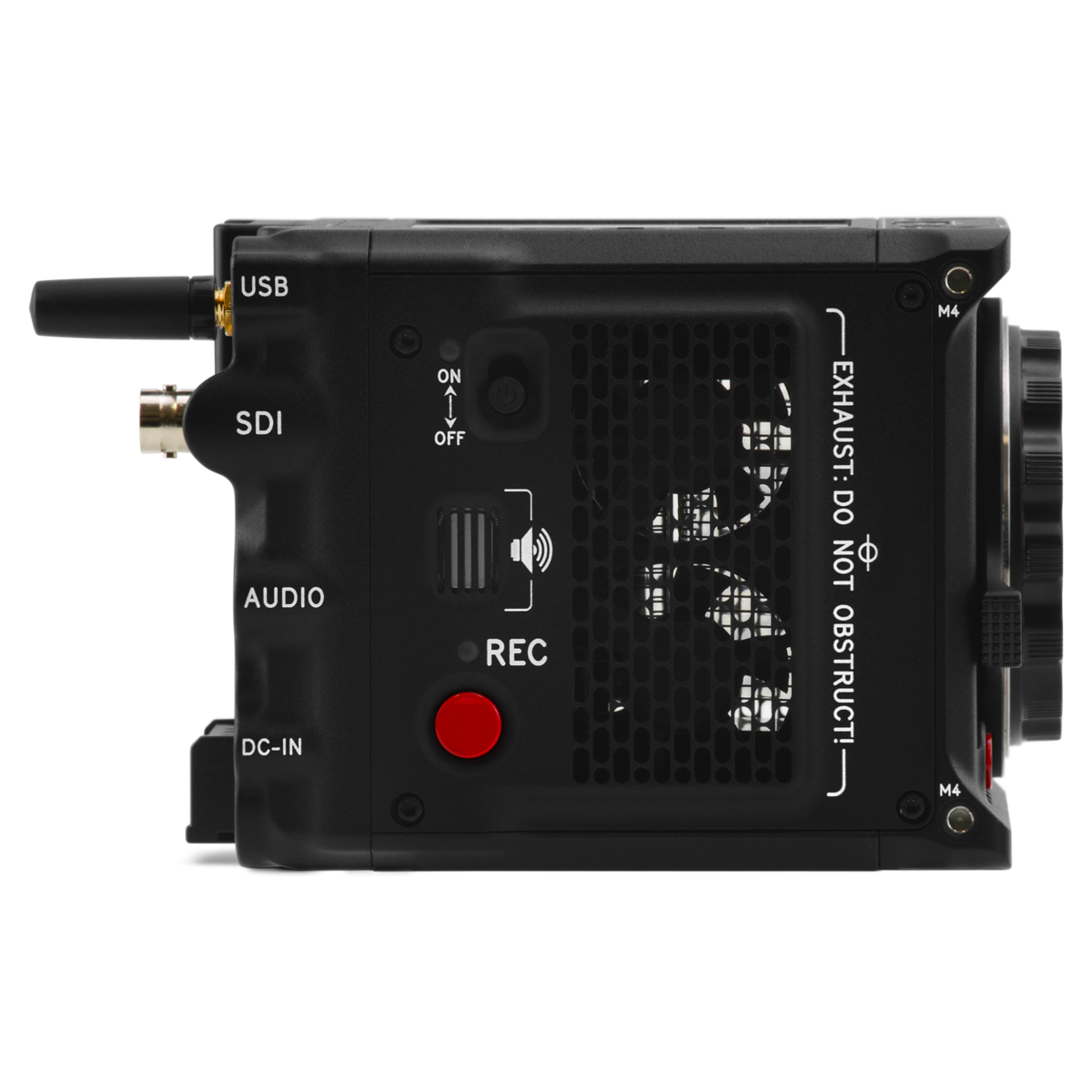

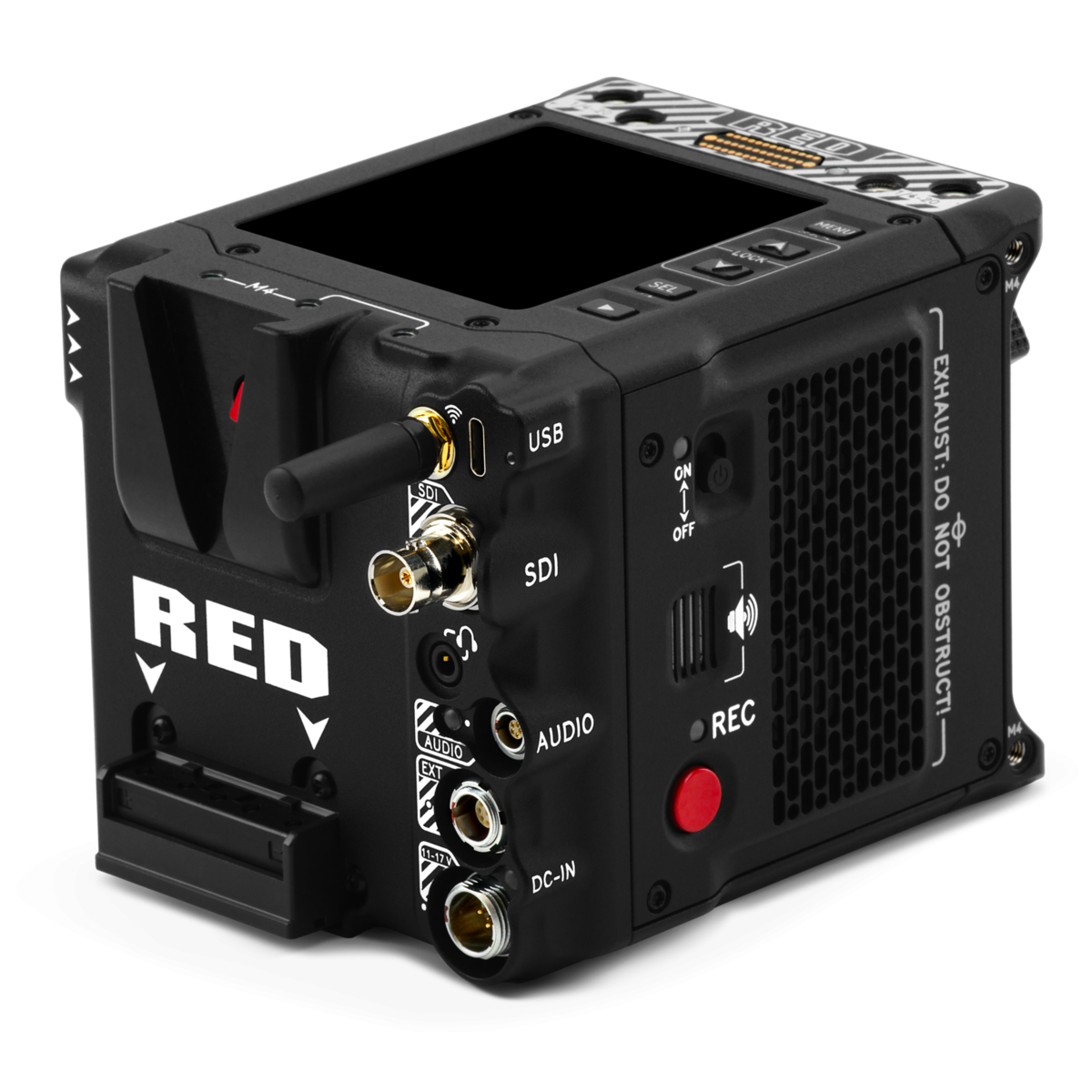

12G SDI, full sized DC-IN, USB Type-C, and a phantom powered locking audio connector further enables KOMODO-X to seamlessly integrate into any professional workflow. KOMODO-X is compatible with DSMC3™ RED® 5-Pin to Single 3.5mm Adapter to support existing KOMODO microphones, or the DSMC3™ RED® 5-Pin to Dual XLR Adapter for general purpose XLR microphones.
An integrated 2.9” LCD allows for simplified control and image preview in compact setups. For more precise monitoring, KOMODO-X supports the DSMC3™ RED® Touch 7.0" LCD which provides a daylight viewable, high-resolution, camera top monitor and control solution without the mess of cables.
IP CONNECTED
KOMODO-X is a powerful platform for any IP based workflow, from virtual production to live broadcast. With integrated USB Type-C connection and built-in Wi-Fi, remotely control the camera using RED Control or RED Control Pro, as well as IP media offloading using FTPS or in-camera Cloud Uploading functionality (Frame.io and S3). In addition, KOMODO-X supports frame-accurate PTP synchronization or tri-level genlock sensor sync with the ability to offset on the fly to support multi-camera LED volume productions.
KOMODO-X also supports RED Connect, a licensed feature that allows for live broadcasting of 6K images directly from the camera over IP, expanding RED’s cinematic imagery into boundless new uses.
INCLUDED:
- KOMODO-X Camera Body
- DSMC AC Power Adaptor Pack (150W)
- RED Logo Sticker
- KOMODO-X Information Card (incl. registration and support info)
- 1 Year Standard Warranty
STARTER PACK:
- 1x KOMODO-X Camera System
- 2x RED PRO CFexpress 1TB
- 1x RED CFexpress Card Reader
- 2x REDVOLT NANO-V
- 1x RED Compact Dual V-Lock Charger
- 1x KOMODO® Wing Grip
- 1x KOMODO® Outrigger Handle
- 1x DSMC3™ 5-Pin to Single 3.5mm Adapter
- 1x RED® EXT-to-Timecode Cable 3'
- 1 Year Standard Warranty (camera only)
PRODUCTION PACK:
- 1x KOMODO-X Camera System
- 1x DSMC3 RED Touch 7” LCD
- 2x RED PRO CFexpress 1TB
- 1x RED CFexpress Card Reader
- 1x RED Pro V-Lock or Gold Mount I/O Module
- 1x RED Compact Top Handle
- 1x DSMC3 RED 5-Pin to Dual XLR Adapter
- 1 Year Standard Warranty (camera only)
- SENSOR TYPE
- KOMODO-X 19.9MP Super 35mm Global Shutter CMOS
- EFFECTIVE PIXELS
- 6144 x 3240
- SENSOR SIZE
- 27.03 mm x 14.26 mm (Diagonal: 30.56mm)
- DYNAMIC RANGE
- 16.5+ stops
- MOUNT TYPE
- Integrated locking RF mount with electronic communication
Supports /i PL lenses with RED® RF to PL Adapters
Supports Canon EF Adapter with communication and other adapters based on the RF mount
- MAX DATA RATES
- Up to 560 MB/s using RED branded or other qualified CFexpress media cards[1]
- REDCODE® RAW MAX FRAME RATES
- 80 fps at 6K 17:9 (6144 x 3240)
96 fps at 5K 17:9 (5120 x 2700)
120 fps at 4K 17:9 (4096 x 2160)
240 fps at 2K 17:9 (2048 x 1080)
- PLAYBACK FRAME RATES (PROJECT TIME BASE)
- 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
- BEST AVAILABLE REDCODE® SETTINGS
- REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80 fps
- REDCODE® RAW ACQUISITION FORMATS2
- 2K 17:9 (2048 x 1080)
4K 17:9 (4096 x 2160) and 16:9
5K 17:9 (5120 x 2700) and 16:9
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1, and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
- APPLE PRORES
- Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps
- CONSTRUCTION
- Aluminum Alloy
- DIMENSIONS
- 129.37 x 101.26 x 95.26 mm / 5.1 x 4 x 3.8 in (LxWxH, largest fixed dims.)
- WEIGHT
- 2.62lbs (without body cap and CFexpress card)
- BATTERY TYPE
- Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
- DC POWER INPUT
- 11-17V via 6-pin DC-IN
- OPERATING TEMPERATURE
- 0°C to 40°C (32°F to 104°F)
- STORAGE TEMPERATURE
- –20°C to 50°C (–4°F to 122°F)
- STORAGE HUMIDITY
- 0% to 85% non-condensing
- COLOR MANAGEMENT
- Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import and adjustment of CDLs
- AUDIO
- Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
- AUTOFOCUS
- Phase Detect and Contrast
- MONITOR OPTIONS
- 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control
Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
Proprietary Top Accessory Port for Monitoring and Control
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
