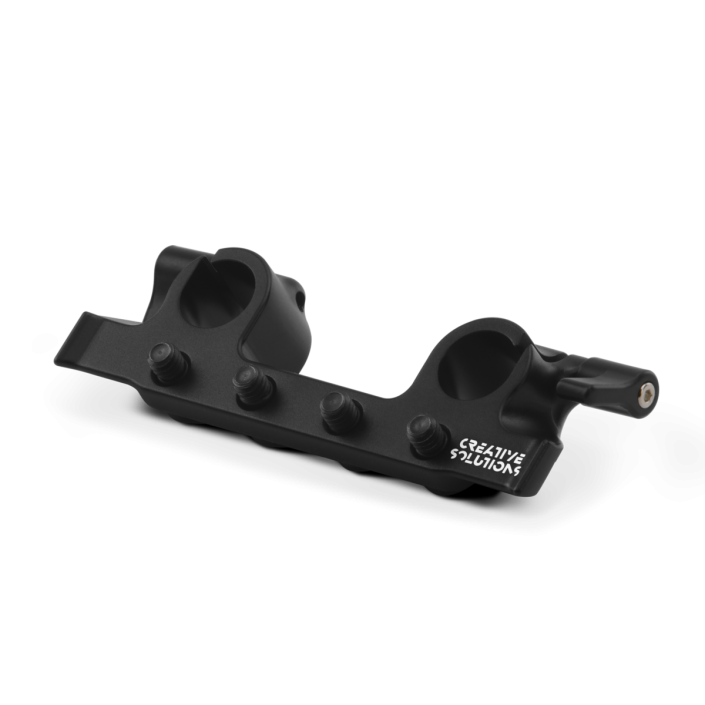

V-RAPTOR XL ROD SUPPORT BRACKETS

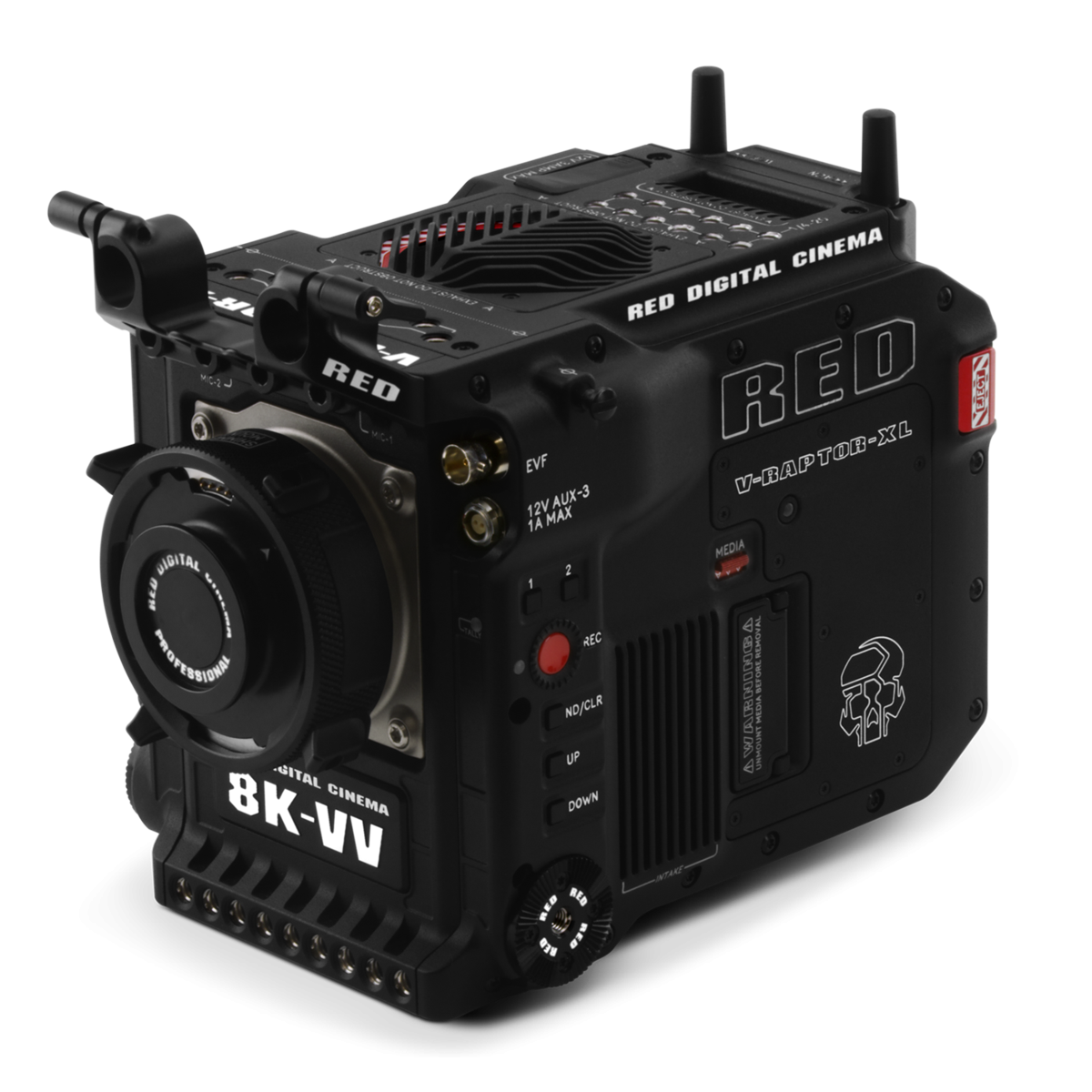

The V-RAPTOR™ XL Bottom 15 mm Rod Support Bracket securely attaches to the bottom of the camera or to the V-RAPTOR™ XL Riser Plate, and it provides two 15 mm LWS spaced rod clamps, allowing for mounting of accessories such as matte boxes and focus, iris, zoom motors.

Read moreShow less
USD 199.00
ROD SUPPORT BRACKETS
  • TOP BRACKET
  • BOTTOM BRACKET
IN STOCK
Qty
Enquire Now
Wishlist0
Description

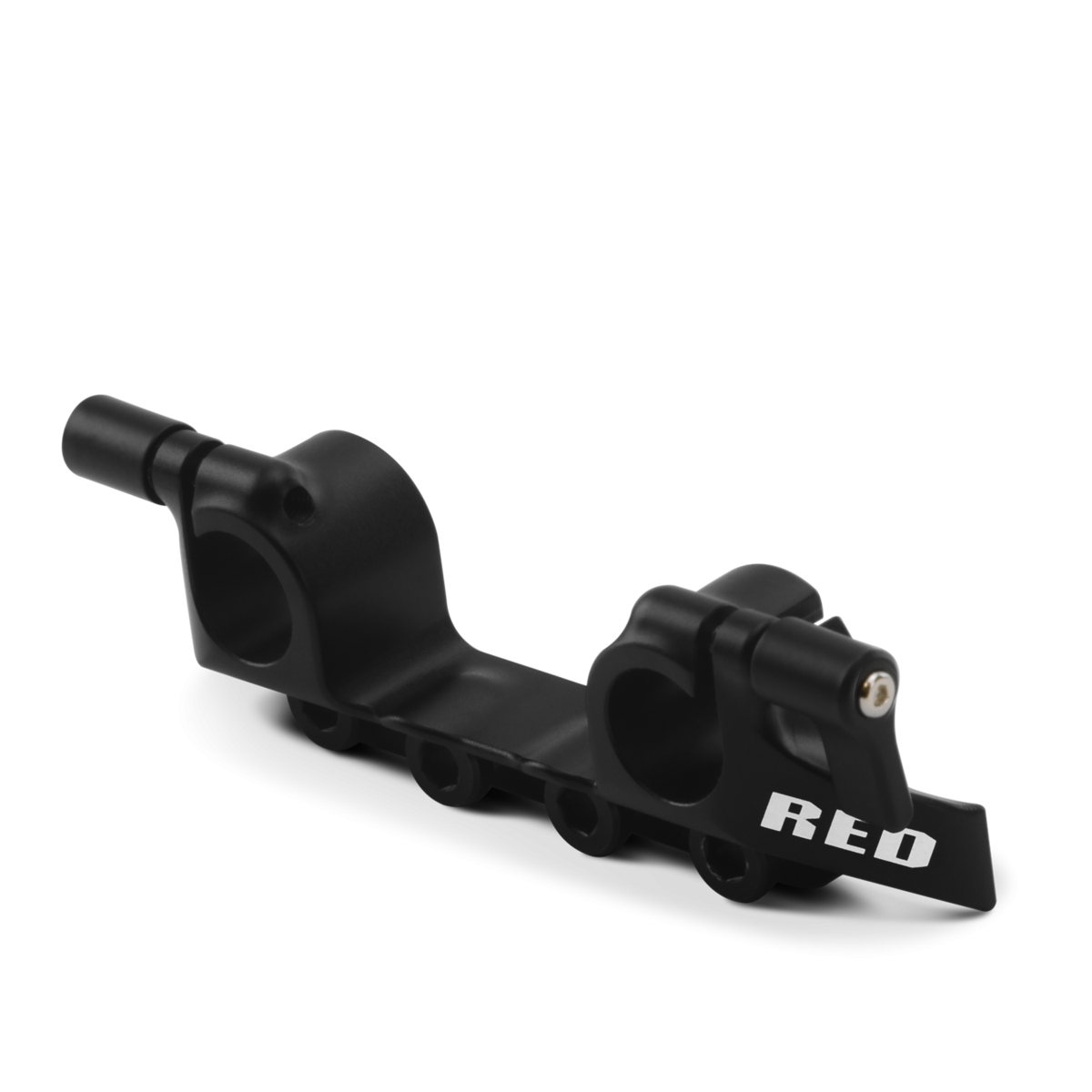

TOP BRACKET

Can be mounted on camera via 4x Integrated Top 1/4-20 Threads

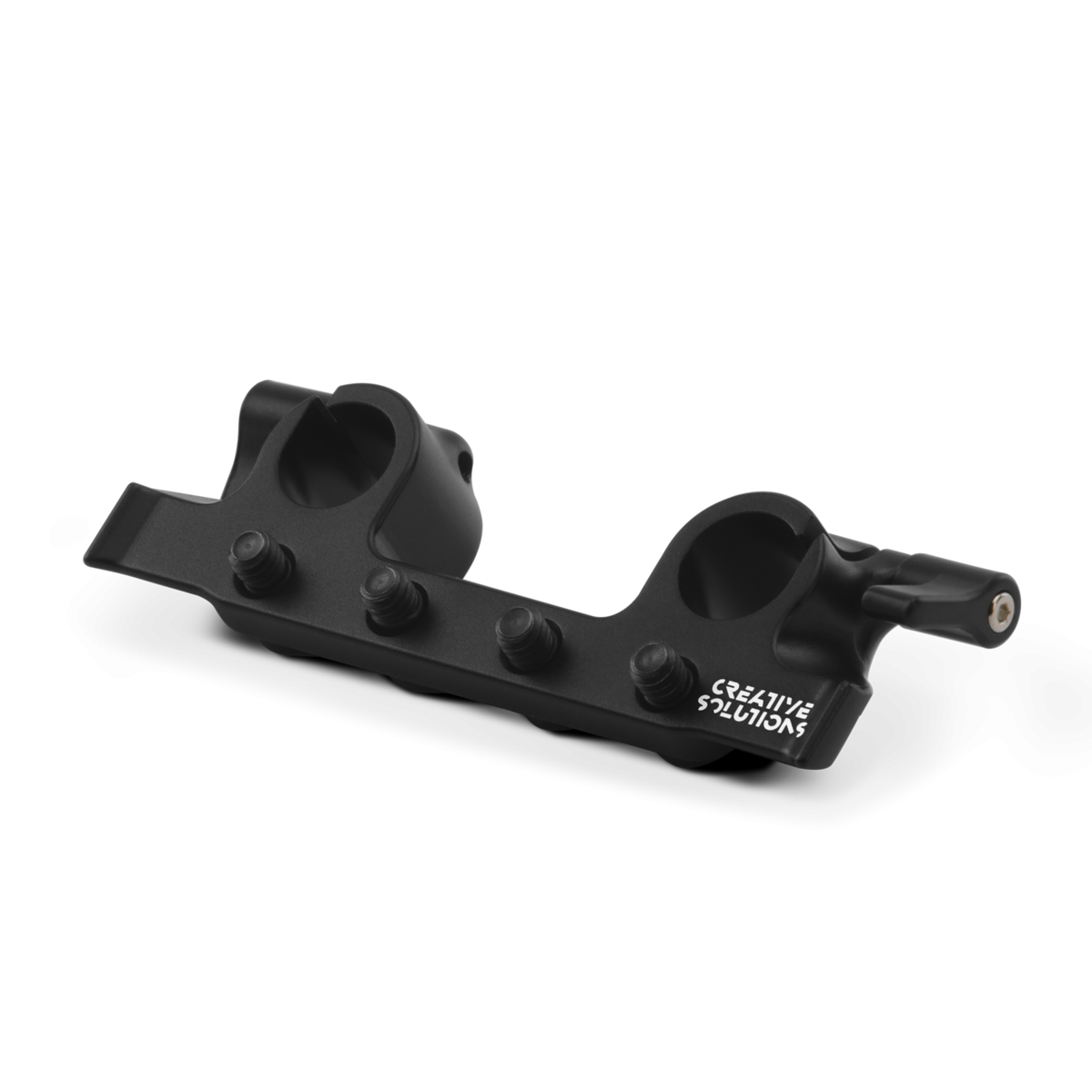

BOTTOM BRACKET

Can be mounted on camera via 2x Integrated 1/4-20 Threads and optionally 2x M4 threads on V-RAPTOR XL Riser Plate

Read moreShow less
Specifications
790-0717
DIMENSIONS
Depth: 4.91 in (124.60 mm)​
Height: .79 in (20.0 mm)​
Width: 1.37 in (34.80 mm)​
WEIGHT
Approximately 0.19 lbs (87.07 g)​​​​
MATERIAL
7075 Aluminum
OPERATING TEMPERATURE
0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE
–20°C to 50°C (–4°F to 122°F)
