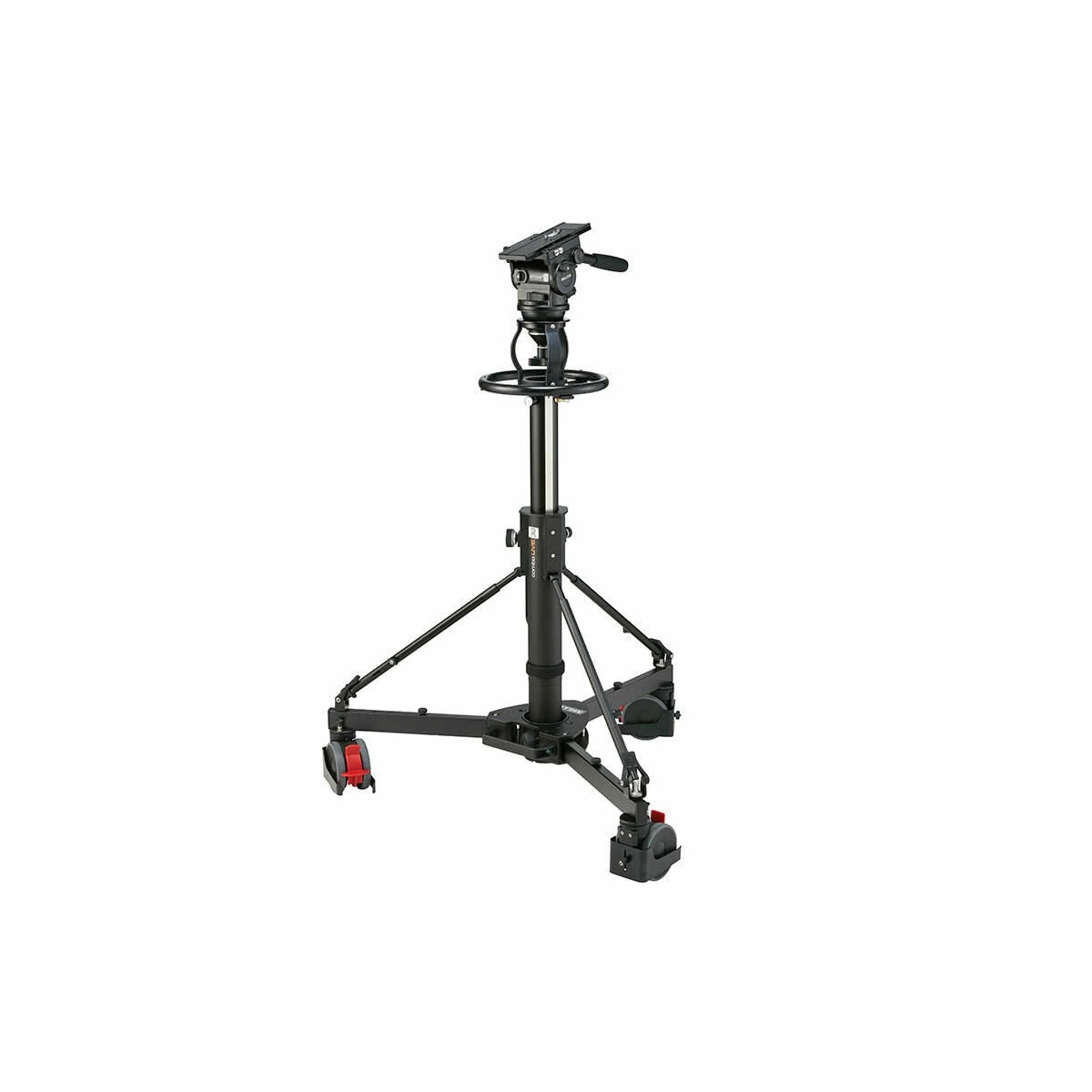

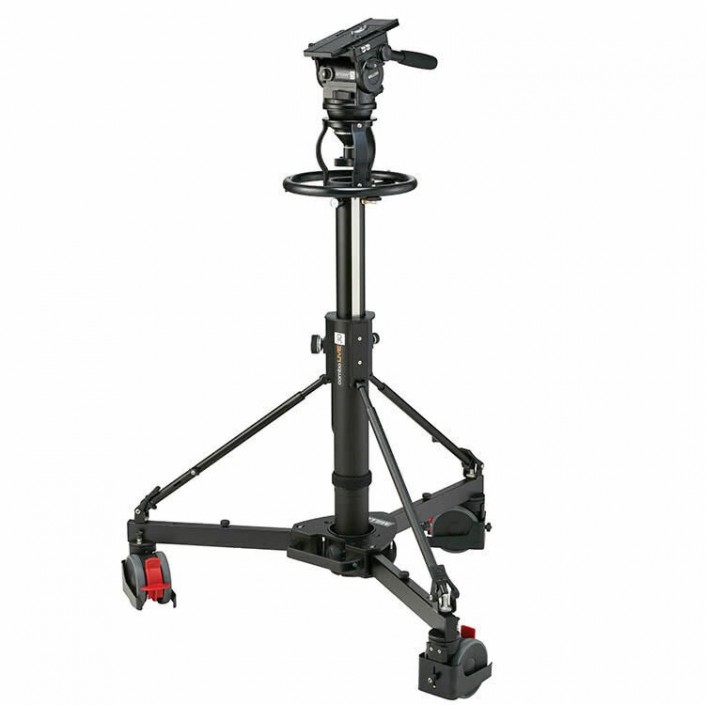

Pedestal system Arrowx 5 Combo Live 30

The 3250 Arrowx 5 Combo Live 30 pedestal offers light weight portability employing an air adjustable column system that delivers perfect camera balance with a height range of 972mm (38.2”) up to 1537mm (60.5”) with precise, smooth, low noise in-shot 450mm (17.7”) elevation stroke for payloads 2-21kg (4.4-46.2lbs).

Read moreShow less
USD 12,717.00
IN STOCK
Qty
Enquire Now
Wishlist0
Description

Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth effortless movement, featuring multiple wheel locking positions for linear or radius dolly tracking.

With its sturdy construction it delivers maximum stability with reliable and simple to use features.

The 3250 comes fitted with Arrowx 5 fluid head which features a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 5 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

2-21kg (4.4-46.2lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 5 ideal for Studio and EFP, enabling it to be used with a wide range of cameras, lenses and accessories and offering.

This makes the Combo Live 30 Pedestal series a high performer offering perfect option for live broadcast studios looking for a versatile pedestal that punches above its weight.

  • 7 selectable positions of fluid pan and tilt drag + 0.
  • 16 position CB Plus™ counterbalance system.
  • Perfect for payloads to 2-21kg (4.4-46.2lbs).
  • Wide height range 972mm (38.2”) up to 1537mm (60.5”).
  • Precise, smooth and low noise In-shot column with 450mm (17.7”) stroke.
  • Air adjustable column system for quick payload balancing.
  • Independent dolly wheel axle brake system eliminates wheel tyre indents.
  • Multiple wheel positions for linear or radius dolly tracking.
  • 125mm (4.9”) dual ball bearing wheels for quick swivel-turn action.
  • Centre hub locking column with adjustable spider arm supports.
  • Steering wheel diameter 294mm (11.6”).
  • Dolly tracking width 970mm (38.2”).
  • Sturdy adjustable cable guards.
  • Portable hand pump with pressure gauge.

Payload Range 2.0-21.0kg (4.4-46.2lbs)
Weight 21.8kg (48.0lbs)
Height Range 972-1537mm (38.2-60.5")
Mounting Base Ø100mm (3.9") ball levelling
Column In-Shot Stroke 450mm (17.7")
Steering Wheel Diameter Ø294mm (11.6")
Tracking Width 970mm (38.2")
Wheel Diameter Ø125mm (4.9")
Components
1074 Arrowx 5 fluid head
696 2 x Pan handle - telescopic with clamp
3220 Combo Live 30 pedestal
Read moreShow less
Specifications
CAT3250
WEIGHT
21.8kg
