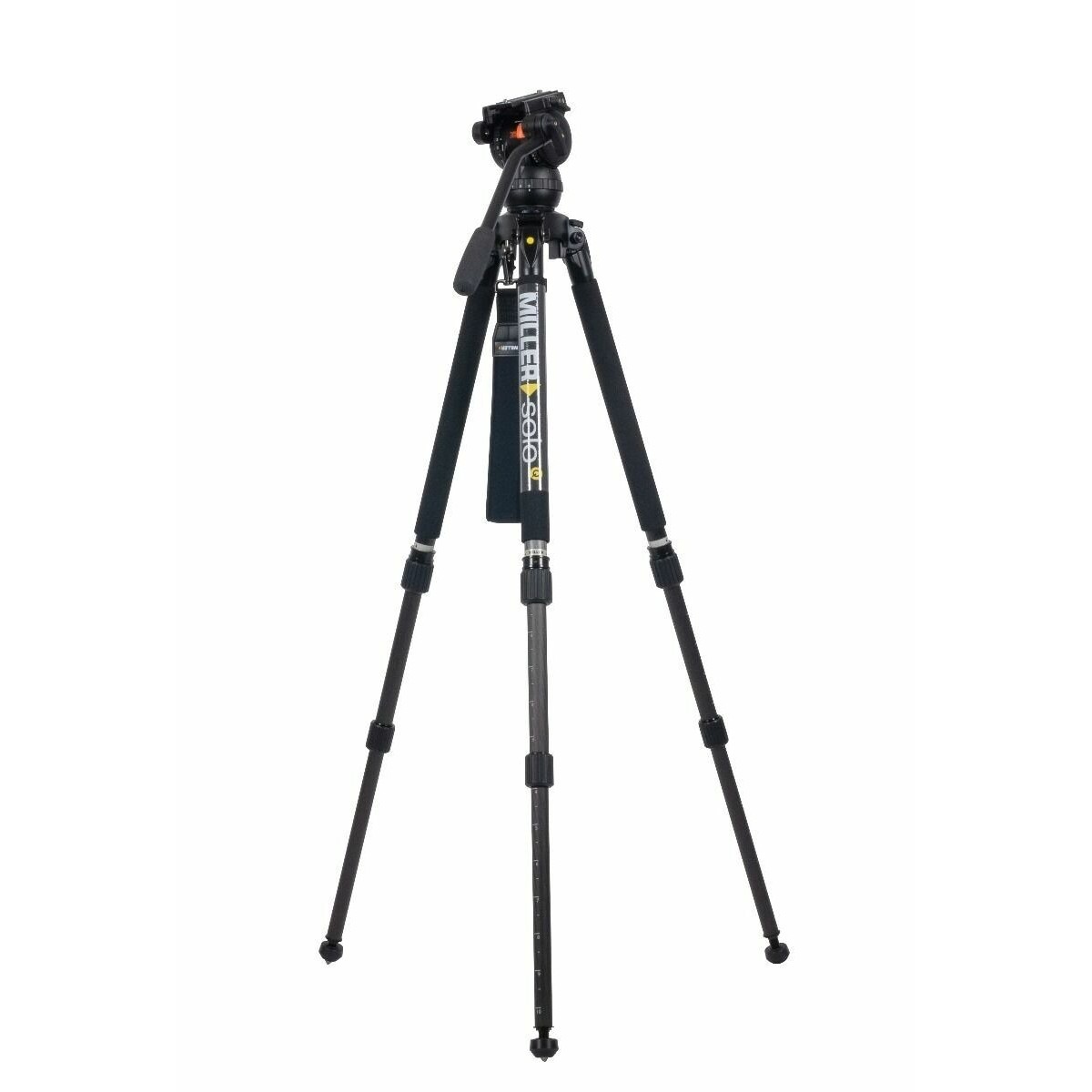

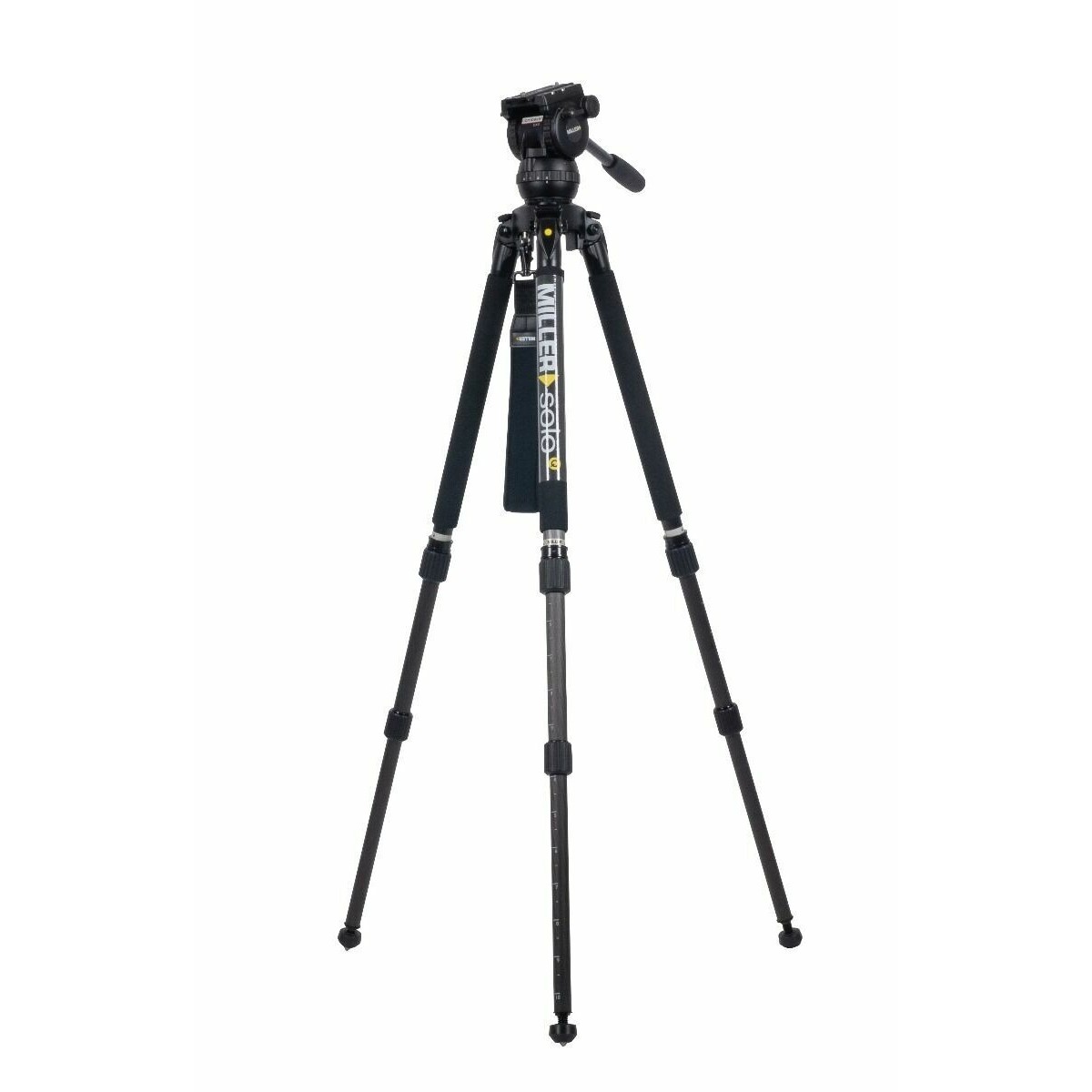

Tripod system CX2 Solo-Q 75 2-stage (carbon fibre)

The 3712 CX2, Solo-Q 75 2-stage (carbon fibre) system consists of the CX2 fluid head and the ultra-light yet rigid 2500 Solo-Q 75 2-Stage Carbon Fibre Tripod. The system is designed to suit payload capacities from 0 to 8kg. Featuring concentric self-adjusting leg locks, Q Lock and light high strength telescopic tubing.

Read moreShow less
USD 2,268.00
IN STOCK
Qty
Enquire Now
Wishlist0
Description

The CX2 employs CB Plus™ technology providing 16 positions of counterbalance and, with 3+0 settings of Miller's unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

The CX2 is matched with the 2-stage Solo-Q (carbon fibre) tripod that results in a working height range of 412-1800mm (16.2-70.8”), offering rapid action twist locks on independent stages and the versatility of Q-Lock to set up the system across all terrains.

  • Compact, light and versatile.
  • 75mm ball levelling.
  • Perfect for payloads to 0-8kg (17.6lbs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 3+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 2-stage rapid leg lock extension.
  • Q-Lock for rapid set-up and stowage.
  • Lightweight carbon fibre legs.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.

Payload Range 0-8kg (0-17.6lbs)
Weight 5.5kg (12.2lbs)
Height Range 412-1800mm (16.2-70.8”)
Transport Length 864mm (34”)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 3 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4")
Mounting Base Ø75mm (2.9”) ball levelling
Height Above Bowl 167mm (6.6")
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4")
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage telescopic
Lock Type Concentric Rapid Lock & Q-Lock
Leg Material Carbon fibre
Components

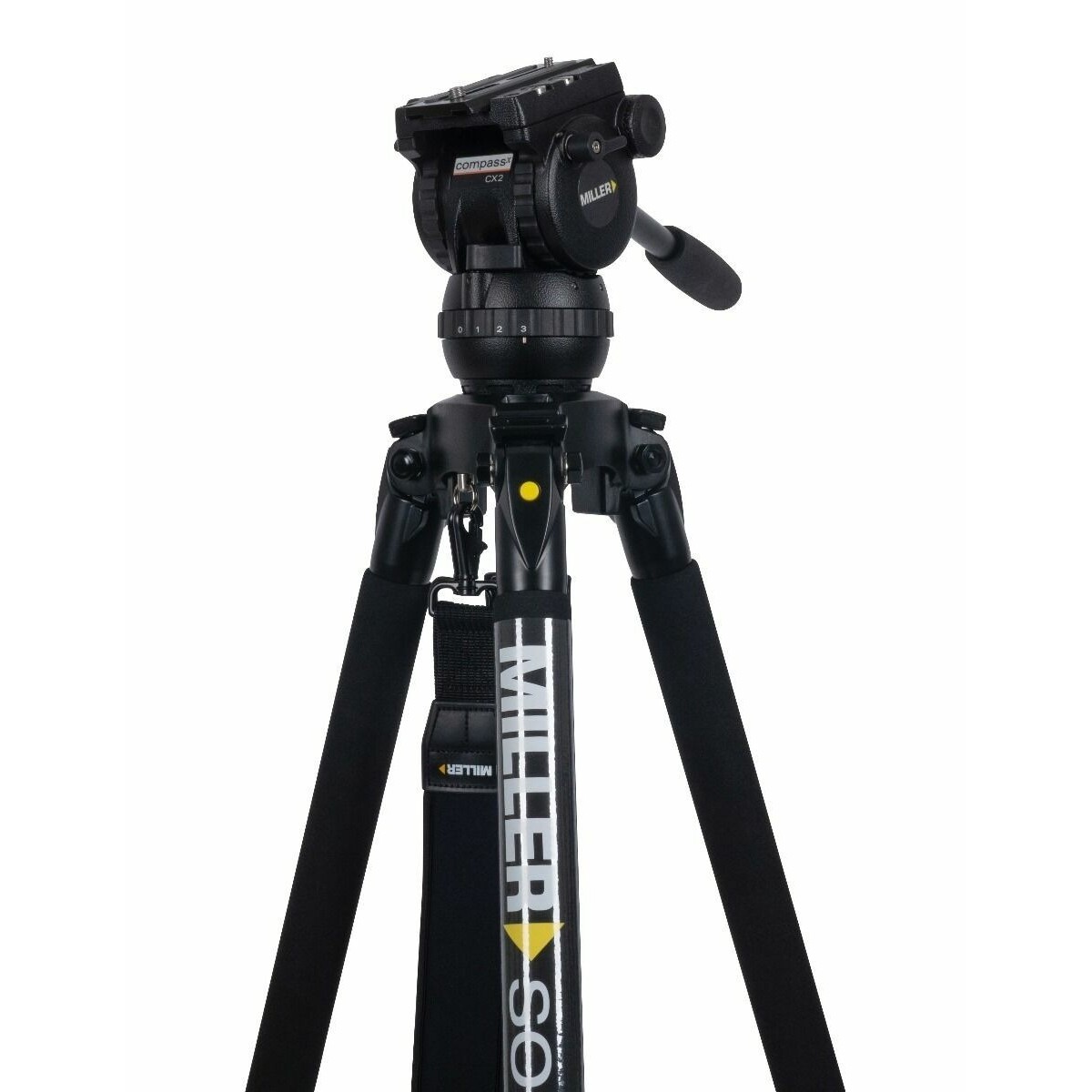

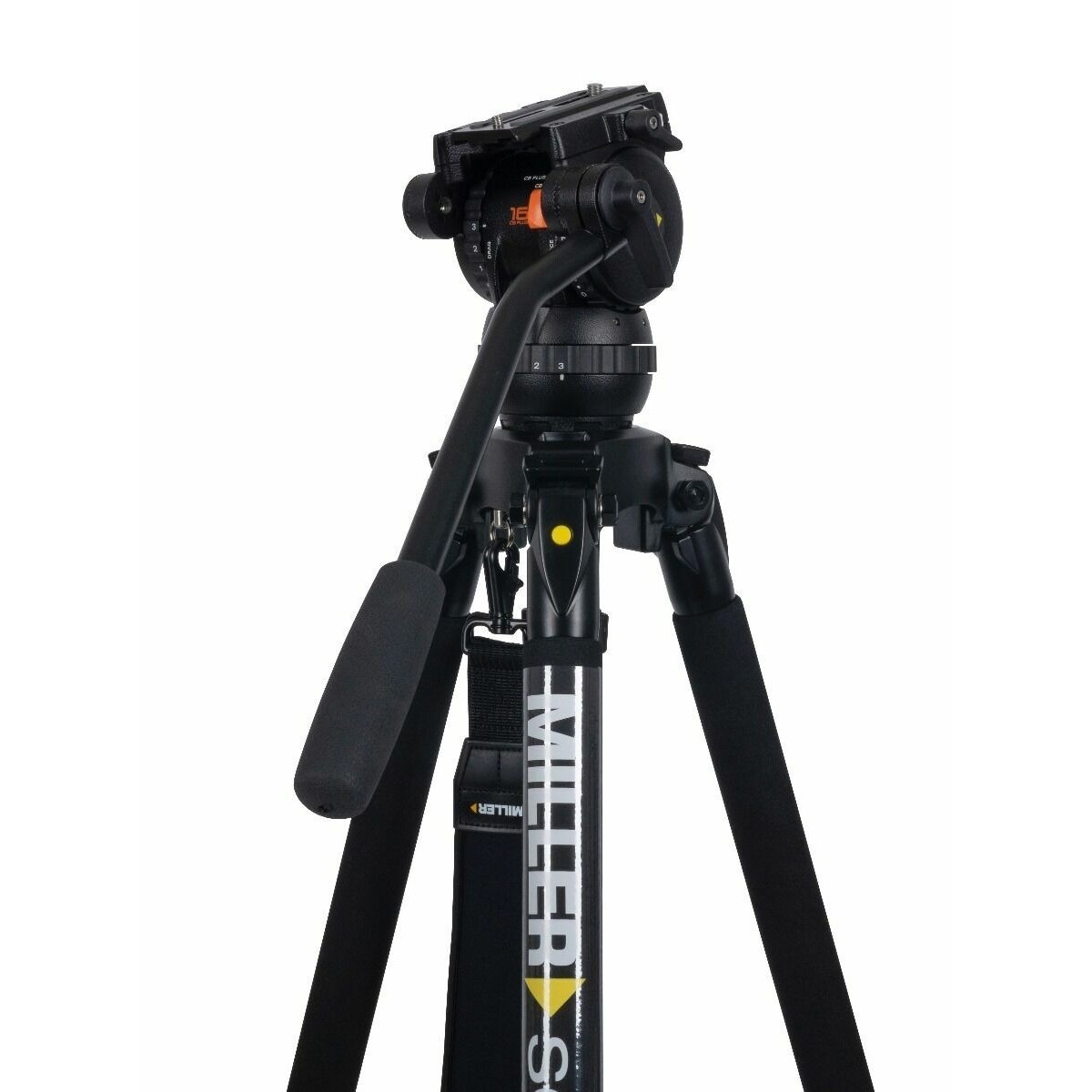

1090 CX2 fluid head
2500 Solo-Q 75 2-stage tripod (carbon fibre)
679 Pan handle - fixed with clamp
1520 Solo-Q shoulder strap (Aircell)

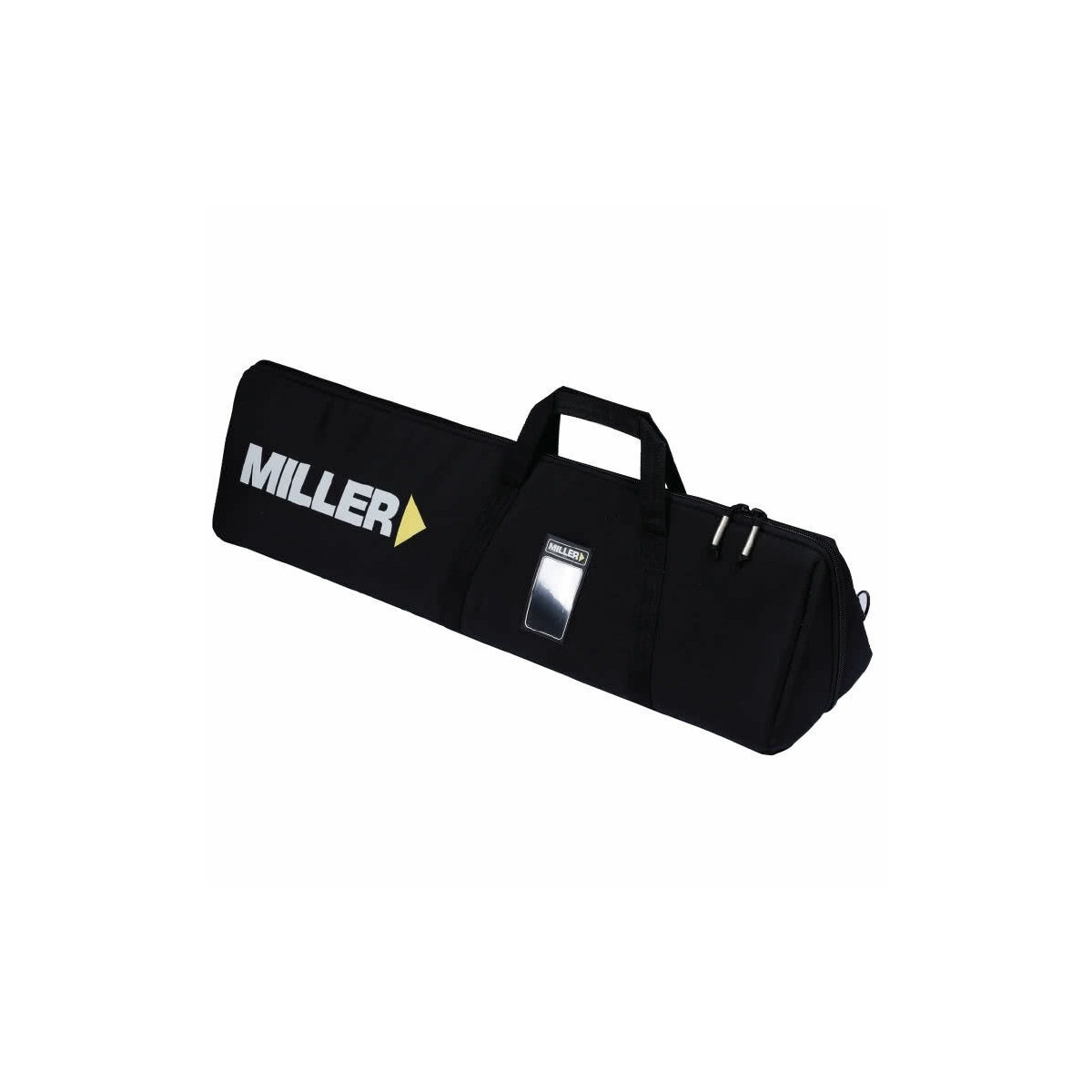

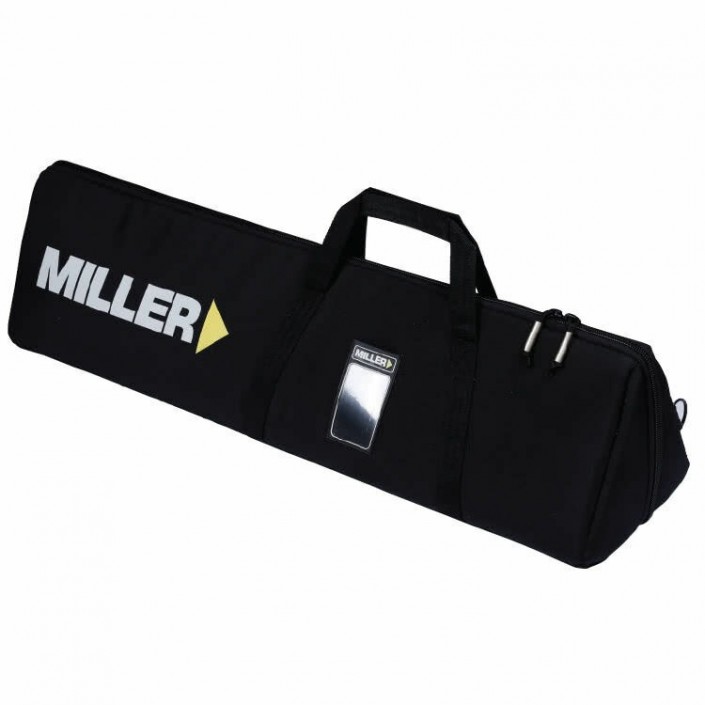

3514 Softcase 2-stage
Read moreShow less
Specifications
CAT3712
WEIGHT
5.5kg
MATERIAL
Carbon Fibre
OPERATING TEMPERATURE
-40° to +65°C
