Tripod System DS20 Toggle 2 Stage alloy

The 850 DS20 Toggle 2-stage system provides two stage height versatility in a solid, highly reliable support package providing users with a cost-effective support option of full broadcast performance.

Read moreShow less
USD 2,328.00
IN STOCK
Qty
Enquire Now
Wishlist0
Description

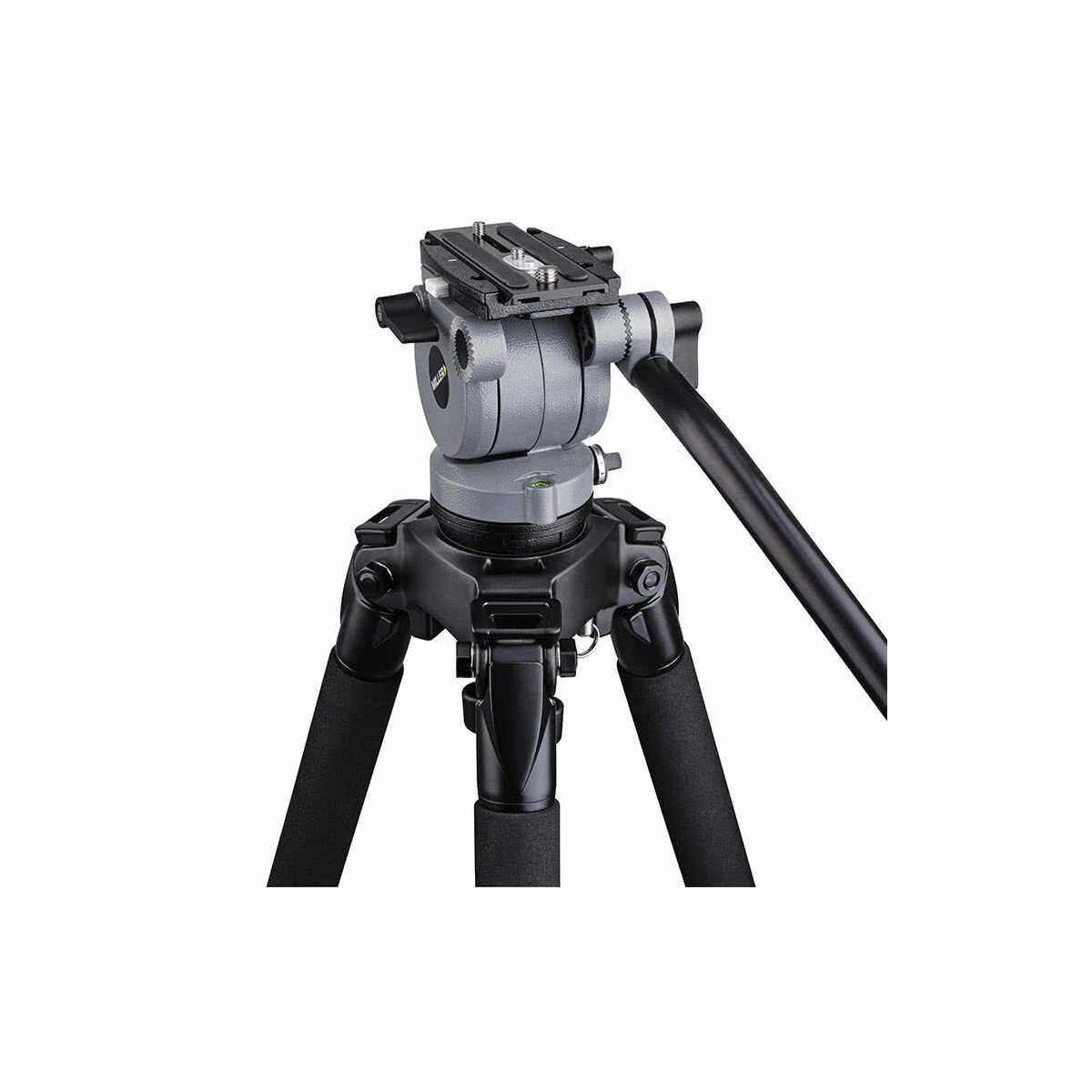

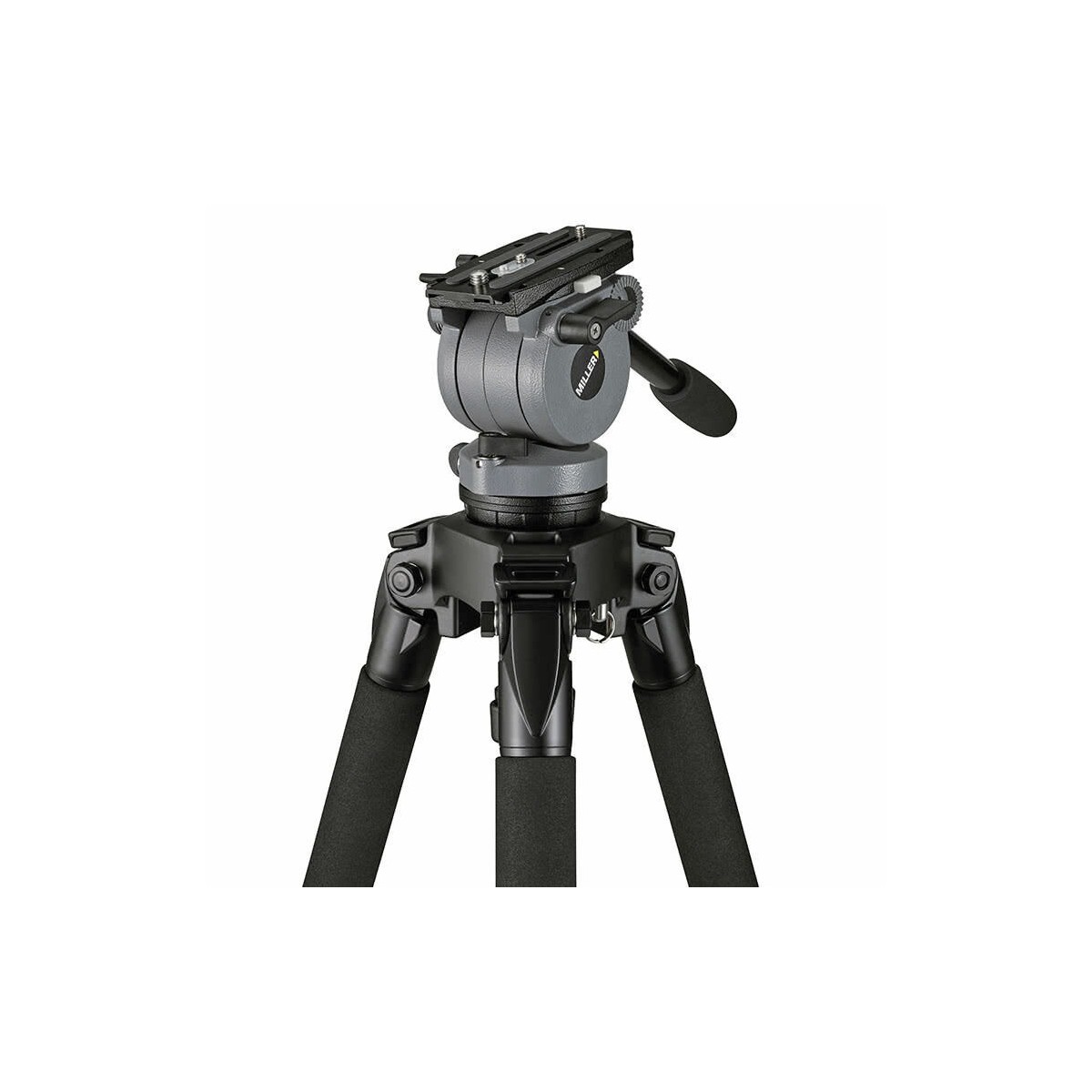

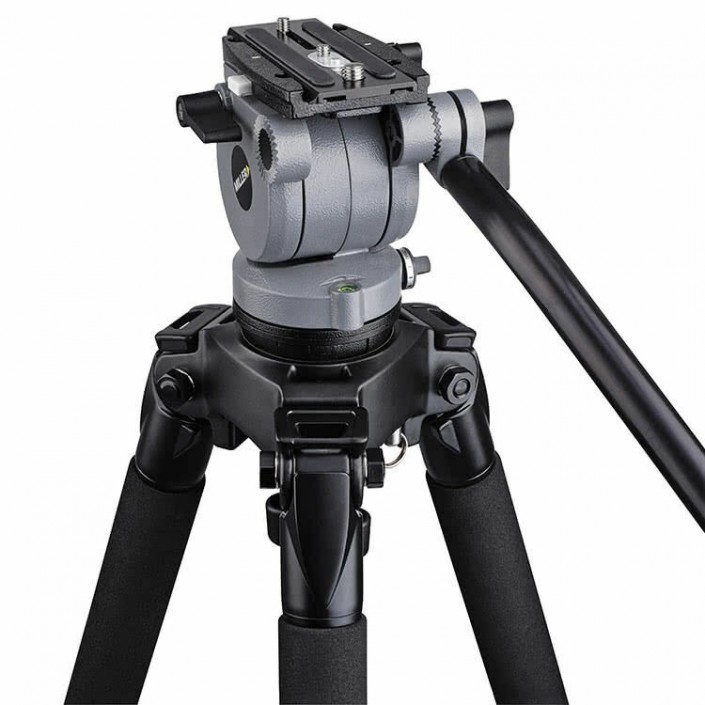

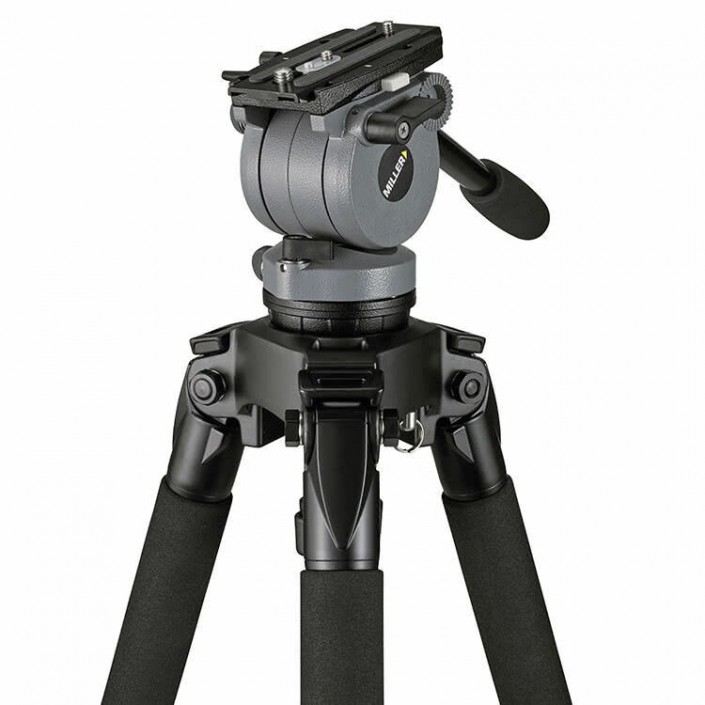

The DS20 fluid head provides a perfect lightweight solution for those who want a smaller fluid head with a greater capacity for payloads up to 10kg (22lbs).

Whether you are in the field or configured for small studio use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.

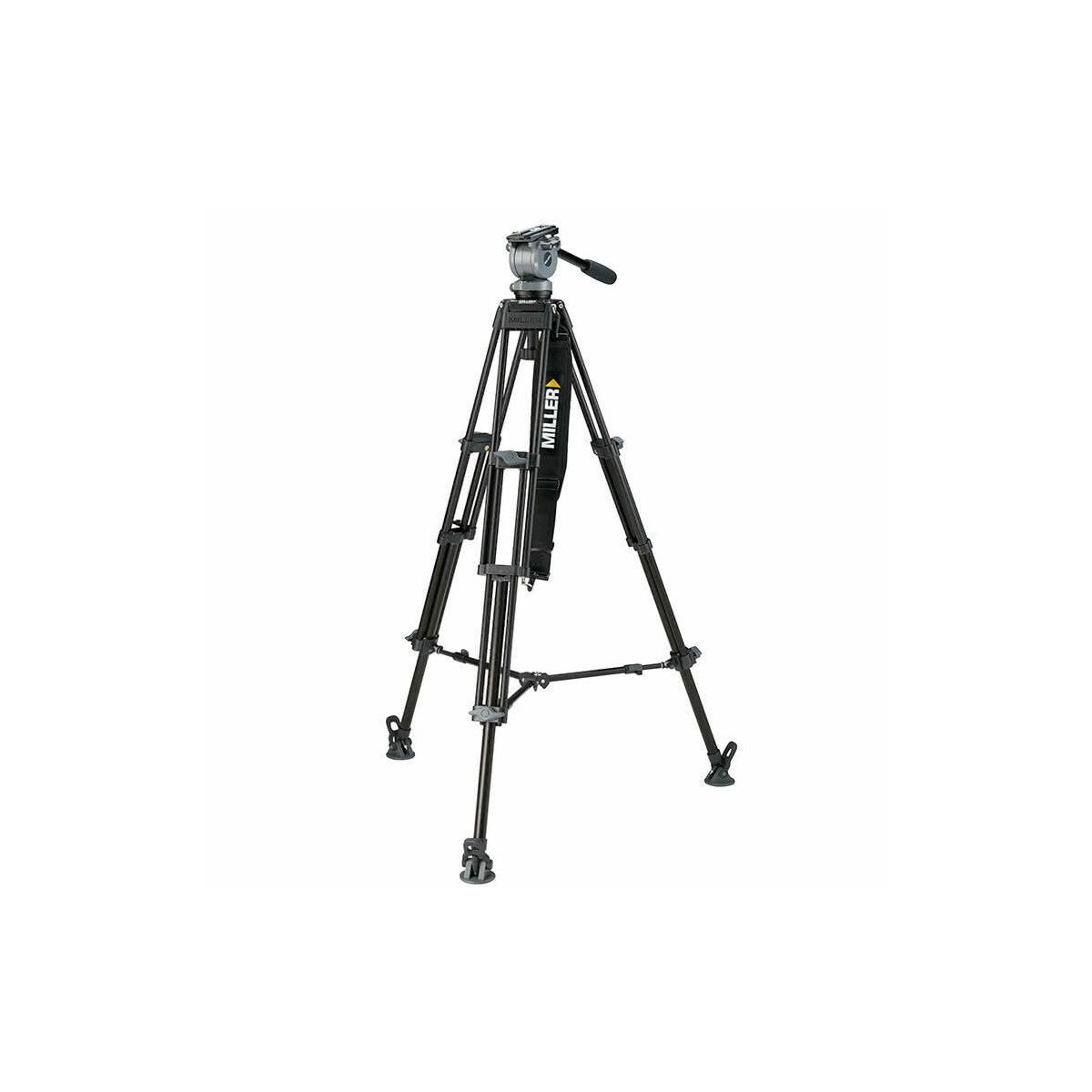

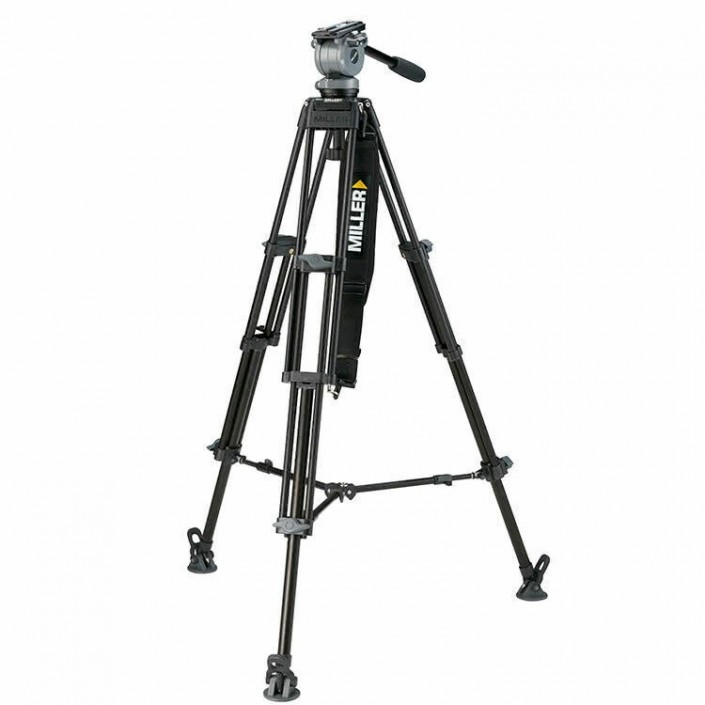

The DS20 is matched with the 2 stage Toggle (alloy) tripod and above ground spreader to give a large height range 527-1697mm (20.7-66.8"), positive leg toggle locks and quick pack down. Whatever your application the results achieved by using the 848, DS20/Toggle system will impress your clients.

  • Compact, lightweight and a hi-performer.
  • Consistent fluid drag performance in extreme environments.
  • 2 selectable positions of counterbalance.
  • Perfect for camera payloads to 5-10kg (11-22lbs).
  • Integrated 75mm bowl.
  • 2-stage fast toggle adjustment legs.
  • Durable black anodised alloy tubing.
  • Above ground spreader.
  • 3 year warranty.

Payload Range 5.0-10.0kg (11.0-22.0lbs)
Weight 5.8kg (12.9lbs)
Height Range 527-1667mm (20.7-65.6")
Transport Length 827mm (32.6”)
Counterbalance Positions 2 selectable positions
Pan Tilt Drag Adjustable fluid drag, temperature resistant
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Sliding camera plate
Sliding Range 60mm (2.4")
Mounting Base Ø75mm (2.9") ball levelling
Height Above Bowl 137mm (5.4")
Pan Handle Fixed length 390mm (15.4")
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type Toggle
Leg Material Alloy
Components
184 DS20 fluid head
420 Toggle 75 2-stage tripod (alloy)
508 Above ground spreader
550 Rubber feet (set of 3)
681 Pan handle - fixed with clamp
554 Shoulder strap (padded)

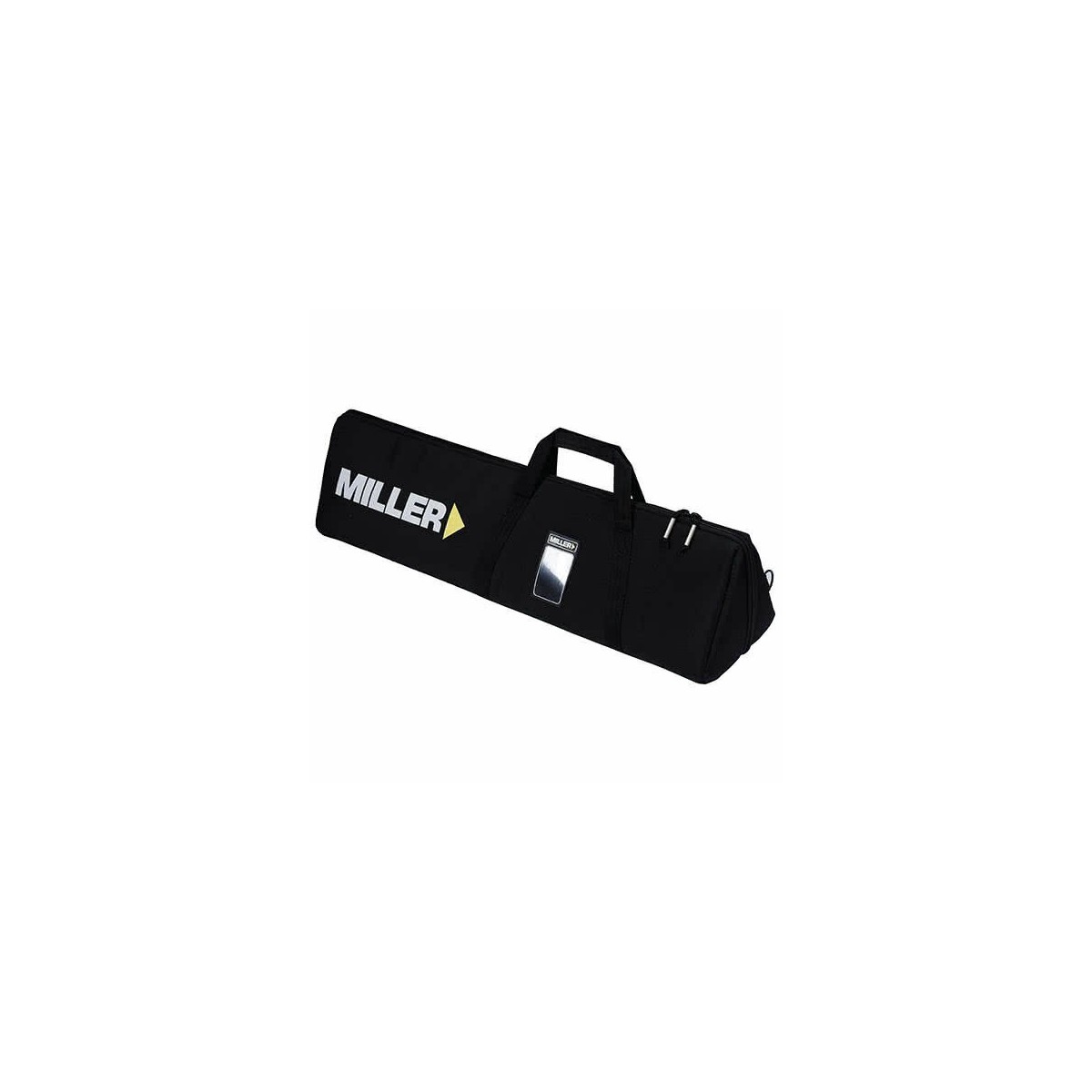

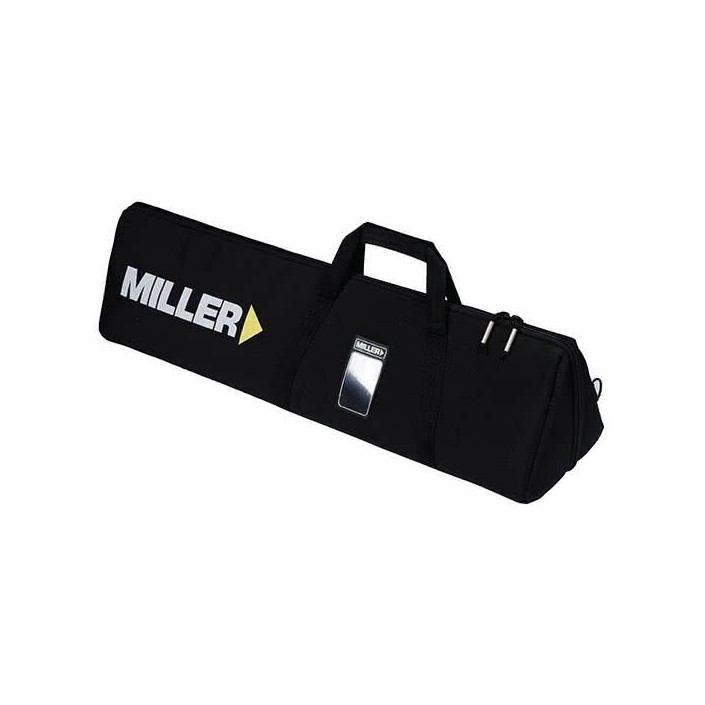

3514 Softcase 2-stage
Read moreShow less
Specifications
CAT850
WEIGHT
5.8kg
MATERIAL
Alloy
OPERATING TEMPERATURE
-40° to +65°C
