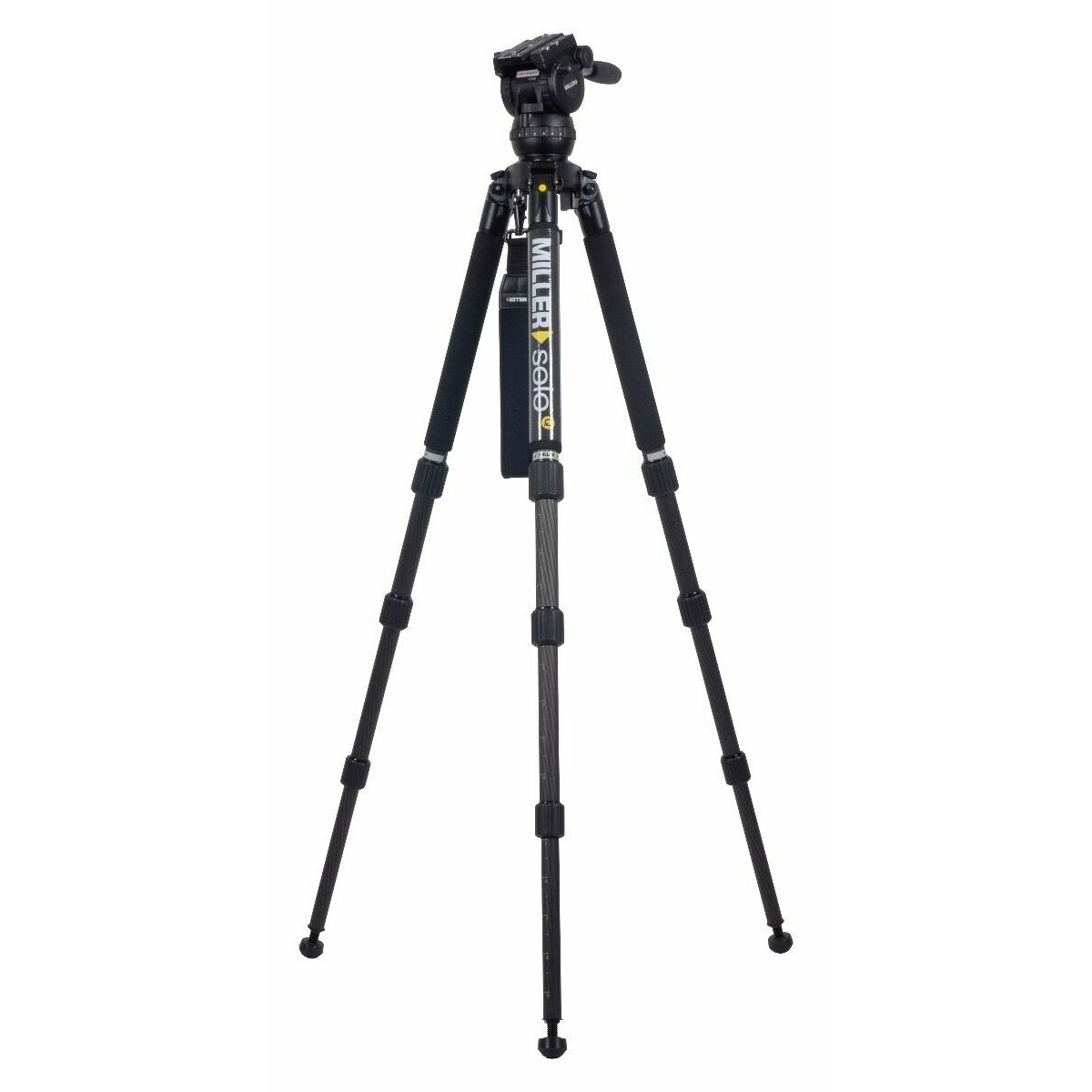

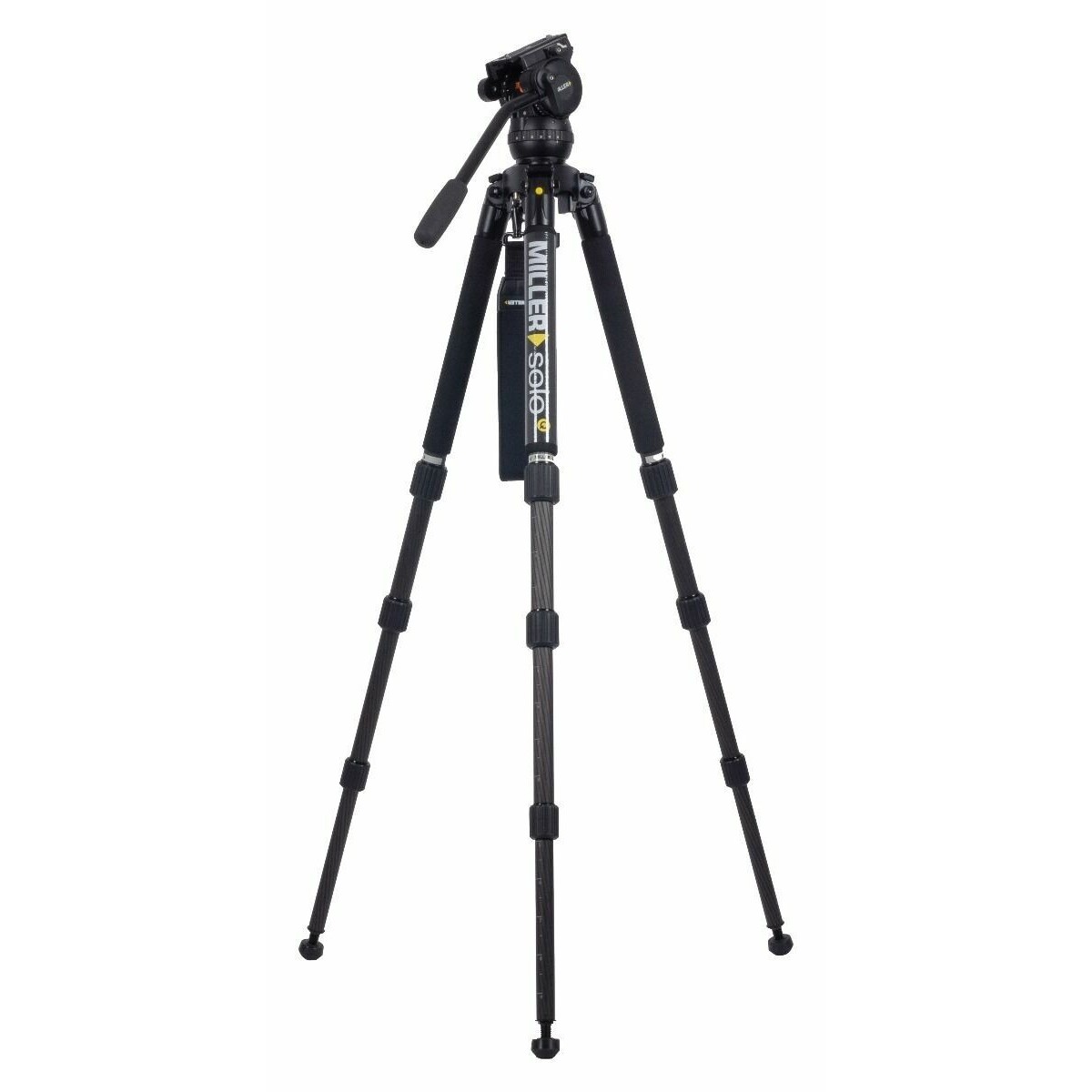

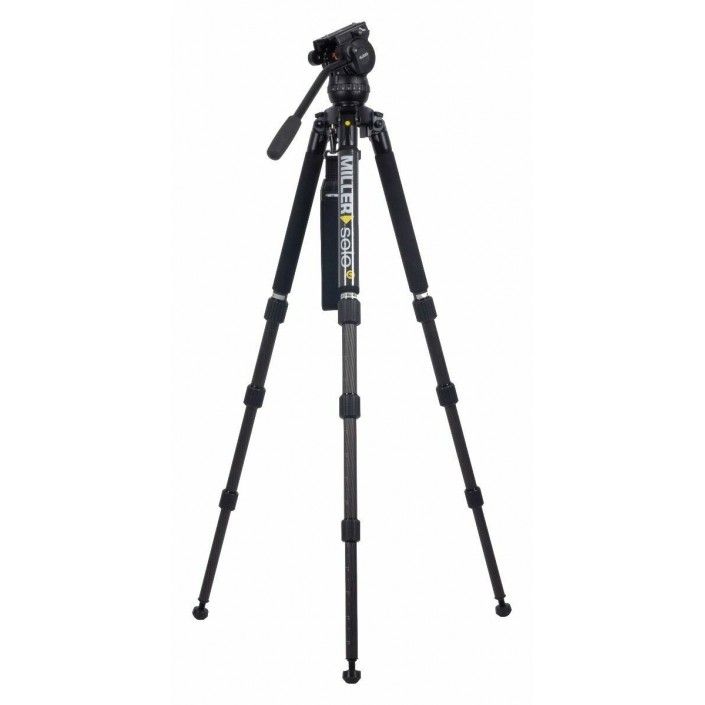

Tripod system CX8 Solo 75 3 stage carbon fibre

The 3746 CX8, Solo-Q 75 3-stage (carbon fibre) tripod system consists of the CX8 fluid head. and the ultra-light, super rigid Solo-Q 75 3-stage Carbon Fibre Tripod. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.

Read moreShow less
USD 3,391.00
IN STOCK
Qty
Enquire Now
Wishlist0
Description

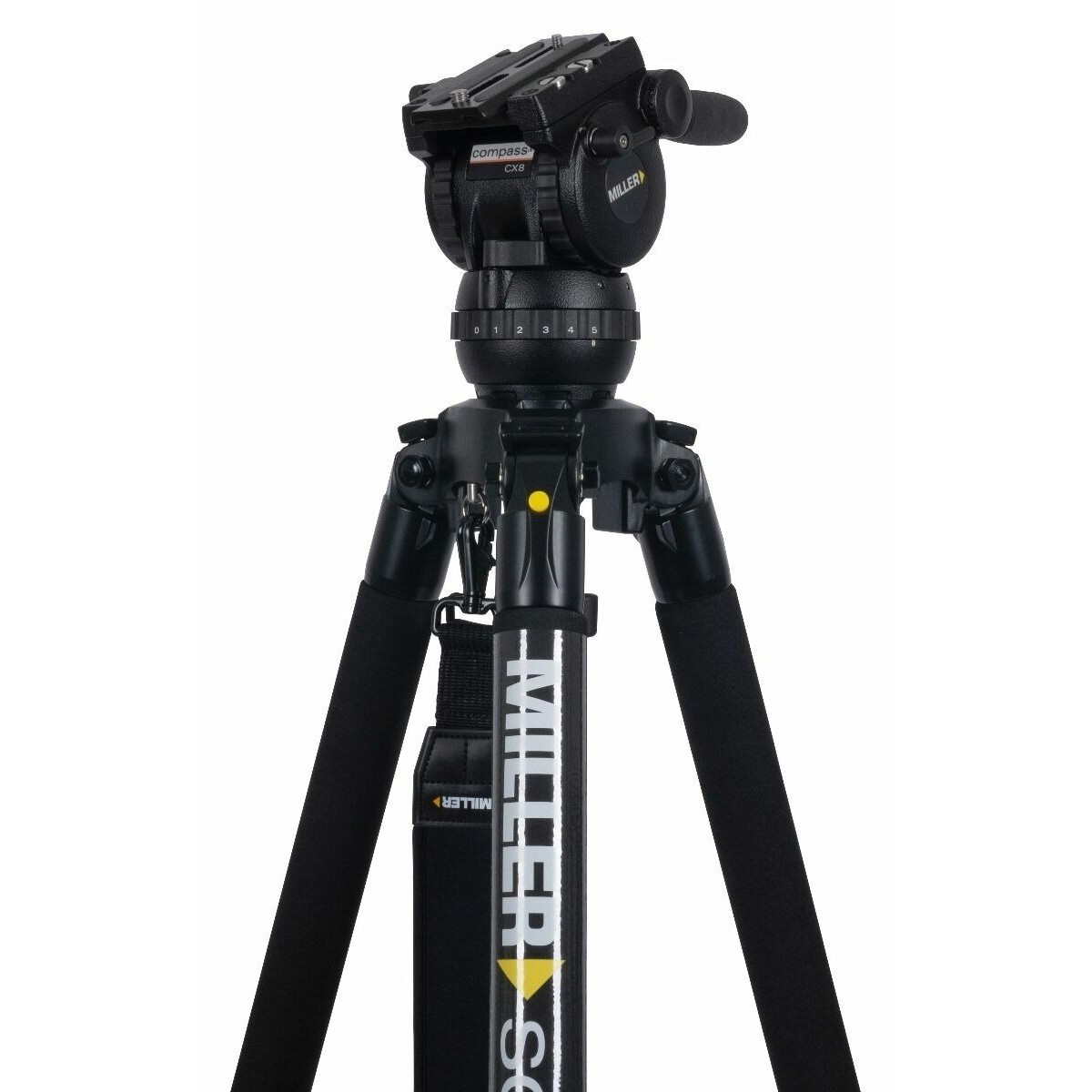

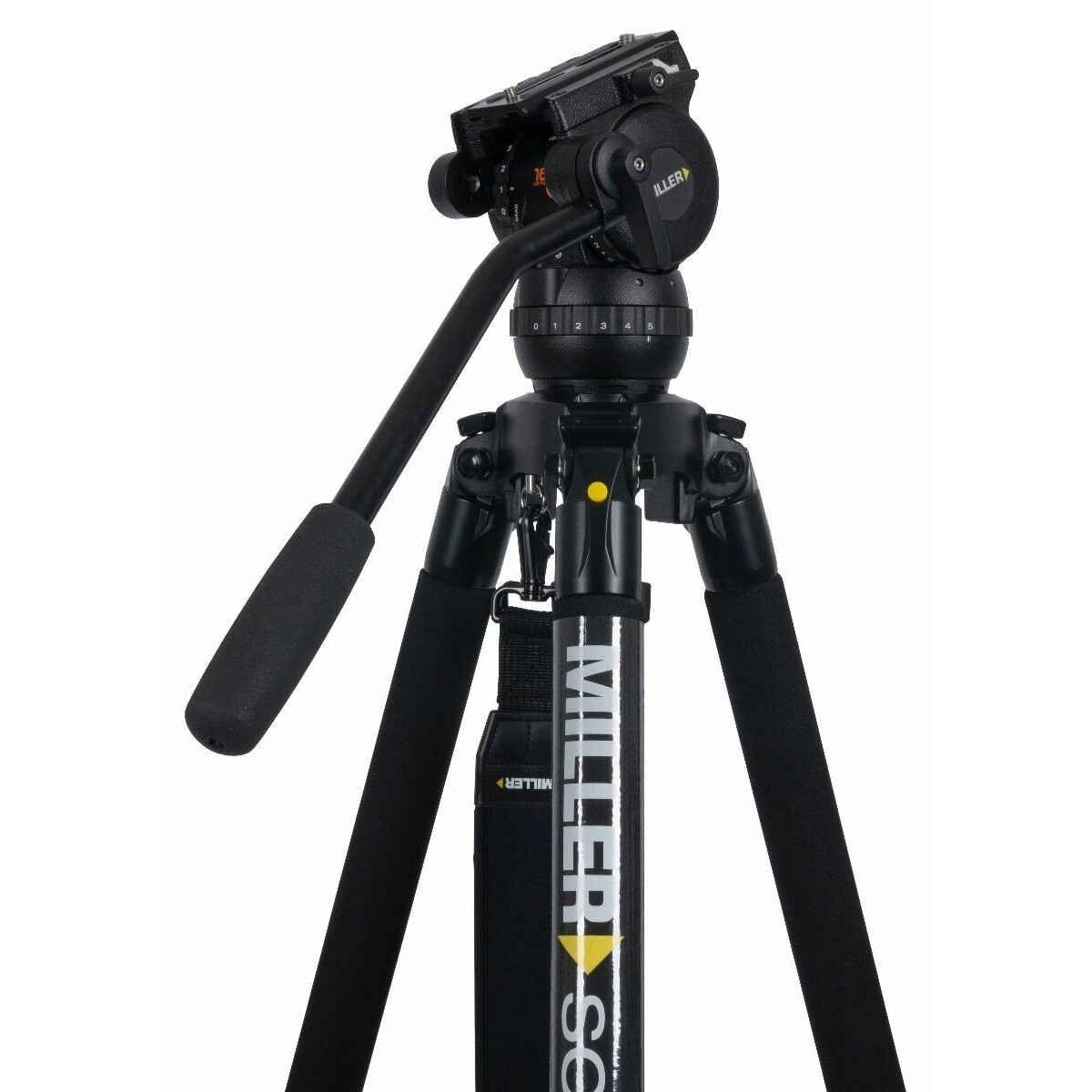

CX8 is the premium head in the 75mm ball levelling Compassx series. Designed for camera rigs from 0kg to 12kg, with CB Plus™ 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.

The CX8 is matched with the 3 stage Solo-Q (carbon fibre) tripod that results in a range topping height range of408-2059mm (16-81"), rapid action twist locks on independent stages and the versatility of Q-Lock to set up the system across all terrains.

  • Compact, uncompromised performance.
  • 75mm ball levelling.
  • Perfect for payloads to 0-12kg (26.4bs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 5+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 3-stage rapid leg lock extension.
  • Q-Lock for rapid set-up and stowage.
  • Lightweight carbon fibre legs.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.

Payload Range 0-12kg (0-26.4lbs)
Weight 6.1kg (13.4lbs)
Height Range 408-2059mm (16.0-81.0")
Transport Length 832mm (32.8")
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4")
Mounting Base Ø75mm (2.9") ball levelling
Height Above Bowl 167mm (6.6")
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4")
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 3-stage telescopic
Lock Type Concentric Rapid Lock & Q-Lock
Leg Material Carbon fibre
Components
1093 CX8 fluid head
2505 Solo-Q 75 3-stage tripod (carbon fibre)
679 Pan handle - fixed with clamp
1520 Solo-Q shoulder strap (Aircell)

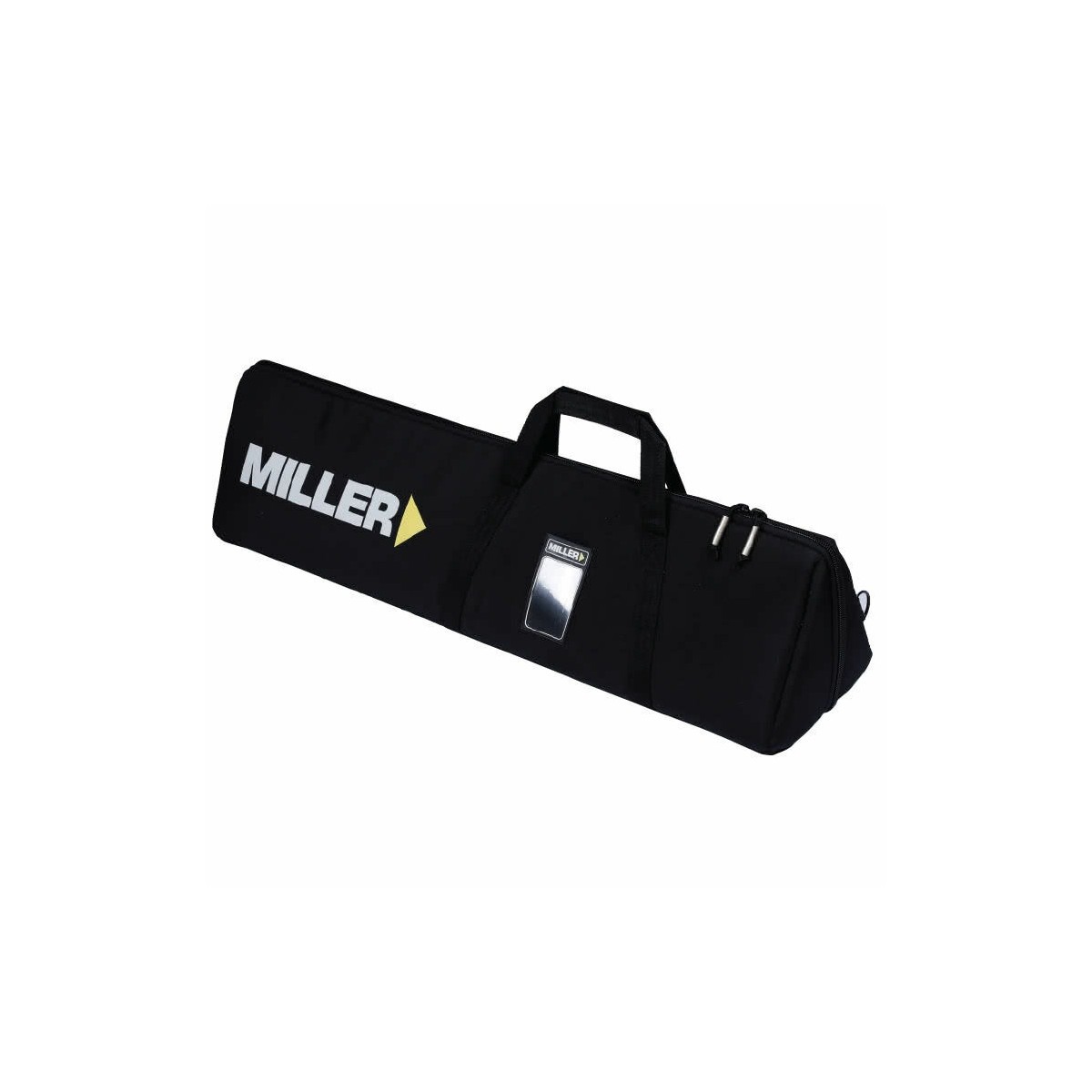

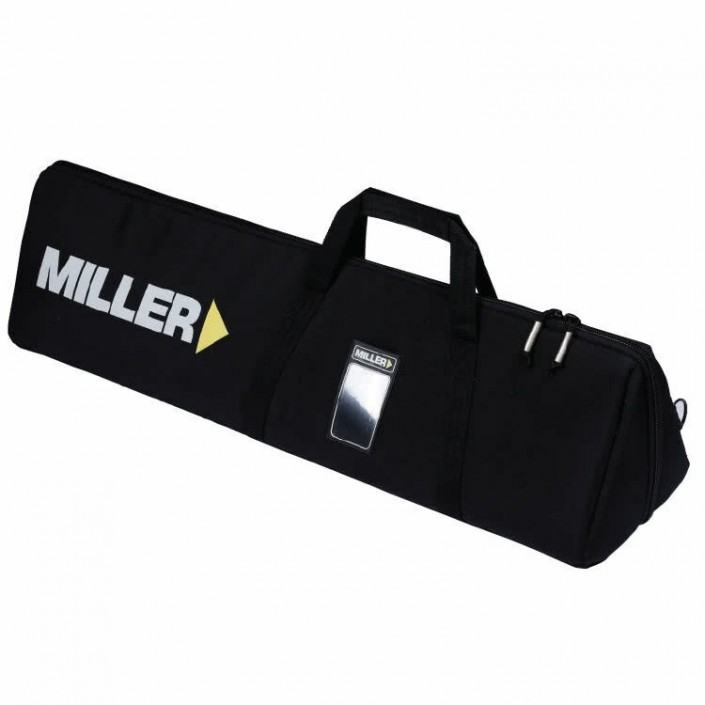

3514 Softcase 2-stage
Read moreShow less
Specifications
CAT3746
WEIGHT
6.1kg
MATERIAL
Carbon Fibre
OPERATING TEMPERATURE
-40° to +65°C
