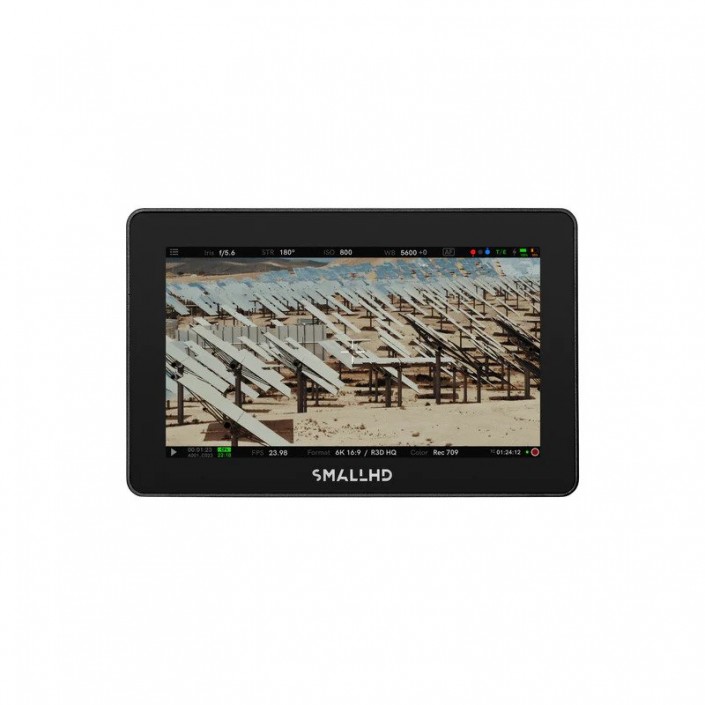

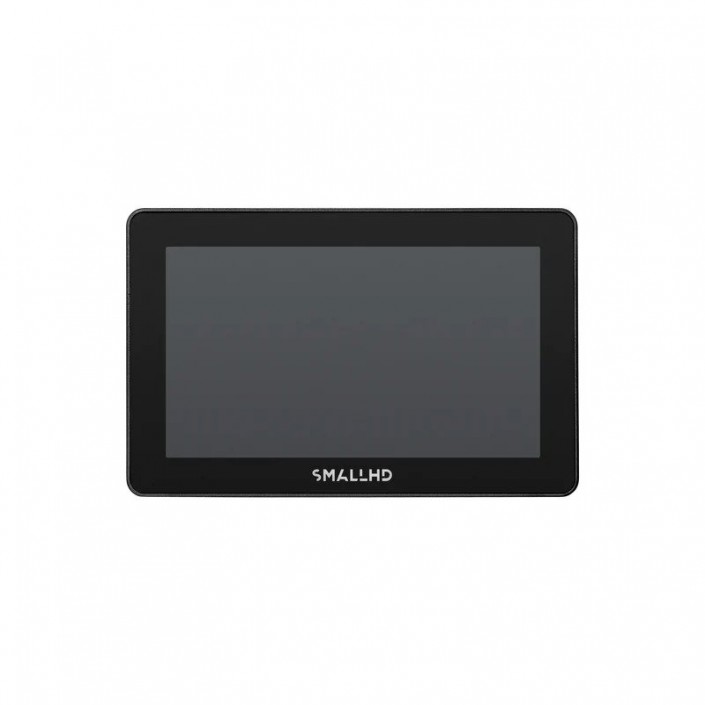

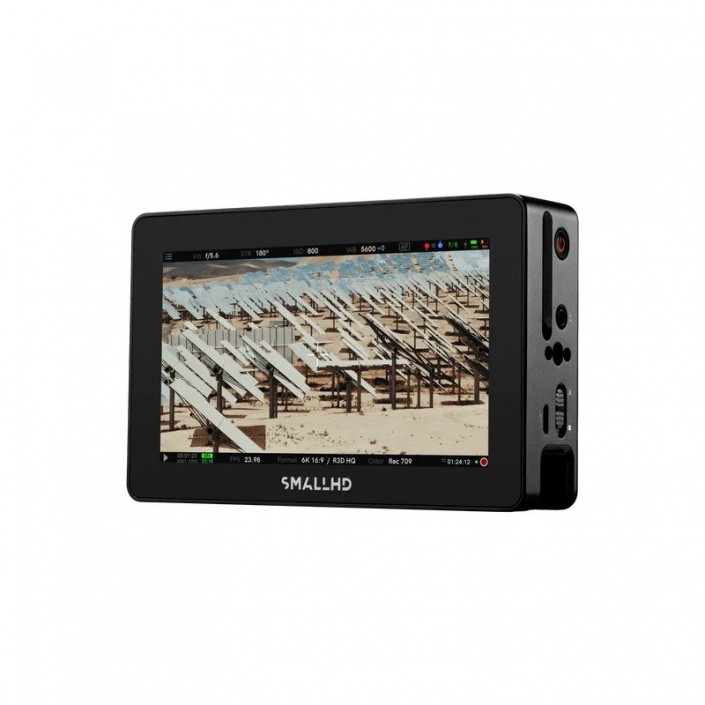

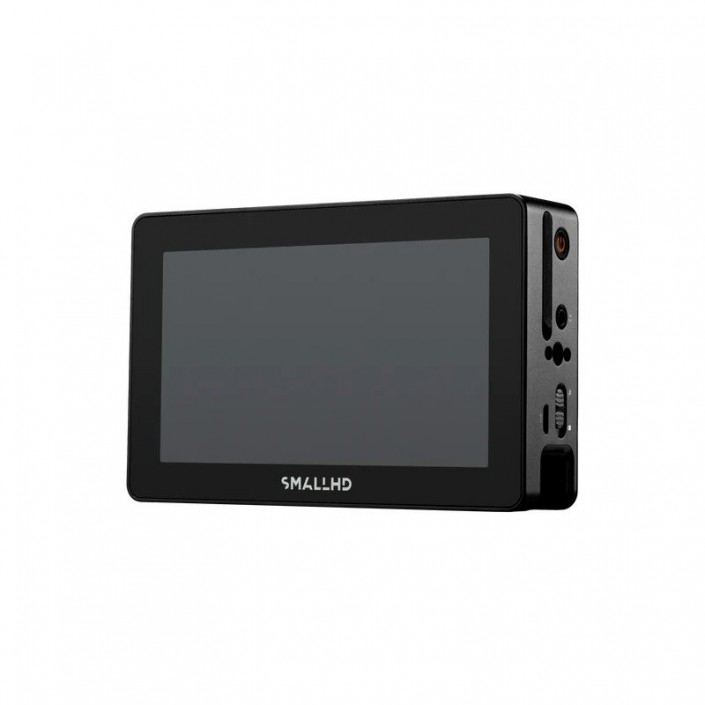

Cine 5 Touchscreen Camera Monitor

Cine 5 is lightweight, compact, and offers 2000nits brightness for full visibility even in direct sunlight. Optional camera-control functionality (software license and cable sold separately) allows users to start, stop, record, and more from the convenience of their Cine 5. Experience all your favorite PageOS 5 tools, functions, and settings pages on this field-ready 5-inch monitor.

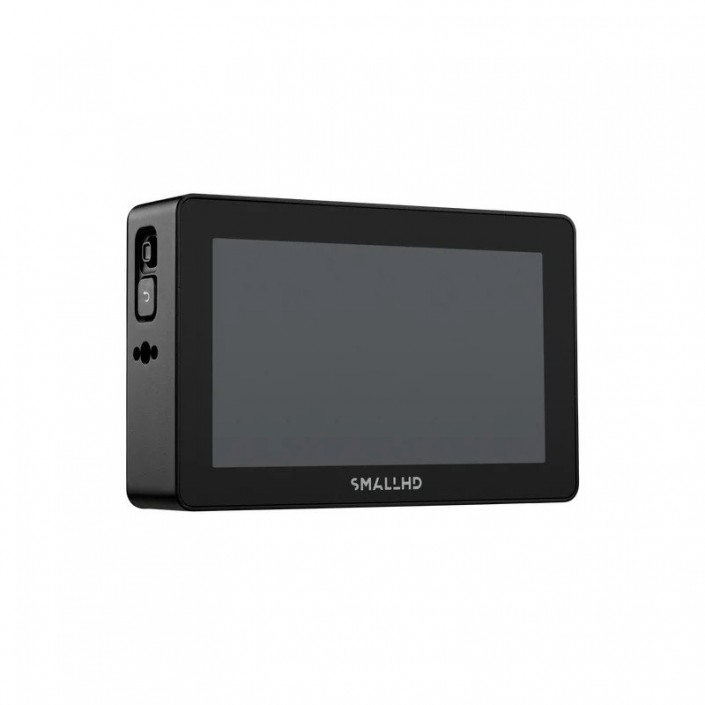

1080p resolution ensures a clear look at your production, while 10-bit color processing offers excellent color accuracy. The added joystick and back button allow you to use this smart monitor in nearly all conditions, even on cold days when taking off your gloves is not an option.

Cine 5 is designed for high-end camera use – with bright imagery, optional Camera Control, and 2-pin locking power input – making it ideal field monitor for First ACs, Camera Operators, and DPs.

Camera Control for RED® DSMC2® & RCP2™

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED DSMC2, KOMODO®, and V-RAPTOR™ camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Additional Camera Control compatibility coming soon.

Item Weight (oz)

14.7

Height (in)

3.39

Width (in)

5.28

Length/Depth (in)

1.52

Mount Points

6x 1/4-20 Mounting Points

Display

Panel Type

Touch-Screen

Resolution

1920 x 1080

Aspect Ratio

16:9

Max Brightness

2000nits

Backlight Type

Edgelit

Input Signal

3G-SDI Input Types

YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Input Types

YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types

YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types

YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types

HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

3G-SDI Output Types

YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Output Types

YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types

YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types

YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Output Types

HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

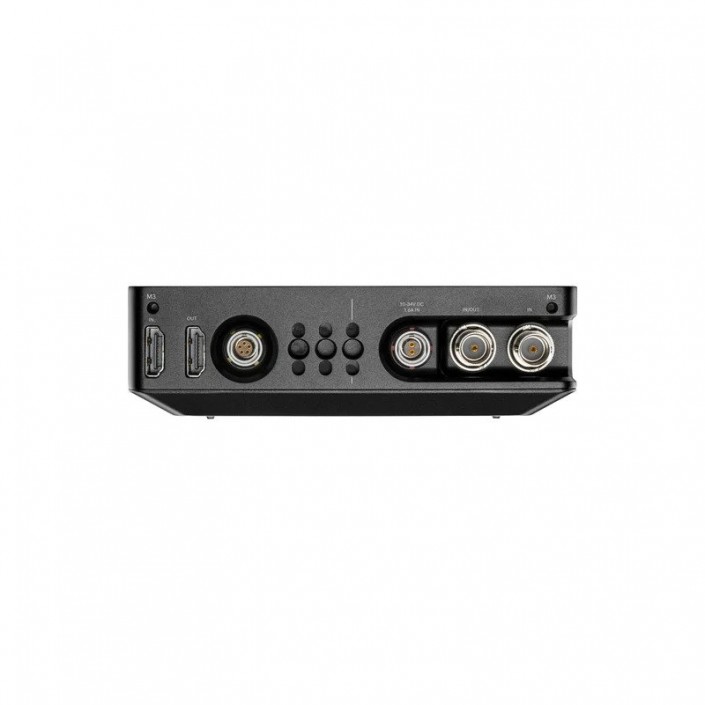

Connector Type

SDI

1x 3G-SDI (In), 1x 3G-SDI (In/Out)

HDMI

1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]

Audio

1x 3.5mm Stereo Headphone Jack

Data I/O

Storage Media

1x SD Card Slot

USB

1x Micro USB 1x Locking USB

Power

Input

2-pin Locking Power Input (10-34V DC, 1.6A)

Software

Pixel Zoom

Yes

Focus Assist

Yes

Peaking

Yes

False Color

Customizable False Color Overlays

Waveform

Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)

Custom LUTS

17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
